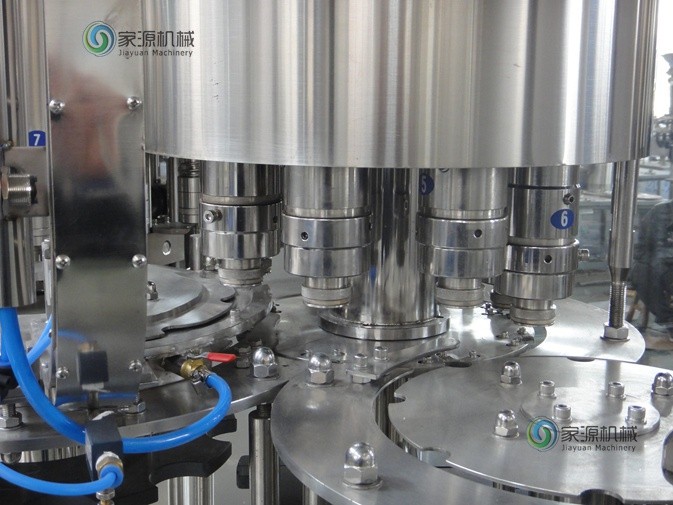

500ml Carbonated Drink Filling Machine Soda Bottle Filing Machine 4 In 1 Monoblock

 500ml Carbonated Drink Filling Machine Soda Bottle Filing Machine 4 In 1 Monoblock

Quick Detail:

1. Capacity: 12000 BPH@500ml bottle
2. Fully automatic, no bottle no filling, no cap machine will stop.
3. Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock
4. CE, ISO certificate
5. Customizable
6. Designed power supply: AC/380V/50HZ/3PHASE

Automatic 12000BPH SUS304/316 4-in-1 DCGF32-32-32-10 soda water filling machine

Introduction of 4-in-1 DCGF32-32-32-10 soda water filling machine

This DCGF Carbonated beverage wash-filling-sealing 4-in-1 filling machine used to produce PET bottled carbonated beverages (soda) production, such as Cola, Fanta, Sprite and soda water.

Soda water filling machine Characteristics:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. The cylinder drive the valve the movements is accurate and reliable. High-throughput, high-precision filling valve, filling fast and accurate. Equipped the CIP a loop and control procedure, the equipment is easy to clean.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Using the programmable controller as control centers; using pressure transmitter, electromagnetic measurement to maintain the balance of liquid surface so as to ensure the stability of liquid.
7. New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
8. The soda water filling machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.

Application

This DCGF Carbonated beverage wash-filling-sealing 4-in-1 filling machine used to produce PET bottled carbonated beverages (soda) production, such as

1. Cola
2. Fanta
3. Sprite
4. Soda water, carbonated juice etc.

Specifications:

Competitive Advantage:

1. New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
2. The beverage filling machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.
3. Adopt the bottle neck clamping technology, do not need to change the height of the bottle, just change the parts which are relevant to the bottle diameter, such as arc guide plate, poking wheel etc.
4. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
5. Double washing machine can make the bottle be well cleaned.
6. Equipped with perfect CIP control loop and program and cleaning devices on the spot.
7. It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel.
8. Adopting diaphragm adjust valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
9. It is not necessary to adjust the input height for exchanging bottle model.
10. Perfect protection system to overload.
11. Air control components are all adopted with SMC products made in Japan.
