10000BPH Bottle Water Production Machine , 500ml Drinking Water Filling Machine

Home Products Water Bottle Filling Machine

10000BPH Bottle Water Production Machine , 500ml Drinking Water Filling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE
Model Number:	CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	45 working days
Supply Ability:	60 sets per year

Contact Now

Detailed Product Description

Product Name:	Water Filling Machine	Filling Heads:	24
Filling Capacity:	8000-10000BPH(500ml)	Suitable Bottle:	200-2000ml
Control:	PLC+Touch Sreen	Testing Video:	Provided
High Light:	10000BPH bottle water production machine , 500ml bottle water production machine , PLC drinking water filling machine

Water Bottle Filling Machine,Turnkey Complete Bottle Water Production Line

Bottled water plant machinery:

1. (Making bottles) Automatic bottle blowing machine or Semi automatic bottle blowing machine.

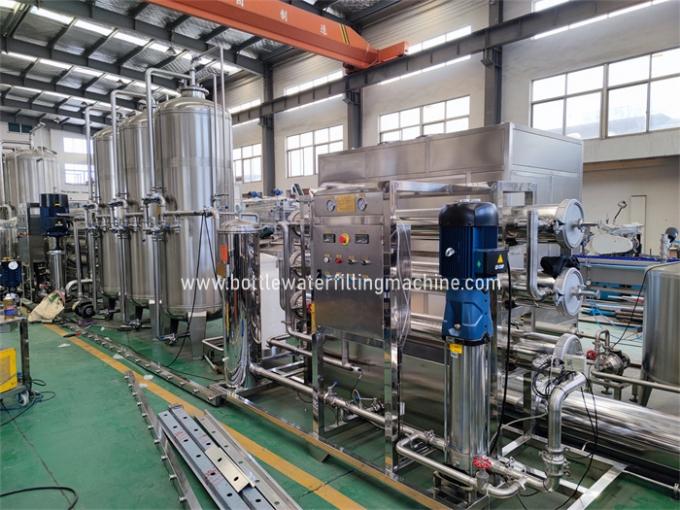

2. (Water purification System) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into the bottle) Bottle washing filling and capping machine.

4. (Printing the date on the bottled water) CO2 laser date printing machine.
5. (Labeling bottled water) Shrink sleeve labeling machine or Sticker labeling machine.
6. (Package the bottled water) Automatic PE film shrink wrapping packing machine or Semi automatic PE film shrink wrapping packing machine / Carton box packing machine.

10000BPH Bottle Water Production Machine , 500ml Drinking Water Filling Machine 0

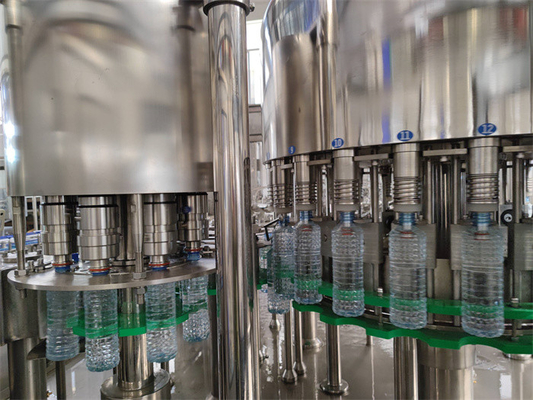

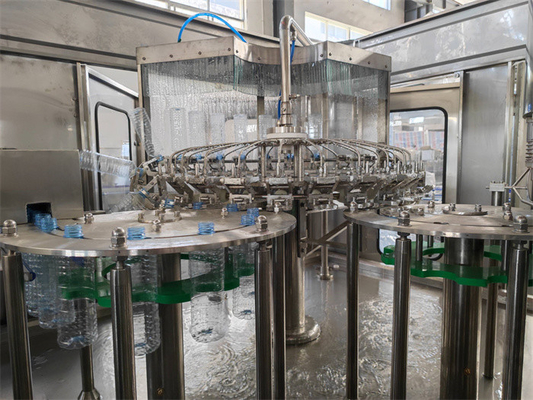

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral

water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery

can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders

touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled

Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle

wash, fill and seal are composed in one body of the machine. The whole process is automatic.

Automatic water filling production line

Model	XGF14-12-5	XGF16-16-5	XGF24-24-8	XGF32-32-8
Capacity	5000BPH	8000BPH	12000BPH	15000BPH
Bottle Volume	200ml-2500ml	200ml-2500ml	200ml-2500ml	200ml-2500ml
Bottle diameater	50-110mm	50-110mm	50-110mm	50-110mm
Bottle high	150-320mm	150-320mm	150-320mm	150-320mm
Machine power	1.5KW	2.2KW	3.7KW	5.5KW
Machine size	235x177x225CM	270x200x225CM	280x210x225CM	355x265x225CM
