Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | CHINA |
Brand Name: | JIAYUAN |
Certification: | CE |
Model Number: | CGF |
Minimum Order Quantity: | 1 set |
---|---|
Price: | please enquire |
Packaging Details: | standard wooden case |
Delivery Time: | 50 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 sets per year |
Product: | Water Filling Machine | Filling Material: | Water, Juict, Still Beverage |
---|---|---|---|
Filling Bottle: | 250-2000ml | Bottle Shape:: | Round Or Square |
Filling Way: | Gravity Or Micro Pressure Filling | Capacity: | 6000BPH For 500ml |
High Light: | 6000BPH Water Bottle Filling Machine,micro pressure Water Bottle Filling Machine,6000BPH automatic water bottling machine |

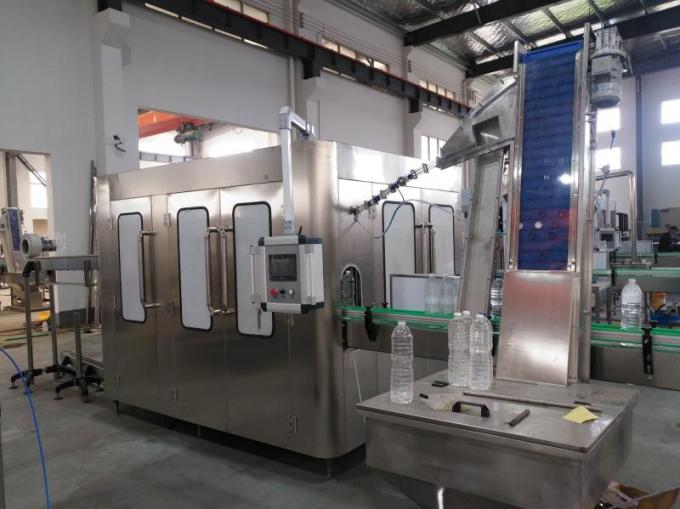

PET Bottled Water Filling Machine / Production Plant/ Packing Machine
Characteristic:
1. The automatic bottled water filling machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. The bottle handling technical also make the different bottle changing easily without changing too many accessories.
2. This machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.
3. The advanced normal pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.
4. This machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. The sealing cap force can be adjusted.
5. Independent electricity box makes sure every electrical appliance works normally.
Flow Chart:
A. PET Preforms →Heat preform → Stretch → Blowing → Bottles
B. Stainless steel multistage centrifugal Pump→ Multiple medium filter→ Active carbon filter→Sodium exchange→ Micro filter→ Reverse osmosis→ Ozone generator→ Water tank→ Water Pump
C. Air conveyor→ 3-in-1 Washing Filling Capping Machine→Lamp checker→ Conveyor→ Dryer→Labeling machine→ Ink jet code printer→ Shrink packing machine→ Stock
WHAT IS THE DETAILS OF OUR WATER BOTTLING MACHINE | |
Model | CGF |
Rated capacity | 2000-30000BPH |
Suitable bottle size | 250-2000ml |
Speed | adjustable |
Filling Liquid | PURE WATER; MINERAL WATER; SPRING WATER |
Filling Container Type | PET Bottle; Max Diameter 108mm, Max Height 310mm |
Filling Type | Neck-hold conveyor , Gravity filling |
Cap | Plastic Screw Cap, Sport Cap, Crown Cap...Ect |
Filling Temperature | Room Temperature |
Label Material | PVC Sleeve Shrink Label ; Adhesive Label; OPP Label |
Wrap Film Material | PE / PET |
Conveyor Mode l | Empty Bottle:Air Conveyor Full Bottle:Conveyor Belt |
Factory Condition | Temperature:10~40℃ Humidity:no dew(≤95%) |
Resource Voltage | According Customer ' s Factory Voltage Design. |
Efficiency | > 9 5 % |
Control | PLC+HMI |
Voltage | 380V 50HZ 3Phases or customized |
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.zjgjyjx.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
