4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine

4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine

    • 4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine
    • 4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine
    • 4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine
    • 4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine
  • 4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE ISO
    Model Number: BDCGF32-32-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: please inquire
    Packaging Details: standard wooden case
    Delivery Time: 40 working days
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Glass Bottle Filling Machine Function: Rinser Filler Capper
    Filling Product: Beer, Carbonated Drink, Energy Drink Filling Valves: 32
    Capacity: 4000-8000 Bottles/hr Bottle Size: 200-2000ml
    High Light:

    4000BPH bottle rinsing machine

    ,

    200ml bottle rinsing machine

    ,

    200ml rinsing filling capping machine

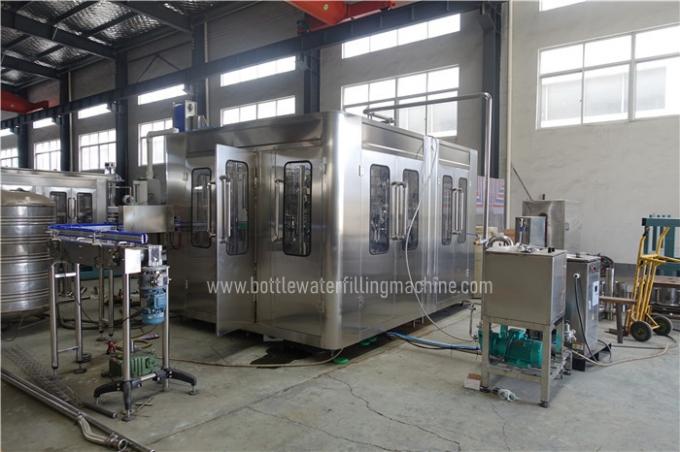

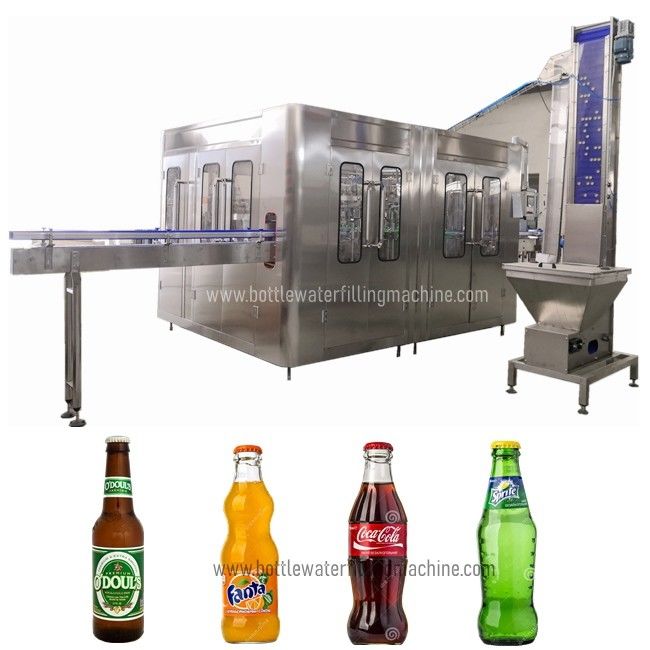

    Glass Bottle Beer / Carbonated Drink Filling Machine, Monoblock Filler And Capper



    This machine combined rinser filler capper in one unit, used to produce all carbonated drink, like cola, soft drink, soda, energy driBeer Bottling Plant, Soft Drink Making Machines, Glass Bottle Carbonated Filling Machinenk, fizzy drink, sparkling water, also can produce beer.

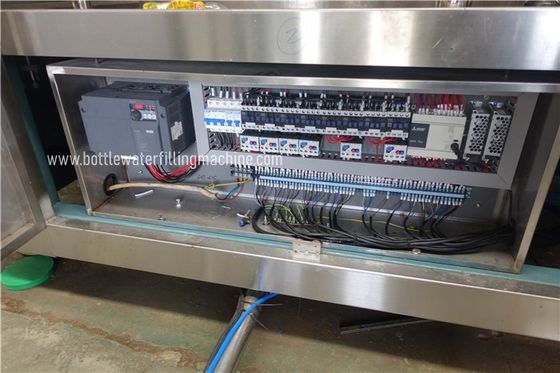

    It can work different size bottle, from 200ml to 2000ml, the available capacity is from 1000 bottles per hour to 20000BPH, controlled by PLC, frequency inverter, touch screen, easy to operate.

    4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine 0

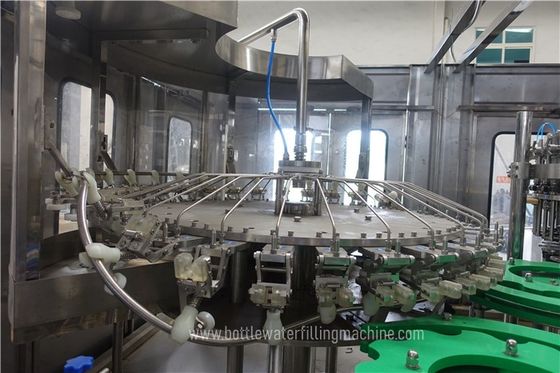

    Rinsing station:
    Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation, bottle clipping, bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

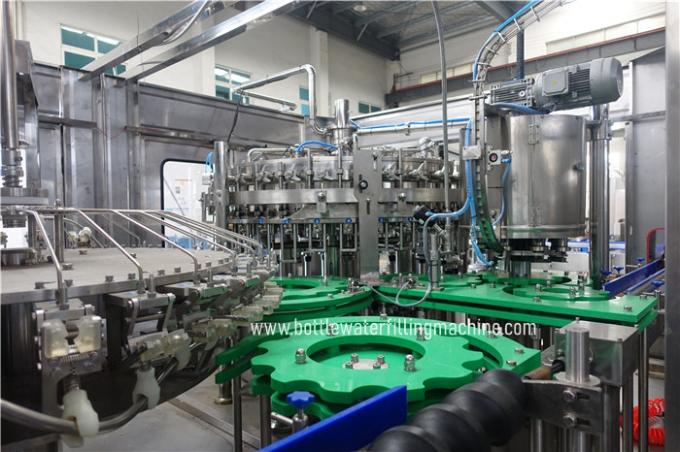

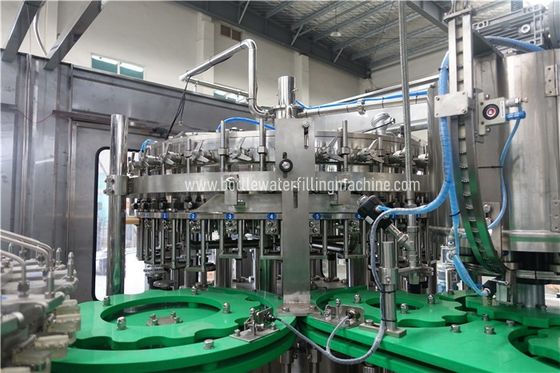

    Filling station:
    Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.
    Capping station:
    This series of automatic glass bottle gas beverage filling machine can meet the filling and sealing requirements of caps, nuts and other different sealing methods.
    Adopt magnetic head, transfer torque through strong magnet, adjustable torque, meet the needs of various head.

    4000BPH 200ml Rotatory Bottle Rinsing Filling Capping Machine 1
    Techinical parameter
    Model
    BDCGF32-32-8
    Capacity
    5000-10000BPH
    Washing Heads
    32
    Filling Heads
    32
    Capping Heads
    8
    Filling Prepacity
    —5mm<=+5mm
    Diameter of Bottle
    55-100mm
    Height of Bottle
    150-310mm
    Weight
    8000kg
    Main Motor Power
    5.7w
    Overall dimension(mm)
    5460*2520*2650

    OUR ADVANTAGE

    We offer professional turnkey project from design till done of the whole project.

    1.Project consultation

    2.Design

    3.Factory building

    4.Installation

    5.Commissioning

    6.Training





    Design Ability All the machines designed by CAD
    Manufacturing Ability Mechanical parts: high quality stainless steel, processed by CNC
    Reliability Electrical parts from world famous suppliers
    Professional

    Focus on beverage and cosmetics packing machines

    Exported to over 20 countries with good reputation

    6 years Alibaba Golden supplier without complaint

    Good Service: Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.
    Profession on Export: Authorized export licence.
