Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE SGS ISO |
| Model Number: | RCGF50-50-15 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $15,000 - 1,000,000 / Set |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30 Working Days |
| Supply Ability: | 15 Set/Sets per Month |
| Packaging Type: | Plastic Bottle / PET Bottle | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Voltage: | 380V/50HZ |
| Processing Types: | Water | Warranty: | One Year For Free |
| Capacity: | 24000BPH | ||
| High Light: | 50 Heads Bottled Water Making Machine,SUS304 Bottled Water Making Machine,SUS304 Water Bottle Filling machine |
||
Instruction
Machine Frame
The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated, the machine frame is wrapped with stainless stell SUS304.
Driving system of the 3-in-1 unit is positioned under the machine talbe. One main motor provides driving porwer via gear transmission.
The gear transmission system is an interleaved arrangement of stell gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.
PLC electrical control system controls the fully automatic operation of the monobloc.
| Model | RCGF50-50-15 |
| Filling Material | Water,or juice |
| Bottle volume | 200-2000ml |
| Capacity | 24000BPH for 0.5L bottles |
| Washing heads quantity | 50 pieces |
| Filling heads quantity | 50 pieces |
| Capping heads quantity | 15 pieces |
| Filling temperature | Normal temperature or hot filling |
| Machine material | Stainless steel 304 |
| Power | 12kw |
| Weight | 1500kg |
| Dimension(L*W*H) | 7500*3900*2400mm |
1. The suspending bottle-neck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of different types of bottles easily.

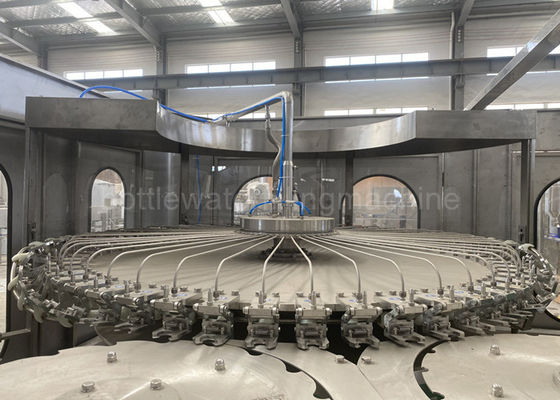

2. The new generation of stainless steel grab is adopted and the grabs have no contact with the arew above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

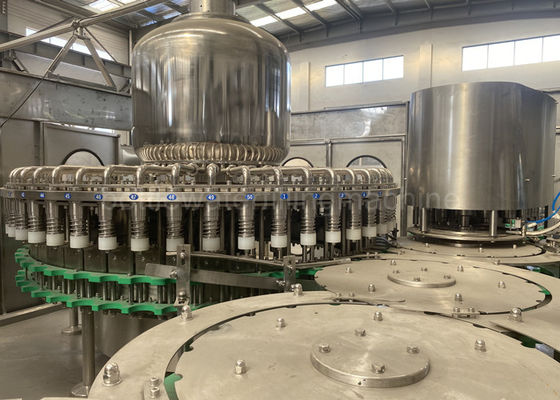

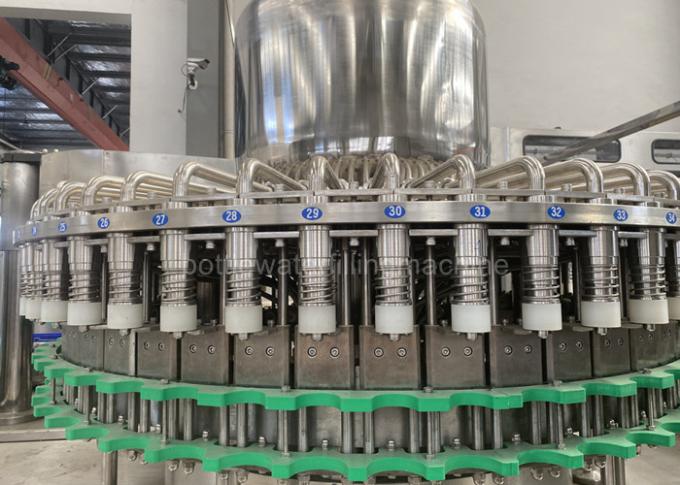

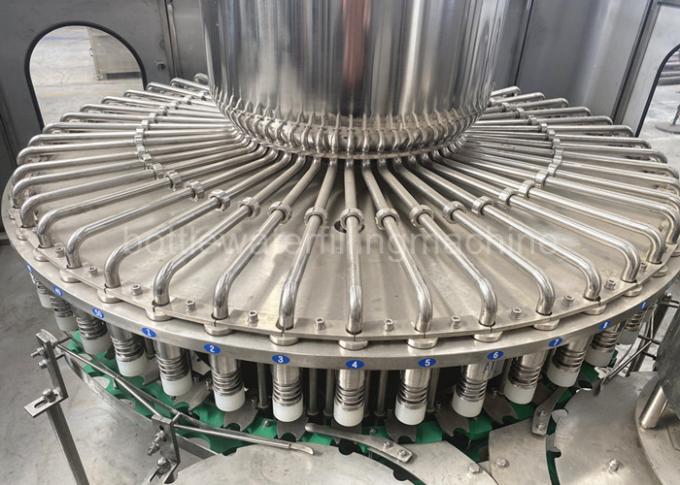

3. The advanced gravity filling technology used in this machine makes the filler quick,steady and accurate.
4. Magnetic torque is used for screw capping,and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.
5. Advanced technologies,such as human-machine interface touch-screen and PLC program control are adopted in this machine.
6. All parts that directly contacting with water are made of high stainless steel. The critical electrical components are from famous international companies, such as mitsubishi, omron and other famous brands.
