Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JIAYUAN |
| Certification: | CE,ISO,SGS |
| Model Number: | DGCF16-12-6 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | US $30,000 - 560,000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 working days |
| Supply Ability: | 10 Set/Sets per Month |
| Automatic Grade: | Automatic | Driven Type: | Electric |
|---|---|---|---|
| Power: | 5.03kw | Dimension(L*W*H): | 2450*1800*2200mm |
| After-sales Service Provided: | Overseas Service Center Available | Filling Capacity: | 2000BPH |
| Processing Types: | Beer,soda Water,carbonated Drink | ||
| High Light: | CSD beer filling capping machine,2000BPH beer can filler machine,250ml beer bottle filling machine |
||
General Description
We provide series of carbonated drink filling machine, CSD filling machine for the carbonated soft drink plant, cola filling machine, carbonated beverage filling machine.
1. Material:The material which contact direc carbonated soft drinks directly with the liquid is the SUS304 (Food grade), made in China.
2. This machine is maily for filling carbonated beverage, like Feda, sprite, coca cola, mineral water/pure water/soda water with gas, juice with gas and so on.

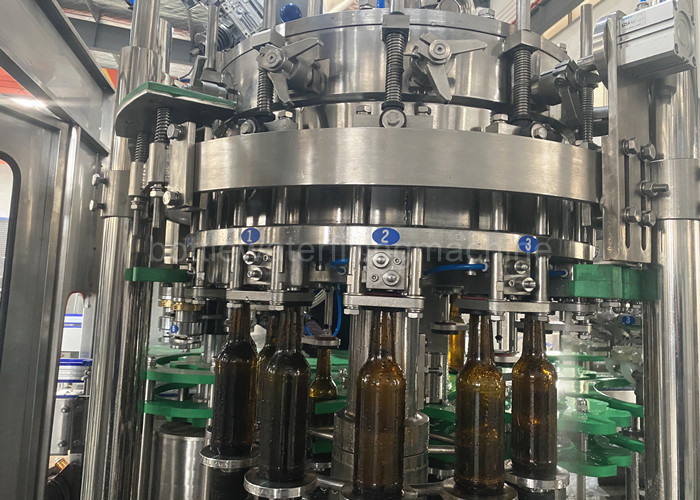

| 250ml Glass Bottle Beer Filling Capping Machine , Gas Cold Drink Bottle Filling Machine | Cola, Carbonated beverage,beer,soda water | |||
| Material | Shape | Filling volume | Filling level(mm) | Neck type |
| Glass Bottle |
Round Bottle/ Square bottle |
100ml-2L | Distance from bottle neck Customized |
Customized |
| Adjustable specifications of the bottle type | Middle mould base: Bottle diameter ≤105mm; Bottle height≤310mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added. |
||||
| Carbonated Drink Preparation | Syrup melting machine, Blending mixing Machine, CO2 filter, CO2 mixer. | |||
Technique parameter:
| Model: | DGCF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-12 | ||
| Capacity :500ml | 2000 | 3000 | 8000 | 12000 | ||
| Bottle shape: | roud or square | |||||
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
| Cap: | Crown cap | |||||
| Filling precision: | ≤±5mm | |||||
| Filling pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | ||
| Rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | ||
| Filling volume :(L) | 3.5 | 4 | 6 | 8 | ||
| Overall size:(mm) | 2250*1800*2200 | 2450*1800*2200 | 2780*2200 *2350 |
3600*2650 *2350 |
3800*2950 *2400 |
|
| Weight: (kg) | 2500 | 3000 | 4000 | 5000 | 6000 | |
Machine Structure
A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens.
D. These series carbonated drink filling machine can handle max 3 liter pet bottle.Welcome to inspect beverage cold filling machine in our factory.
We can provide beverage filling line as below:
1. Complete pure/mineral water production line
2. Complete pure/mineral water treatment machine
3. Complete juice production line
4. Complete carbonated beverage production line
5. 5 Gallons drinking water production line.
6.End-of-line packaging system
We offer professional turnkey project from design till done of the whole project.
1.Project consultation
2.Design
3.Factory building
4.Installation
5.Commissioning
6.Training
