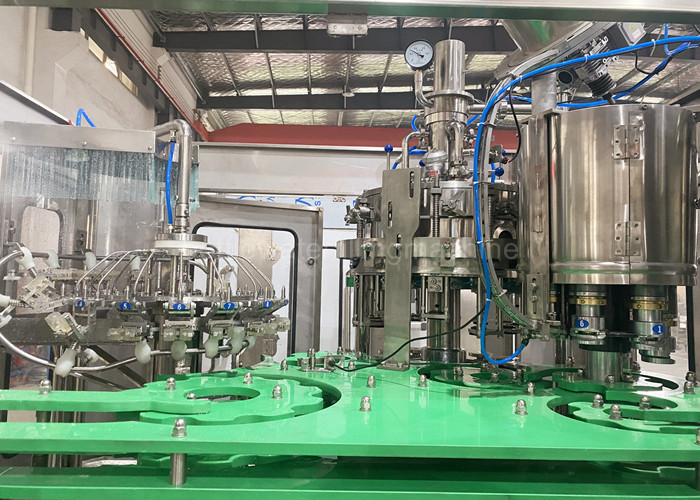

Glass Bottle Soda Filling Machine , Carbonated Drink Bottling Machine For Small Factory

Glass Bottle Soda Filling Machine , Carbonated Drink Bottling Machine For Small Factory

    • Glass Bottle Soda Filling Machine , Carbonated Drink Bottling Machine For Small Factory
    • Glass Bottle Soda Filling Machine , Carbonated Drink Bottling Machine For Small Factory
  • Glass Bottle Soda Filling Machine , Carbonated Drink Bottling Machine For Small Factory

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: DGCF16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 560,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Food Grade Stainless Steel 304 Automatic Grade: Automatic
    Driven Type: Electric Voltage: 380V 50HZ
    Dimension(L*W*H): 2750*2180*2200mm After-sales Service Provided: Overseas Service Center Available
    Warranty: One Year Control System: PLC Control
    Filling Type: Balanced Pressure Filling

    Glass Bottle Soda Filling Machine , Carbonated Drink Bottling Machine For Small Factory







    Application:

    Carbonated drink glass bottle filling equipment adopts bottle neck holding transmission technology to realize fully automatic bottle rinsing,filling and capping. It employs single cavity plunger type of fixing filling volume technique. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation etc.





    Features:

    1.Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)

    2.Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.

    3.Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.

    4.Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.

    5.Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.

    6.The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.



    Technique parameter:

    Model: DGCF16-12-6
    Capacity :500ml 2000BPH
    Bottle shape: round or square
    Glass bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
    Cap: Crown cap
    Filling precision: ≤±5mm
    Filling pressure:(Mpa) 0.15-0.35
    Rinsing pressure:(Mpa) 0.2-0.25
    Filling volume :(L) 3.5
    Overall size:(mm) 2450*1800*2200
    Weight: (kg) 3000



    Main Accessories

    Name Supplier
    PLC SIEMENS
    Touch Screen SIEMENS
    Transducer SIEMENS
    Air Switch,Circuit Breaker,Contacts SCHNEIDER
    Photoelectric Switch SCHNEIDER
    Proximity Switch SCHNEIDER
    Intermediate Relay SCHNEIDER





    CE Certification
