Automatic 500ml 20000CPH Tin Can Filling Sealing Machine

Automatic 500ml 20000CPH Tin Can Filling Sealing Machine

    • Automatic  500ml 20000CPH Tin Can Filling Sealing Machine
    • Automatic  500ml 20000CPH Tin Can Filling Sealing Machine
    • Automatic  500ml 20000CPH Tin Can Filling Sealing Machine
  • Automatic  500ml 20000CPH Tin Can Filling Sealing Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE ISO
    Model Number: GD18-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: please inquire
    Packaging Details: standard wooden case
    Delivery Time: 40 working days
    Supply Ability: 300 sets per year
    Contact Now
    Detailed Product Description
    Name: Beer Can Filler Seamer Filling Material: Beer, Carbonated Soft Drink
    Capacity: 500-20000 Cans/hr Control: PLC+Touch Screen
    Machine Material: Stainless Steel Power: 380V Or Customize
    High Light:

    500ml 20000CPH Tin Can Filling Machine

    ,

    500ml 20000CPH Tin Can SealingMachine

    ,

    Automatic 20000CPH Can Filling Sealing Machine

    Carbonated Drink Filling Machine, beer can filling machine, beer can seamer



    DESCRIPTION

    This is fully automatic can filling sealing machine, adopt isobaric filling technology, can fill beer and carbonated drink,

    like soft drink, soda water, energy drink and other carbonated drink.

    It can fill different size can, only need the diameter is same, no need to change any part.



    Advantage:

    Using the isobaric filling method.

    It's easy operating with high efficiency.

    All in one filling method design, the working is reliable.

    It made of SUS304 stainless steel

    The machine is special designed for medium capacity brewery and brew pubs







    MODEL
    BGF12/4
    BGF18/4
    BGF24/6
    BGF32/6
    Production Capacity(500ml)(c/h)
    1500-2000
    4000-6000
    9000
    14000
    Total Power(kw)
    1.5



    1.5
    3.7
    5.6
    Dimension(LxWxH)(mm)
    1700x1100x2300
    1830x1320x2300
    1950x1580x2500
    2100x1850x2500
    Total Weight(kg)
    2000
    2400
    3000
    3500



    MACHINE DETAILS

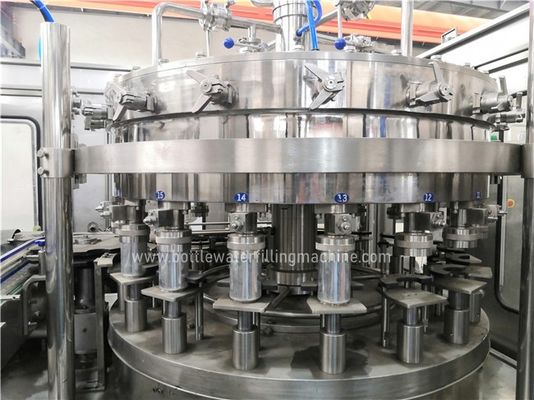

    Automatic  500ml 20000CPH Tin Can Filling Sealing Machine 0

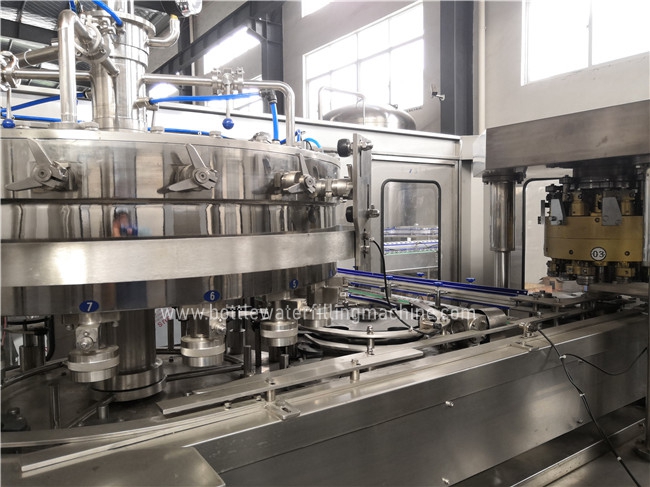

    Automatic  500ml 20000CPH Tin Can Filling Sealing Machine 1

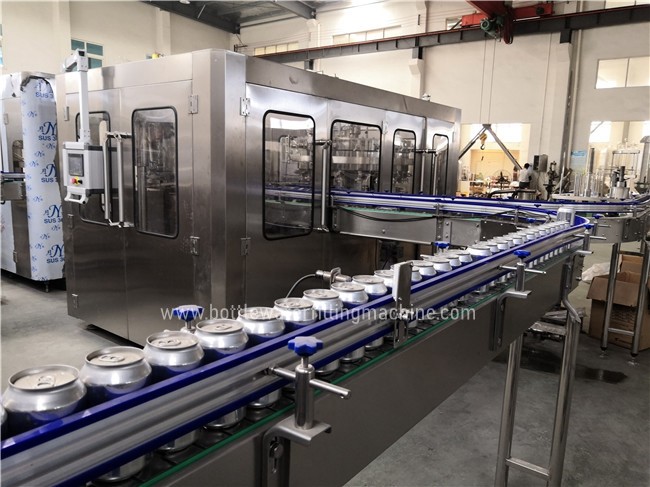

    Automatic  500ml 20000CPH Tin Can Filling Sealing Machine 2

    Final product

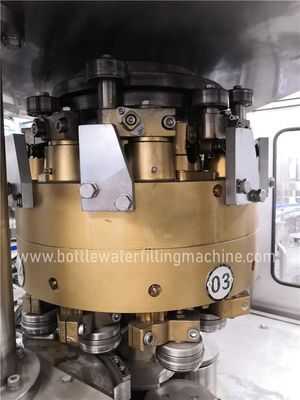

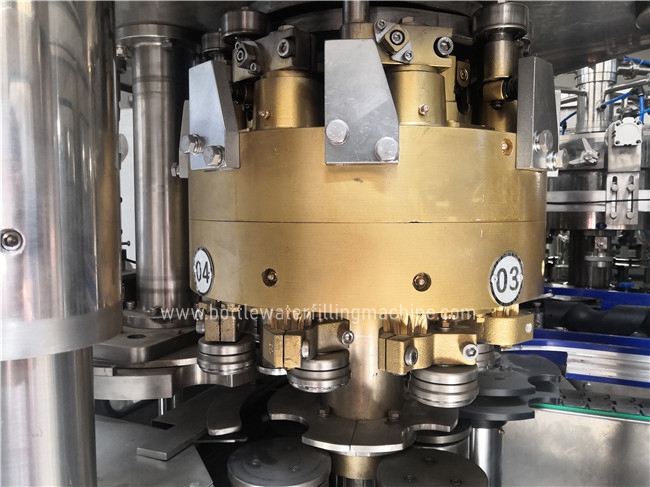

    Automatic  500ml 20000CPH Tin Can Filling Sealing Machine 3

    Why choose us?

    Q:How many years of experience in brewing equipment do you have?

    A: We have more than 10 years in beer filling equipment.

    Q: Where is your factory located?

    A: Our factory is located in Zhangjiagang city, 2 hours high speed train to Shanghai.

    Q: How could we confirm the details of the products?

    A: We will provide all the drawings for you to confirm before production.

    Q: How long the warranty will be?

    A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.

    Q: How about the installation?

    A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.

    Q: How do you guarantee the filling machine operation?

    A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
