Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | CHINA |
| Brand Name: | JIAYUAN |
| Certification: | CE ISO |
| Model Number: | CGF16-12-6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | please inquire |
| Packaging Details: | standard wooden case |
| Delivery Time: | 40 working days |
| Supply Ability: | 300 sets per year |
| Product Name: | Bottle Water Filling Machine | Function: | Rinser Filler Capper |
|---|---|---|---|
| Control: | PLC+touch Screen | Filling Capacity: | 1000-30000BPH |
| Machine Material: | Stainless Steel SUS34 | Warranty: | 1 Yeat |
| High Light: | 6000BPH plastic bottle filler,200ml monoblock bottling machine,200ml automated bottle filler |
||

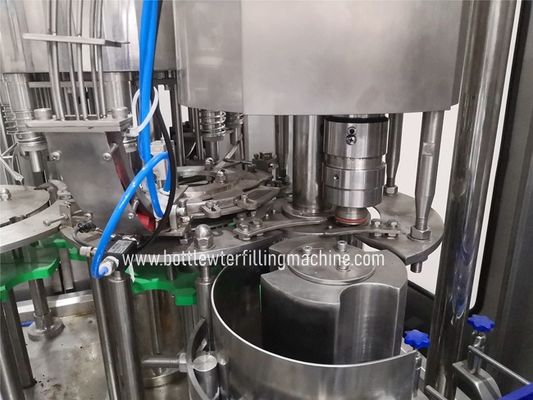

This washing filling capping 3 in 1 monoblock is a unique design combining the three parts of bottle washing, filling and capping in one. Washing filling capping 3 in 1 can decrease main power, save space and diminish the air pollution among three machines. The machine is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.The filling water machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.Each water bottle washing filling capping 3 in 1 machine element that contacts with the liquid is made of high quality Stainless steel 304, if needed,Stainless steel 316 is also available.The water bottle washing filling capping 3 in 1 machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system use famous international brand, for example,Mitsubish, Omron brand .The water bottle washing filling capping 3 in 1 machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The quality of the equipment reaches the advanced level of the world.8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.Easy to operate, save the cost for workers.

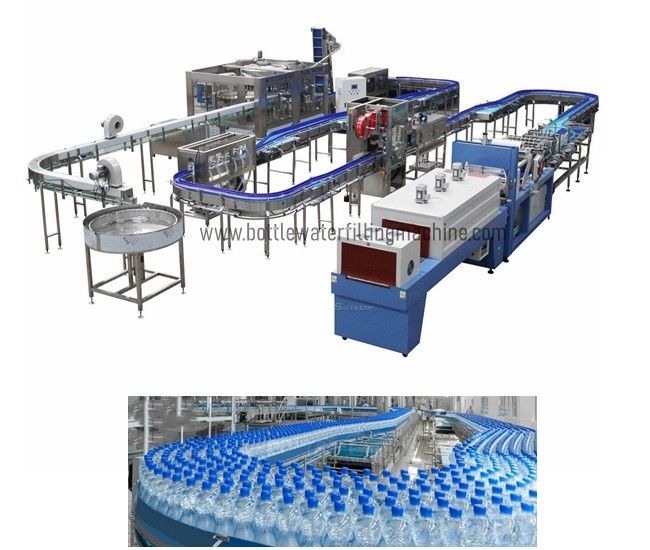

Filling machine 3 in 1 monoblock ( Washing filling capping) + Shrinking + Flim wrap around packing
|
Model |
CGF18-18-6 |
|
Washing head |
18 |
|
Filling head |
18 |
|
Capping head |
6 |
|
Production capacity |
6000BPH 200ml 000BPH 500ml 6500BPH 1500ml |
|
Air source pressure |
0.5-0.6MPa |
|
Rinsing water pressure |
0.15-0.2 MPa |
|
Bottle height |
150-340MM can be customized |
|
Bottle diameter |
Φ50-Φ110MM can be customized |
|
Filling way |
Gravity Filling, can be customized |
|
Power |
3 Phase, 380V/50Hz, 7.5KW |
|
Overall size |
4430*1900*2450 (L*W*H) mm |
|
2650*1900*2400 (L*W*H) mm |
3000Kg |
If you need this machine ,please contact to us ,
My tel/whatsapp/wechat :008613917675139, let's talk more details .
Filling machine 3 in 1 monoblock ( Washing filling capping) + Shrinking + Flim wrap around packing
|
Model |
YBQ40-40-12 |
|
Washing head |
40 |
|
Filling head |
40 |
|
Capping head |
12 |
|
Production capacity |
18000BPH 200ml 18000BPH 500ml 6500BPH 1500ml |
|
Air source pressure |
0.5-0.6MPa |
|
Rinsing water pressure |
0.15-0.2 MPa |
|
Bottle height |
150-340MM can be customized |
|
Bottle diameter |
Φ50-Φ110MM can be customized |
|
Filling way |
Gravity Filling, can be customized |
|
Power |
3 Phase, 380V/50Hz, 7.5KW |
|
Overall size |
4430*1900*2450 (L*W*H) mm |
|
2650*1900*2400 (L*W*H) mm |
6000Kg |
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
We make the price according to the capacity. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
After you place a order,the production handling time is about 30-45 days. We need 7 days to prepare all the stuff then 30 days for manufacturing.
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
