Soda Water Aluminum Can Carbonated Beverage Filling Machine

Soda Water Aluminum Can Carbonated Beverage Filling Machine

    • Soda Water Aluminum Can Carbonated Beverage Filling Machine
    • Soda Water Aluminum Can Carbonated Beverage Filling Machine
    • Soda Water Aluminum Can Carbonated Beverage Filling Machine
  • Soda Water Aluminum Can Carbonated Beverage Filling Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: DGF18-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $8,700-500,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 4000-6000 Cans Per Hour Can Type: Tin / Aluminum Can
    Filling Material: Carbonated Drink Function: Can Filling Sealing
    Color: Silver Gray Filling Pressure: Balanced Pressure
    High Light:

    Can Carbonated Beverage Filling Machine

    ,

    150ml Carbonated Beverage Filling Machine

    Carbonated Soda Water Aluminum Can Filling Machine , Beer Canning Machine,Soft Drink Can Filler

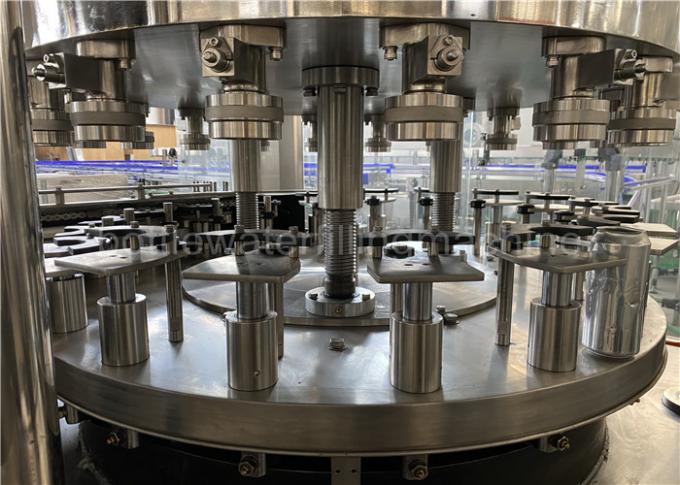

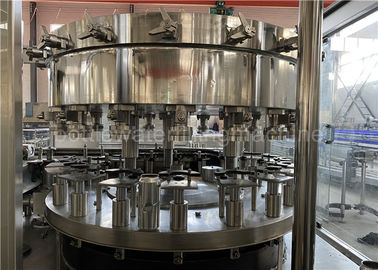

    Filling part

    1) Adopted Germany tech anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
    2) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
    3) The filling system can connect a CIP circulation system to wash the pipeline .This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.

    Soda Water Aluminum Can Carbonated Beverage Filling Machine 0

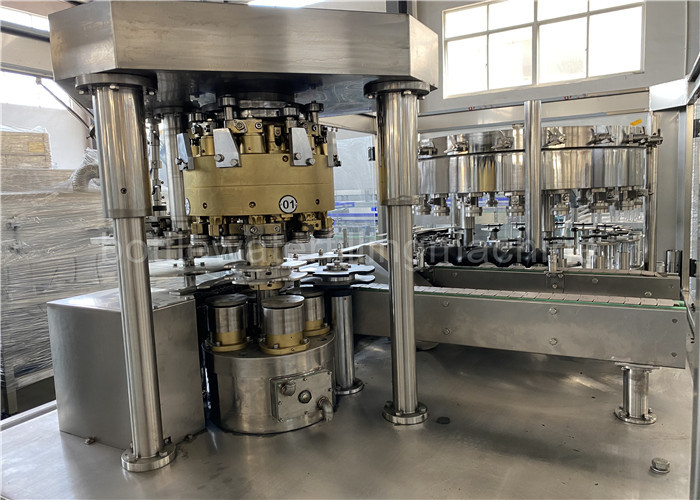

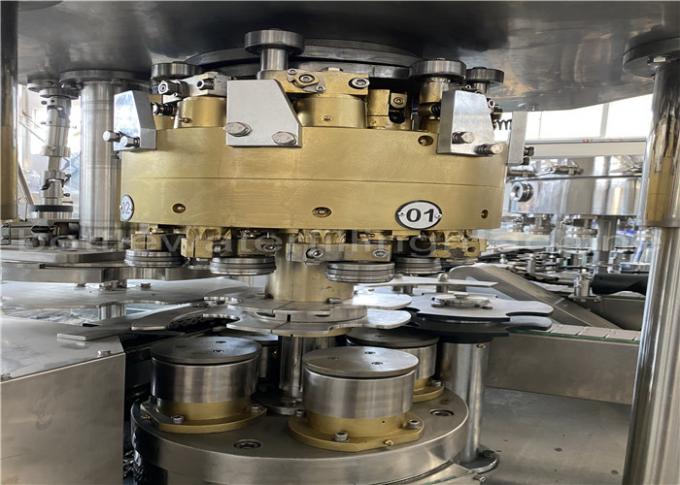

    Seaming part

    Soda Water Aluminum Can Carbonated Beverage Filling Machine 1

    1, Ingenious lid loading device to make sure no can, no lid loading, no sealing;
    2, Energy saving model, one motor can process all actions;
    3, Full sealing effect make sure to be suitable for liquid packing can;
    4, The machine suitable for all kinds of cans with same diameter, height can be adjusted easily;
    5, Twice sealing tech to make well sealing effect, no leakage;



    Technical parameters

    Model DGF18-4
    Capacity (can/Hour) 6000
    Suitable can size ( ml )

    150ml-500ml

    φ53-φ72.9mm

    height 65-190mm

    Can size 200/202/206/209
    Heads of filling 18
    Heads of sealing 4
    Filling way whole machine bottom lifting up, and normal pressure filling
    Filling temperature(℃ ) 65℃ -95℃ Normal temp or 65-95° C
    Power source specification AC380V/50HZ
    Power (kw) 3
    Overall dimension(mm) 2500x2000x2350
    Weight(kg) 3800
