Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line

Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line

    • Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line
    • Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line
    • Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line
    • Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line
    • Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line
  • Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Power: 3.8kw
    Power Supply: 380V/50HZ(adjustable) Automatic Grade: Fully-automatic
    Dimension(L*W*H): 3800*1300*1600MM Filling Bottle Size: 3-5gallen/3-19L
    Capacity: 300bottles Per Hour Processing Type: Water



    Complete 5 Gallon Filling Equipment / 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line







    Product Application

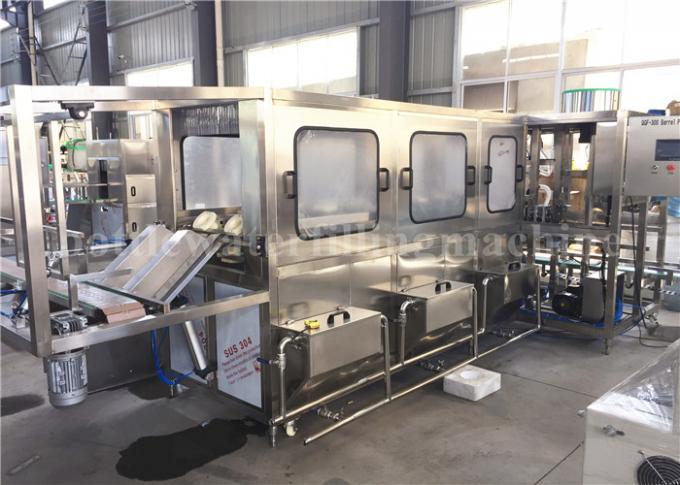

    5 gallon water filling machine is specialized for 5 gallon bottle water production. The whole machine include washing machine, filling machine and capping machine. It is ideal equipment for producing mineral water and pure water. The all machines are mainly made of SUS304 stainless steel. The main electric components are chosen from international famous brand, such as OMRON, MITSUBISHI and so on and air channel system are chosen from Taiwan AirTAC brand.



    Main Parts:

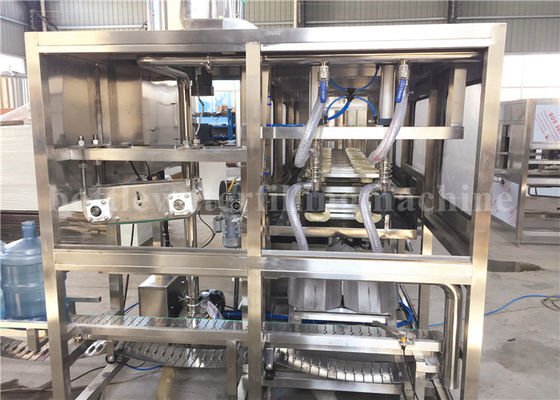

    It integrates bottle washer, filler and sealer into one unit.

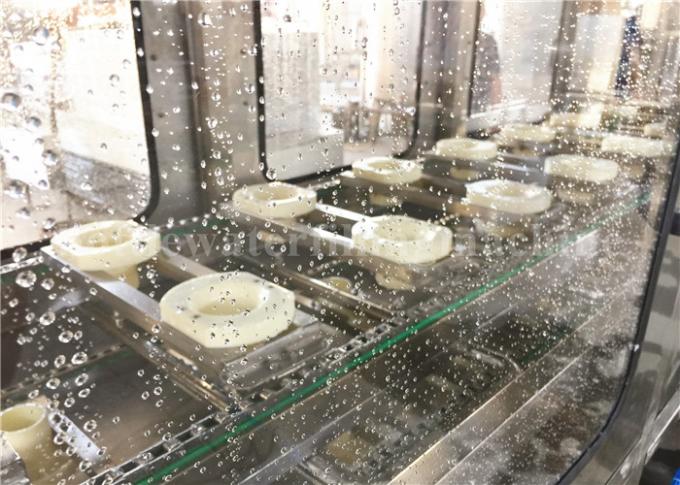

    In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. The sealer can seal barrel caps automatically.



    Healthy and safe production:

    This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging, It is a new kind of barreled water auto-producing line, Which integrates mechanism, electricity and pneumatics technologies together.



    You can click this below picture to see the video:
    Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line
    https://youtu.be/fFrnRsd0lNw


    Technical parameter

    Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
    Filling heads 1 2 3 4 6
    Volume 18.9 18.9 18.9 18.9 18.9
    Barrel size 270*490 270*490 270*490 270*490 270*490
    Capacity 150 300
    Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
    Gas consumption 0.37 0.6 0.8 1 1.2
    Motor power 1.75 3.8 3.8 7.5 9
    Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Weight 700 1200 1600 2000 3500
    Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

    4200*2300*1600

    2800*1000*1600



    Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line

    Complete 5 Gallon Water Filling Machine 300BPH Mineral Water Bottling Line

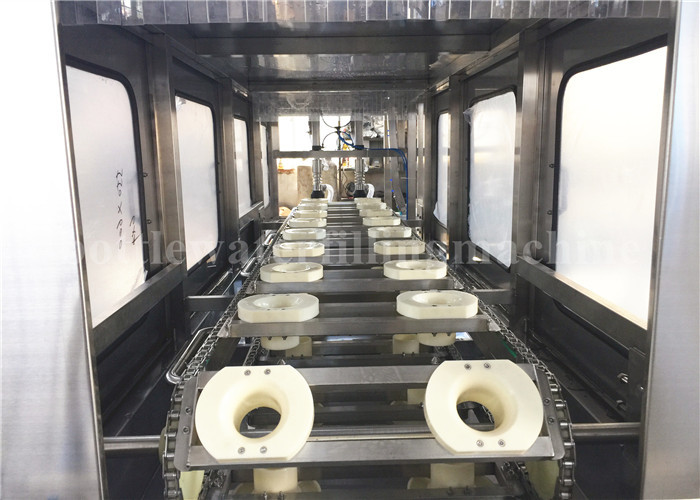

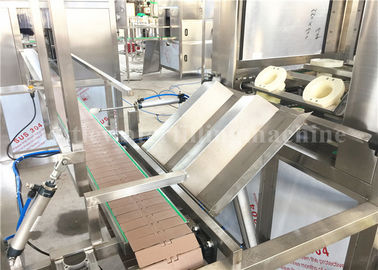

    the level of barrels. When out of the bucket, the level of the washed bucket falls on the bucket rack, and then turned into erected, and then pushed out of the bucket, to ensure that there is no drip dripping into the bottle in the process of pushing the bottle

    Main Features

    1) Our barreled water producing line is specially designed for 3-5 gallon drinking water;

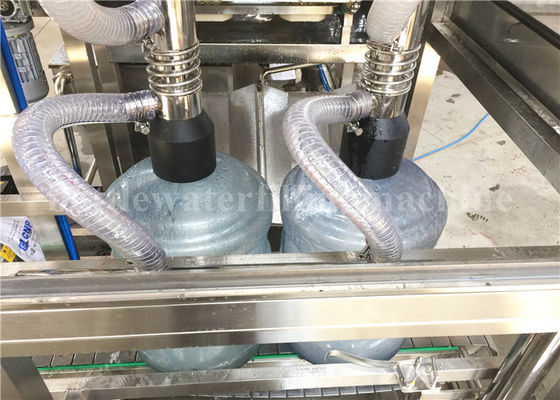

    2) The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;
    3) Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically
    4) In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;

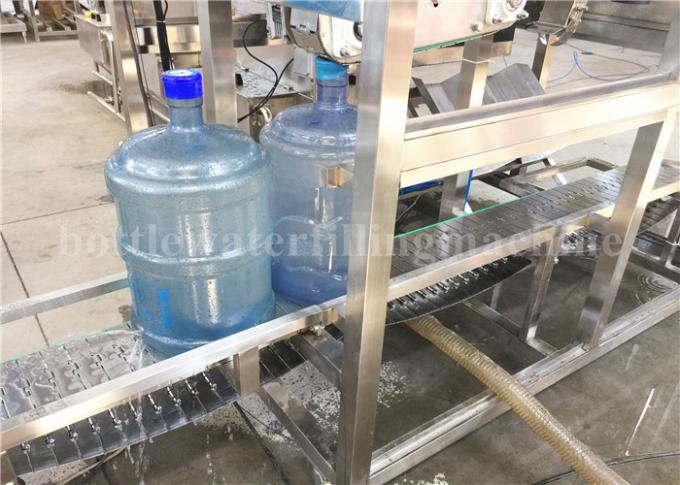

    5) Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging.
