300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine

300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine

    • 300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine
    • 300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine
    • 300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine
    • 300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine
    • 300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine
  • 300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Power: 3.8kw
    Warranty: 1 Year For Free Power Supply: 380V/50HZ(adjustable)
    Automatic Grade: Fully-automatic Dimension(L*W*H): 3800*1300*1600MM
    Filling Bottle Size: 3-5gallen/3-19L Capacity: 300bottles Per Hour



    300BPH 5 Gallon Bottle Washing Filling And Capping Machine For 5 Gallon Water Bottling Line Machinery








    Product Description

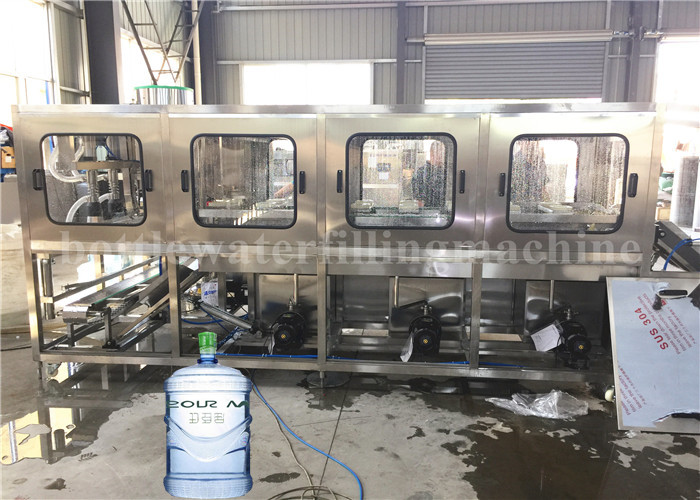

    The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.



    You can click this below picture to see the video:

    300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine

    https://youtu.be/fFrnRsd0lNw



    Characteristics:

    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

    2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

    3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

    4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

    5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

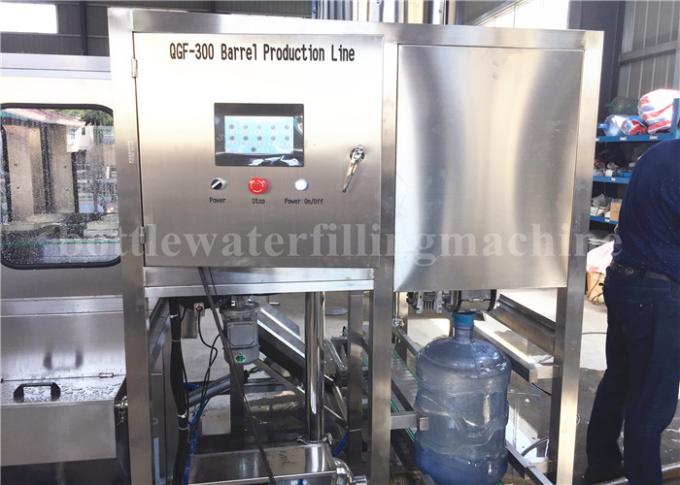

    6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



    Technical parameter

    Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
    Filling heads 1 2 3 4 6
    Volume 18.9 18.9 18.9 18.9 18.9
    Barrel size 270*490 270*490 270*490 270*490 270*490
    Capacity 150 300
    Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
    Gas consumption 0.37 0.6 0.8 1 1.2
    Motor power 1.75 3.8 3.8 7.5 9
    Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Weight 700 1200 1600 2000 3500
    Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

    4200*2300*1600

    2800*1000*1600



    300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine


    300BPH 5 Gallon Water Filling Machine , Bottle Washing Filling And Capping Machine

    Filling Part Features.

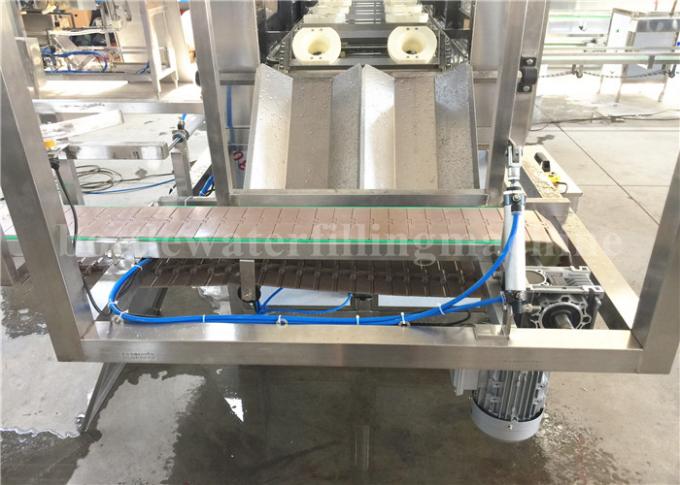

    1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
    2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

    Capping Parts.

    1. Liquid level difference is controlled in 1cm.
    2. Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
    3. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
