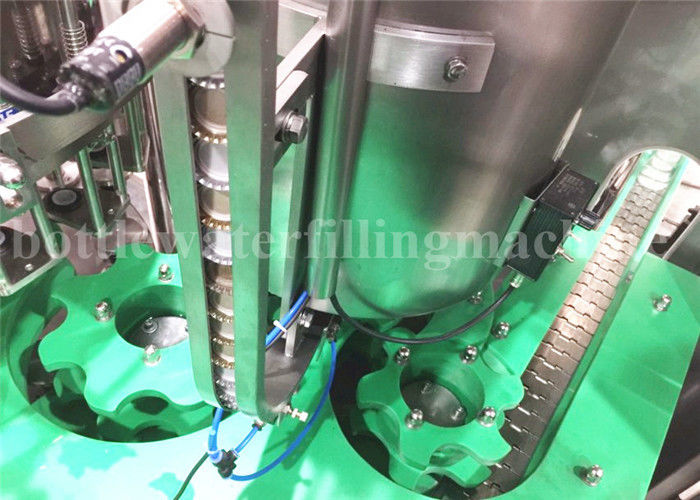

Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line

Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line

    • Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line
    • Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line
    • Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line
    • Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line
  • Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: DGCF18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $30,000 - 560,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Dimension(L*W*H): 2450*1800*2200mm Filling Capacity: 4000BPH(500ml)
    Filling Type: Balanced Pressure Weight: 3000kg
    Power: 5.03KW Voltage: 380V/50HZ
    Material: Stainless Steel 304 Warranty: One Year For Free



    Fully Automatic Carbonated Drink Production Line Energy Drink Glass Bottle Filling Machine Manufacturer







    Brief introduction

    1. This carbonated drink filling machine used move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
    2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
    3.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
    4. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
    5. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
    6. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
    7. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
    8. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
    9. Adopting clamping bottle neck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottle neck way in the whole conveying process. When bottle type changes,you only need to change the board related with bottle diameter.
    10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.

    11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
    12.The electric components and pneumatic components are all introduced from world famous brand products.





    Video show:

    https://www.youtube.com/watch?v=GPTohJGTaE4&feature=share

    Click the below picture,you can see the video:

    Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line



    Technique parameter:

    Model: DCGF18-18-6 DCGF24-24-8 DCGF32-32-12 DCGF40-40-12
    Capacity :500ml 3000 8000 12000 16000
    Bottle shape: roud or square
    PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
    Cap: PE srew cap
    Filling precision: ≤±5mm
    Filling pressure:(Mpa) 0.15-0.35 0.15-0.35 0.15-0.35 0.15-0.35
    Rinsing pressure:(Mpa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
    Filling volume :(L) 3.5 4 6 8
    Overall size:(mm) 2450*1800*2200 2780*2200*2350 3600*2650*2350 3800*2950*2400
    Weight: (kg) 3000 4000 5000 6000



    Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line



    Fully Automatic Glass Bottle Filling Machine , Carbonated Drink Production Line



    I am very pleasure to get your inquiry of our 3in1 carbonated soft/beverage drink filling machine.



    In order to give you suitable offer, I have following details to confirm with you

    1, Your bottle volumes, 500ml, 750ml or other? The machine can fill from 200ml to 2000ml.

    2, You need filling capacity, 3000BPH, 6000BPH, 8000BPH, 12000BPH or 15000BPH. BPH is bottle per hour.

    3, Do you just need filling machine, or you need whole production line?

    Whole line include A. water filter system, B. carbonated soft/ beverage drink blending system, C. 3in1 isobaric filling machine system, D. packaging system(label machine, date sprayer, PE film packaging machine)

    4, The CO2 content in the drink is 2.5 times or 4 times, that is to say, you need the drink have more CO2 gas or less?

    Our factory set up more 20 years, we have drink water filler, hot juice filler, soft dirnk and tea drink filler and production line.

    We have PET bottle filler, glass bottle filler, easy open CAN filler.




    I am very pleasure to get your inquiry of our 3in1 carbonated soft/beverage drink filling machine.

    In order to give you suitable offer, I have following details to confirm with you
    1, Your bottle volumes, 500ml, 750ml or other? The machine can fill from 200ml to 2000ml.
    2, You need filling capacity, 3000BPH, 6000BPH, 8000BPH, 12000BPH or 15000BPH. BPH is bottle per hour.
    3, Do you just need filling machine, or you need whole production line?
    Whole line include A. water filter system, B. carbonated soft/ beverage drink blending system, C. 3in1 isobaric filling machine system, D. packaging system(label machine, date sprayer, PE film packaging machine)
    4, The CO2 content in the drink is 2.5 times or 4 times, that is to say, you need the drink have more CO2 gas or less?
    Our factory set up more 20 years, we have drink water filler, hot juice filler, soft dirnk and tea drink filler and production line.
    We have PET bottle filler, glass bottle filler, easy open CAN filler.
