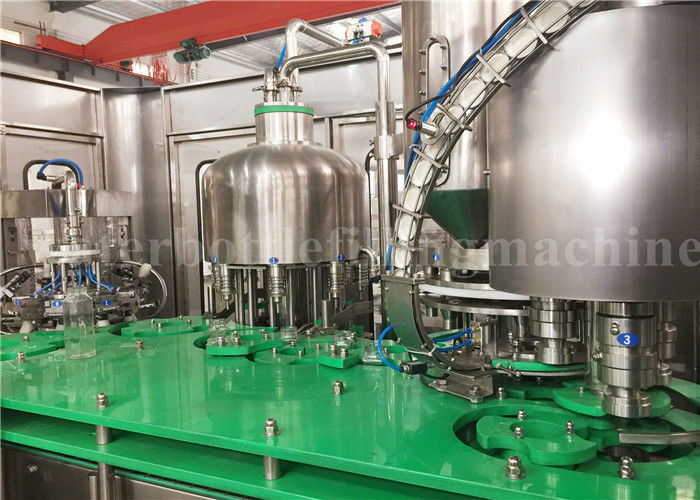

Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw

Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw

    • Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw
    • Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw
    • Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw
    • Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw
    • Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw
    • Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw
  • Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: CGF8-8-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: $6,000-20,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 2000BPH Control System: PLC Control+Touch Screen
    Warranty: One Year For Free Power: 4.23kw
    Bottle Type: Glass Bottle Filling Temperature: Room Temperature
    Weight: 2000kg Material: Stainless Steel 304



    Rotary Mango Juice Bottle Filling Machine / Fruit Juice Bottling Packaging Plant 4.23kw



    Technique parameter

    Model CGF8-8-3 CGF16-12-6 CGF18-18-6 CGF24-24-8
    Productivity 2000BPH 4000BPH 6000BPH 10000BPH
    Rinsing Head 8 16 18 24
    Filling Head 8 12 18 24
    Capping Head 3 6 6 8
    Bottle Volume 350ml~2000ml±10ml
    Bottle Diameter φ50-92mm
    Bottle Height 150-310 mm
    Filling Tolerance ±2%
    Cap Size 28mm and 30mm PE Standard Caps
    Air Pressure 0.6MPa
    Air Consumption 500 L/min
    Filling Water Consumption 1.5 m3/h 1.5 m3/h 3 m3/h 6 m3/h
    Rinsing Water Consumption 0.5 m3/h 0.5 m3/h 1 m3/h 2 m3/h
    Motor Power 4.88kw 5.88kW 6.68kW 7.68kW
    Voltage 380V
    Dimension

    (L*W*H)

    2100*1500*2200mm

    (L*W*H)

    2100*1500*2200mm

    (L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
    Weight 2000kg 2500kg 3000kg 5300kg
    Filling Principle Gravity Filling





    CGF series rinsing filling capping 3in1 machine

    Juice Rinsing Machine:

    -Rotative rinsing turret one treatment, fixed nozzles, with grippers.
    -The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
    -After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.



    Juice Filling machine:

    -The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
    -Product bowl is to reduce the loss of heat.
    -If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.



    Juice Capping machine:

    -Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
    -The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
    -The heads are raised and lowered by the action of a follower that is riding on a shaped cam.



    Features

    1) Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.

    2) Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.

    3) Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling. 4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.

    4) Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



    You can click the below picture to see the video.

    Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw

    https://www.youtube.com/watch?v=6hucff2X4Nc&feature=share





    Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw



    Rotary Glass Bottle Filling Machine Mango Juice Bottling Packaging Plant 4.23kw
