    Product Details:

    Place of Origin: CHINA
    Brand Name: JINYATE
    Certification: CE ISO
    Model Number: DCGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: pls inquire
    Packaging Details: standard wooden case
    Delivery Time: 50 working days
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Carbonated Drink Filling Machine Filling Material: Carbonated Drink, Cola, Soda Water
    Bottle Type: PET/plastic Bottle Cap Type: Sports Cap, Screw Cap
    Capacity: 1000-24000BPH Material: Stainless Steel SUS304
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine





    Machine description

    1. This machine is used to produce carbonated soft drink, like cola, pepsi, sparkling water, soda water, energy drink and all gas drink, also can produce water and juice.

    2. The suitable bottle is from min 250ml to max 2000ml, capacity from 1000 bottles per hour to  24000BPH.

    3. The machine integrates a filler and two capper, one is sports cap, another is screw cap, which is customized for our Russian customer.



    We can supply the complete line plants, more information pls refer to this table



    Containers and specifications
    Project Name: Full Automatic Complete Carbonated Drink 1000-24000bph Production Line
    Carbonated Drink
    Material
    Shape
    Filling volume
    Filling level(mm)
    cap type
    PET Bottle
    Square or Round
    Bottle
    200-2000ml
    Distance from bottle neck
    According request
    sports cap or screw cap
    Adjustable specifications of the bottle type
    [Middle Mould Base]Bottle diameter ≤105mm Bottle Height≤335mm
    Customers need to buy additional change-over parts for the different bottles.
    If using square bottles, then bottle separating system will be added.
    Container Label & Control Mode
    Packaging system
    Palletizing system
    Hot Melt Roll-Fed
    PVC Shrink Label
    Full Label/ Half Label
    Manual / Automatic
    Packing system
    Min, Spec.
    Manual
    Low position gantry palletizer
    Robot Palletizer
    Single Arm Palletizer
    Manual Palletizer
    Manual
    Film shrinker
    Wrap Around
    packer
    Robert Packing
    Machine
    1*2
    2*3
    3*4
    4*6
    3*5
    User Ambient Conditions
    Temperature:10~40℃;Humidity:No dew
    User Electrical Supply Specification
    Voltage:380V±5%, 3phase; Frequency:50HZ±1%

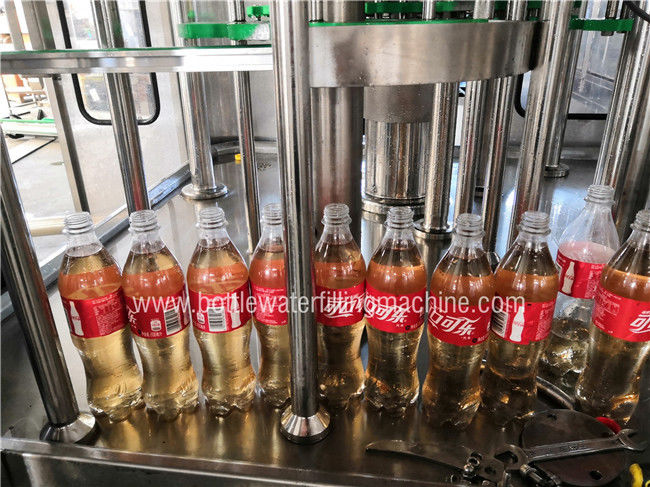

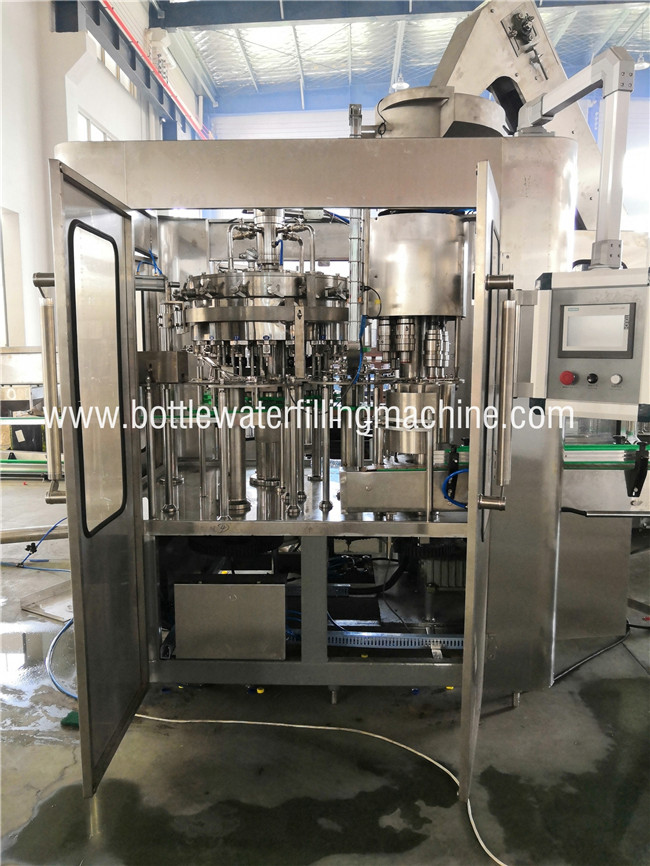

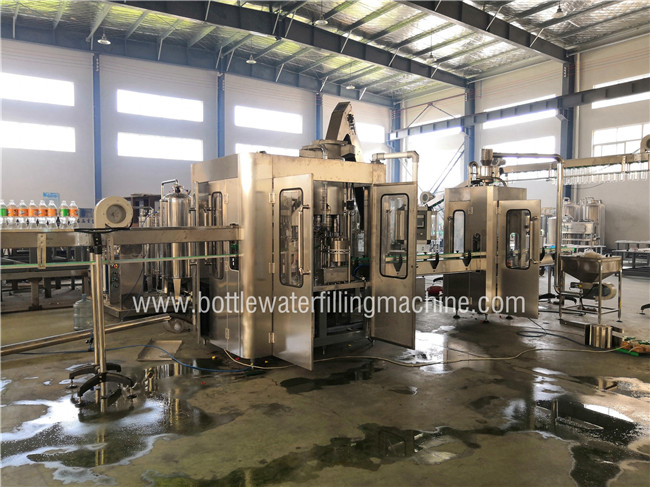

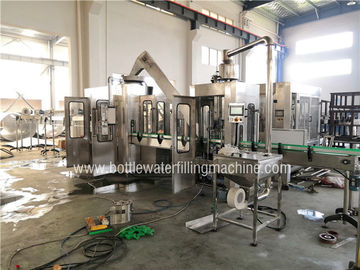

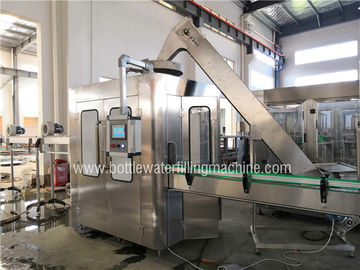

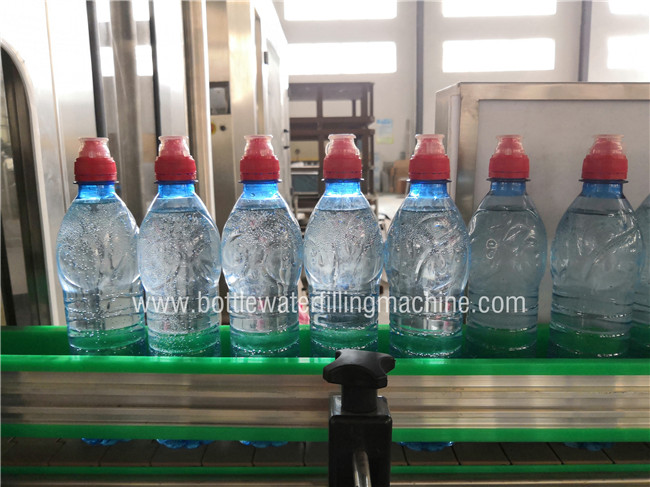

    Machine pictures

    Auto Carbonated Drink Filling Machine , Flavored Energy Drink Juice Bottling Machine 0



    Auto Carbonated Drink Filling Machine , Flavored Energy Drink Juice Bottling Machine 1



    Auto Carbonated Drink Filling Machine , Flavored Energy Drink Juice Bottling Machine 2



    Some our engineering examples

    NO PROJECT PROJECT LOACATION
    1 13000BPH@500ML pure water complete line Ethiopia
    2 2000BPH@5L pure water complete line Malawi
    3 8000BPH@500ML carbonated drink complete line
    4 450BPH@5 gallon filling line Russia
    5 10000BPH@500ml PET bottle sports cap carbonated soft drink complte line
    6 3000BPH@500ml oil filling machine
    7 18000BPH@250ML PET bottle juice complete line RCGF40-40-40-12 Zambia
    8 24000BPH@500ML PET carbonated drink complete line DCGF60-60-15 Dr Congo
    9 10000BPH@500ML glass bottle carbonated soft drink filling machine BCGF32-32-10 Hungry
    10 6000BPH@500ml 5 in 1 glass bottle juice complete line China
    11 4000BPH@1000ml HDPE bottle aluminium foil sealing line Chin



    Capacity from 2000 to 24000BPH, how much is fine with you?
