8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine

8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine

    • 8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine
    • 8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine
    • 8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine
    • 8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine
    • 8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine
  • 8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: DGCF32-32-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $30,000 - 560,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Warranty: One Year For Free Cap Type: Aluminum Screw Cap,Crown Cap
    Driven Type: Electric Dimension(L*W*H): 3600*2200*2600mm
    Filling Capacity: 8000BPH(500ml) Filling Type: Balanced Pressure
    Weight: 5000kg Power: 8.07KW



    8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine



    Main parameter:

    Model: DCGF32-32-10

    Theoretical Capacity: 8000BPH for 0.5L glass bottle

    Rinsing heads quantity:32 pieces

    Filling heads quantity: 32 pieces

    Capping heads quantity:10 pieces

    Filling precision: ≤±5mm

    Volume of PET bottle: 0.25L-2L

    Diameter of bottle: 50-100mm

    Height of bottle: 150-320mm

    Cap diameter: Aluminum screw type cap diameter from 28mm to 38mm

    Water pressure of washing bottle:0.18-0.25Mpa

    Water consumption for water bottle:2500kg/h

    Spraying position:6

    Dripping bottle position:3.5

    Gas source pressure:0.4Mpa

    Gas consumption:0.4m³/min

    Power : 6.57kw

    Weight: 4000kg

    Dimension(L×W×H): 2750*2180*2200mm



    The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.



    8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine



    8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine



    8.07KW Electric Beer Bottling Line Carbonated Drink Filling And Capping Machine



    Features of three main part:

    Washing part

    1. All 304 stainless steel washing heads, water spray style inject design, more save water consumption & more clean

    2. 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

    3. 304 stainless steel washing pumps

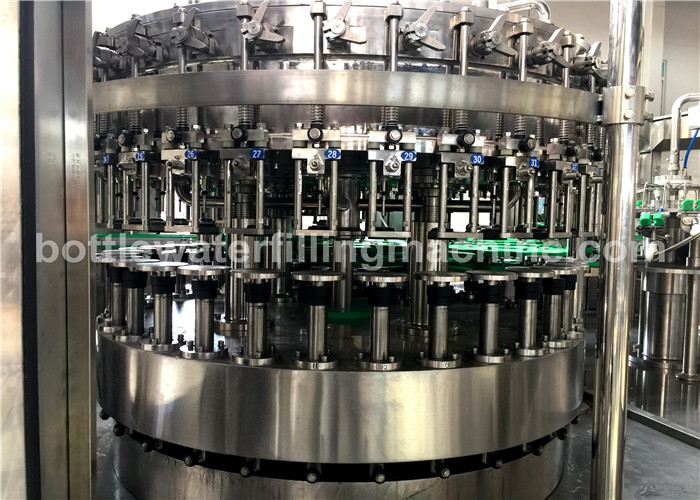

    Filling Part

    1. The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitate system, to ensure the high filling precision, ensure same filling level

    2. Filling temperature is adjustable.

    3. Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.

    4. All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

    5. No bottle, no filling

    Capping part

    1. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

    2. All 304stainless steel construction

    3. No bottle no capping,

    4. Automatic stop when lack of caps

    Cap elevator

    It is used for conveying caps into the capping machine by blowing. It starts to work automatically when it is lake of cap in the capping machine. The height and distance of transporting caps, the time of sterilizing can be adjusted as the requirement.

    Flat Conveyor It is used for transferring the bottles



    IF you want to the detailed quotation,please leave me these message
    1, bottle vlolume
    2, bottle materail (machines for glass bottle and plastic bottle are different)
    3, how many bottles per hour you want to produce ?
    4, do you need this water filling machines only or whole water production line
