Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine

Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine

    • Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine
    • Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine
    • Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine
    • Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine
  • Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: CGF

    Payment & Shipping Terms:

    Packaging Details: standard wooden case
    Contact Now
    Detailed Product Description
    Product Name: Water Bottling Machine Function: Washing Filling Capping
    Filling Material: Mineral Water, Drinking Water Machine Material: Stainless Steel SUS304
    Voltage: 380V 50HZ 3Phases Control: PLC+HMI


    Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine

    Main features:

    1.Applied for filling pure and mineral water into bottles.

    2.The three functions of bottle washing, filling and capping are combined into one machine.

    3.The whole machine has scientific and reasonable design, beautiful appearance, complete functions, easy operation and maintenance, a high degree of automation.

    4.The most advanced technology Italy and Germany is employed in the design.

    5.The whole machine is controlled by PLC with touch-screen as the human-machine interface.

    6.The filling and capping will be stopped when there is no bottles.

    7. Each water filling machine element that contacts with the liquid is made of high quality Stainless steel 304, if needed,Stainless steel is also available.

    8. Easy to operate, save the cost for workers.

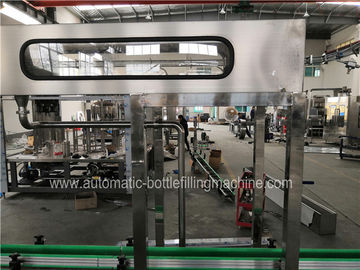

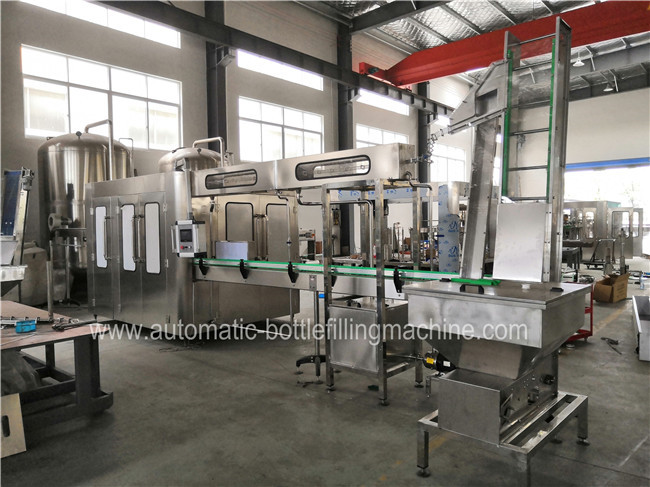

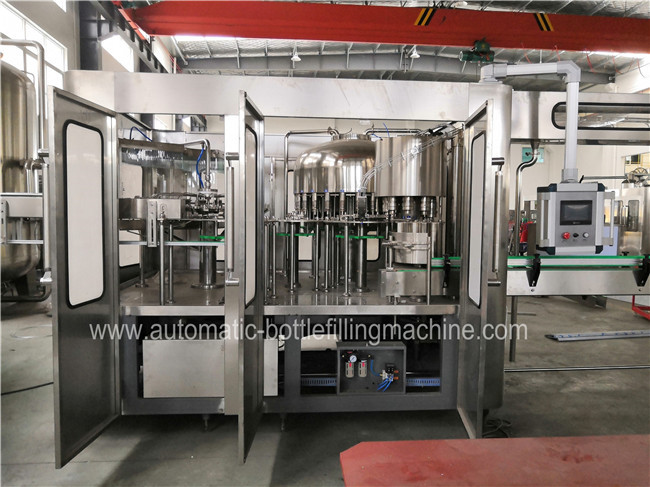

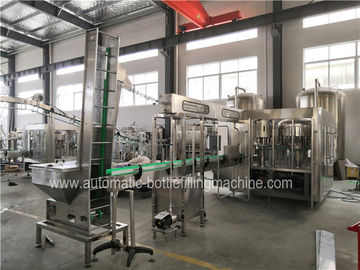

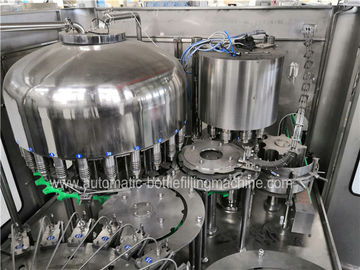

    machine pictures

    Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine



    Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine



    parameter



    Model CGF8-8-3 CGF16126 CGF18186 CGF24248
    Number of washing, filling and capping heads 8-8-3 16-12-6 18-18-6 24-24-8
    Production capacity(500ml)
    (B/H)
    2000BPH 4000 7000-8000 10000-12000
    Suitable bottle specification(mm) volume=330-2000ml φ=50-110 H=150 ~340mm volume=330-2500ml
    Washing pressure(kg/cm 2 ) 2-3
    Motor power(kw) Main motor
    1.9kw
    Main motor
    3.5kw
    Main motor
    4.0kw
    Main motor
    4.8kw
    Overall dimensions (mm) 1900*1420*2000 2450*1800*2400 2650*1900*2400 2900*2100
    *2400
    Weight (kg) 1500 2500 3500 4500
    Model CGF323210 CGF404012 CGF505015 CGF606015
    Number of washing, filling and capping heads 32-32-10 40-40-12 50-50-15 60-60-15
    Production capacity(500ml)
    (B/H)
    12000-15000 15000-18000 20000-22000 22000-25000
    Suitable bottle specification(mm) φ=50-110 H=150~340mm Volume=330-2500ml
    Washing pressure(kg/cm 2 ) 2-3
    Motor power(kw) Main motor
    7.6kw
    Main motor
    8.3kw
    Main motor 9.6kw Main motor 15Kw
    Overall dimensions (mm) 4100*2000
    *2400
    4550*2650
    *2400
    5450*3210
    *2400
    5500*3510
    *2400
    Weight (kg) 6500 8500 9800 12000

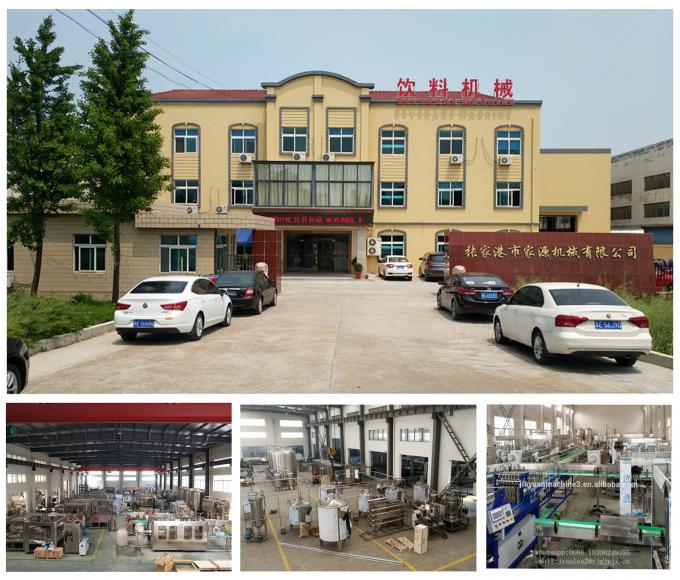

    company profile

    Small Scale Packaged Drinking Water Bottle Filling Machine , Pure Water Machine



    After-sales service

    1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

    2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

    3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

    4.We provide one year warranty

    5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

    6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

    7 .12 Months guarantee and life-long technical support.

    8.Your business relationship with us will be confidential to any third party.

    9. Good after-sale service offered, please get back to us if you got any questions.
