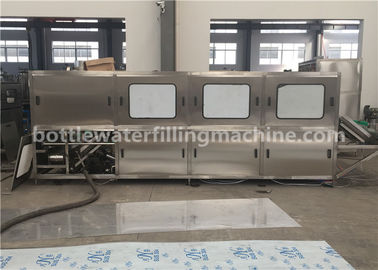

19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line

19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line

    • 19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line
    • 19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line
    • 19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line
    • 19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line
    • 19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line
  • 19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Power: 3.8kw
    Warranty: 1 Year For Free Power Supply: 380V/50HZ(adjustable)
    Automatic Grade: Fully-automatic Dimension(L*W*H): 3800*1300*1600MM
    Filling Bottle Size: 3-5gallen/3-19L Capacity: 300bottles Per Hour

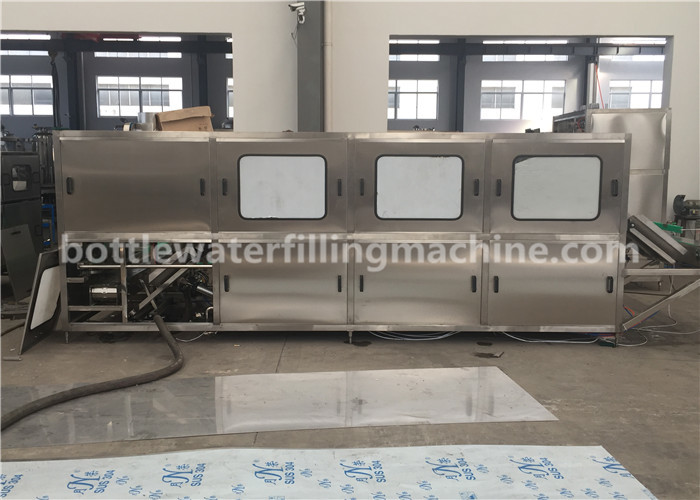

    19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line




    Video show



    Product Description


    1. Automatic decapper

    2. Automatic external brusher

    3. Automatic internal brusher

    4. 5 gallon washing filling capping machine

    5. Cap heat shrink machine

    6. Light checker



    Description

    The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.



    Technical parameter

    Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
    Filling heads 1 2 3 4 6
    Volume 18.9 18.9 18.9 18.9 18.9
    Barrel size 270*490 270*490 270*490 270*490 270*490
    Capacity 150 300
    Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
    Gas consumption 0.37 0.6 0.8 1 1.2
    Motor power 1.75 3.8 3.8 7.5 9
    Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Weight 700 1200 1600 2000 3500
    Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

    4200*2300*1600

    2800*1000*1600



    Main pictures

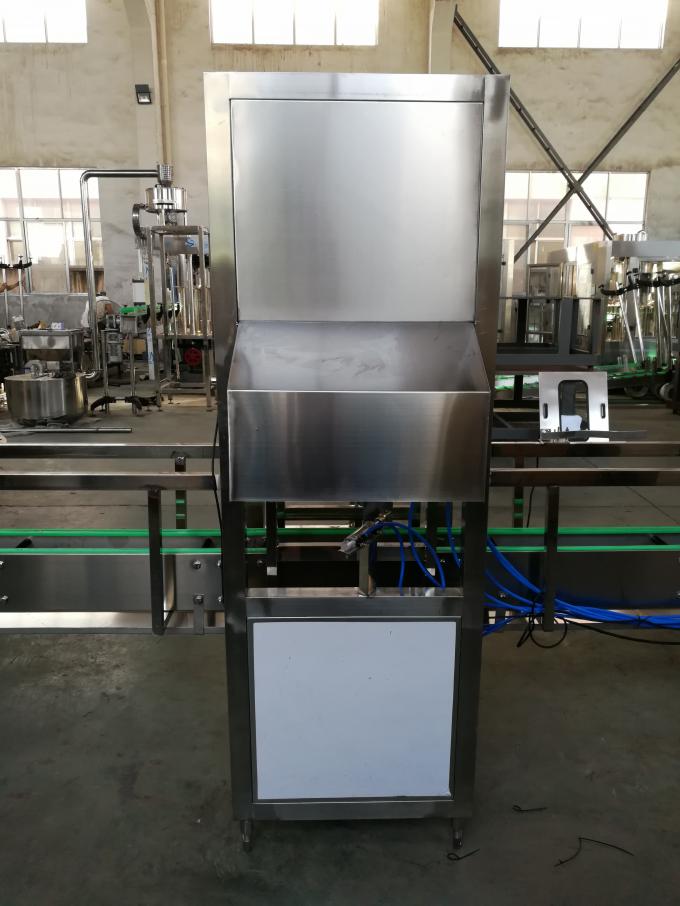

    Automatic decapper

    Automatic caps removal machine is specially designed for pulling out the recycled 5 gallon bottle caps, with ge
    ntly designed pneumatic clamping head to remove the caps without broken the recycled bottle by the pneumati
    c system. With infra-red sensoring system to check the caps for accurate caps removal.304 stainless machine fr
    ame and machine body,effective cap pulled, little dilapidation to the cap, small distortion and efficiency for using

    19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line

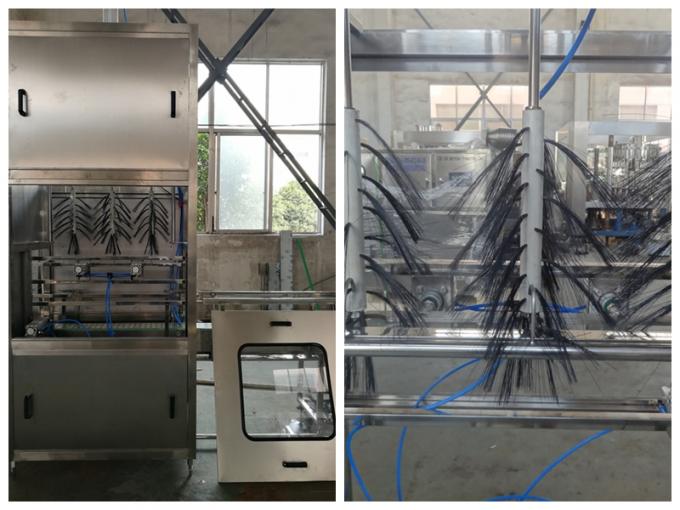

    Automatic external brusher

    Automatic bottle exterior brush washing machine is designed for pre-wash the reusable 5 gallon bottle by detergent washing and clean water washing for cleaning the dust, oil things outside of the bottle to improve the washing filling capping system of the main machine, it is geared by high grade Nylon brushing system for washing the bottle bottom, bottle body, bottle shoulder part, controlled by PLC control system.

    19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line

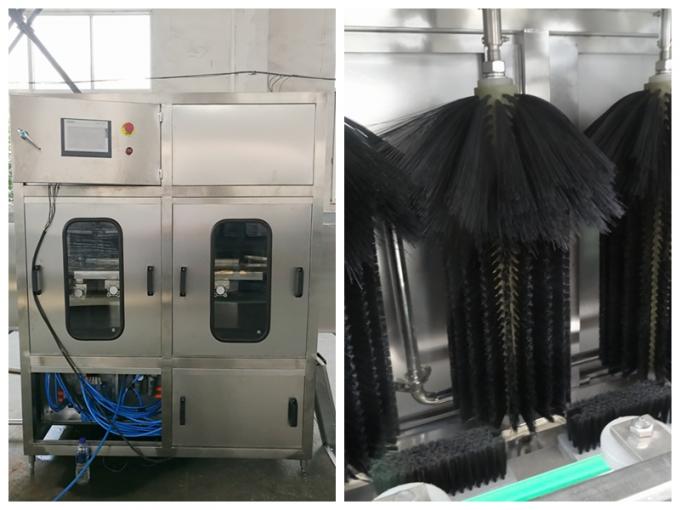

    Automatic internal brusher

    Automatic internal barrel brusher is a special supporting equipment for 5 gallon water production. It is
    suitable for mineral water production, can effectively remove the sediment and algae materials inside the
    barrel which caused by water mineralization itself.The machine improve the washing effect greatly and reduce
    the second pollution by manually washing. The complete machine is made of super stainless steel, resist
    corrosion and easy cleaning. Main electrical elements adopt Siemens or Omron, penumatic system adopt
    Festo.It has a compact construction,high working efficiency and automation

    19 Liter Water Jar Filling Machine , Complete 5 Gallon Water Bottling Line

    Our Services

    1. One year warranty for the whole system.

    2. Free equipment installation and debugging.

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

    4. We can provide internship service and help you train the operator and mechanic.

    5. Free beverage production technology and process configuration.

    6. We can help you to design the product line, workshop and provide turn-key project.
