Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise

Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise

    • Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise
    • Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise
    • Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise
    • Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise
    • Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise
  • Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Power: 3.8kw
    After-sales Service Provided: Overseas Service Center Available Warranty: 1 Year For Free
    Power Supply: 380V/50HZ(adjustable) Filling Type: Normal Pressure Filling
    Dimension(L*W*H): 3800*1300*1600MM Filling Bottle Size: 3-5gallen/3-19L

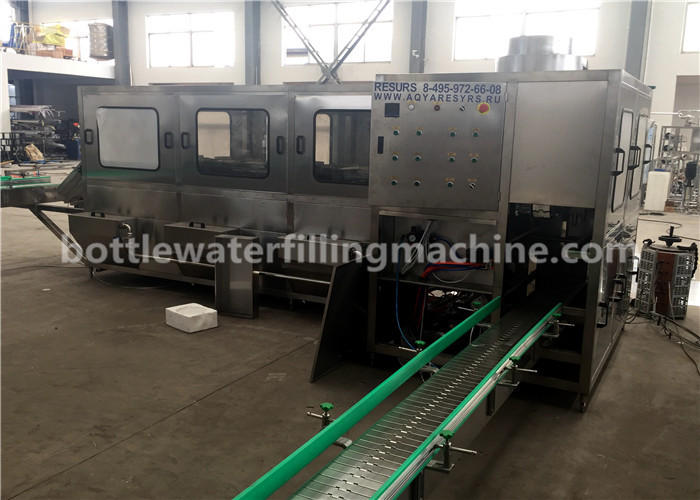

    Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise




    Video show



    Product Description


    1. Automatic decapper

    2. Automatic external brusher

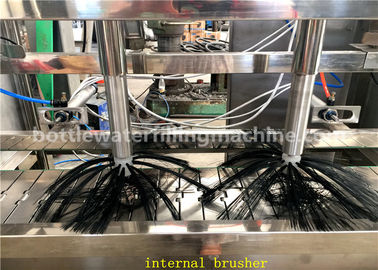

    3. Automatic internal brusher

    4. 5 gallon washing filling capping machine

    5. Cap heat shrink machine

    6. Light checker



    Description

    The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.



    Technical parameter

    Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
    Filling heads 1 2 3 4 6
    Volume 18.9 18.9 18.9 18.9 18.9
    Barrel size 270*490 270*490 270*490 270*490 270*490
    Capacity 150 300
    Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
    Gas consumption 0.37 0.6 0.8 1 1.2
    Motor power 1.75 3.8 3.8 7.5 9
    Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Weight 700 1200 1600 2000 3500
    Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

    4200*2300*1600

    2800*1000*1600



    Main pictures

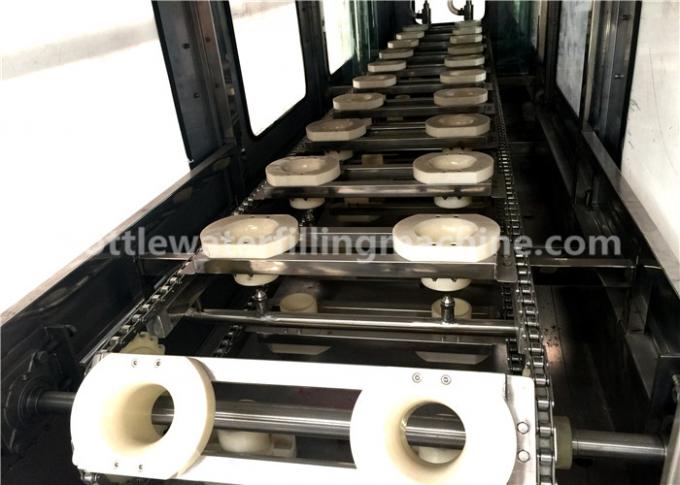

    Washing part

    The rinsing process includes 12 passes of procedures: 1. Pre-rinsing; 2. and 3. Rinsing with alkali liquor;
    4. Dripping water; 5. and 6. Rinsing with water; 7. Dripping water; 8. and 9. Disinfectant solution; 10.
    And 11. Finished water; 12. Dripping water.

    Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise

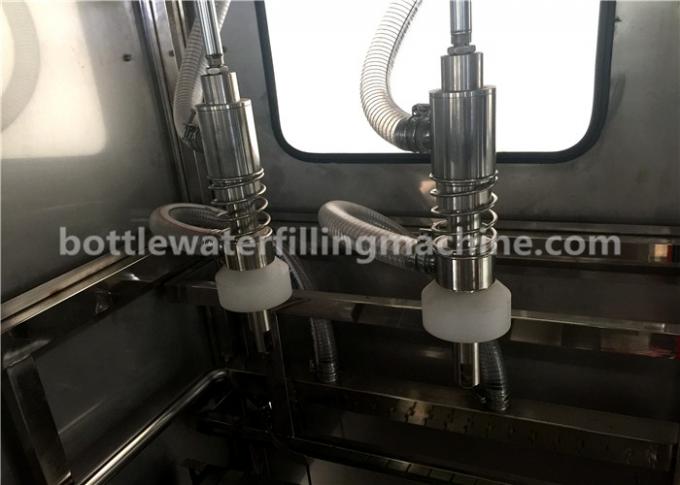

    2 heads Filling part

    Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
    Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

    Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise

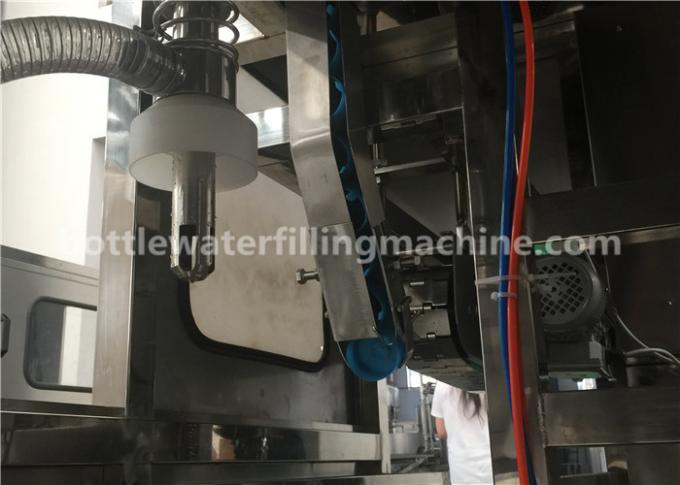

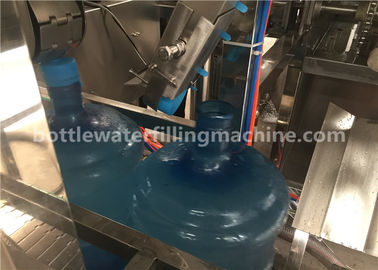

    2 heads Capping part

    Liquid level difference is controlled in 1cm.
    Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
    Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

    Automatic 5 Gallon Water Filling Machine / Bottle Filler Equipment Low Noise


    Our Services

    1. One year warranty for the whole system.

    2. Free equipment installation and debugging.

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

    4. We can provide internship service and help you train the operator and mechanic.

    5. Free beverage production technology and process configuration.

    6. We can help you to design the product line, workshop and provide turn-key project.
