Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE SGS ISO |
| Model Number: | CGF8-8-3 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $15,000 - 1,000,000 / Set |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30 Working Days |
| Supply Ability: | 15 Set/Sets per Month |
| Machine Type: | Filling Machine | Machine Material: | SS304 |
|---|---|---|---|
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V/50HZ | Bottle Type: | Pet Bottle/plastic Bottle |
| Warranty: | One Year For Free | Capacity: | 3000bottles Per Hour(500ml) |
| High Light: | liquid bottle filling machine,water bottling equipment |
||
Quick information
1. Capacity:3000BPH(based on 500ml)
2. Bottle size:200ml-1000ml
3. Washing filling capping 3-in-1 unit

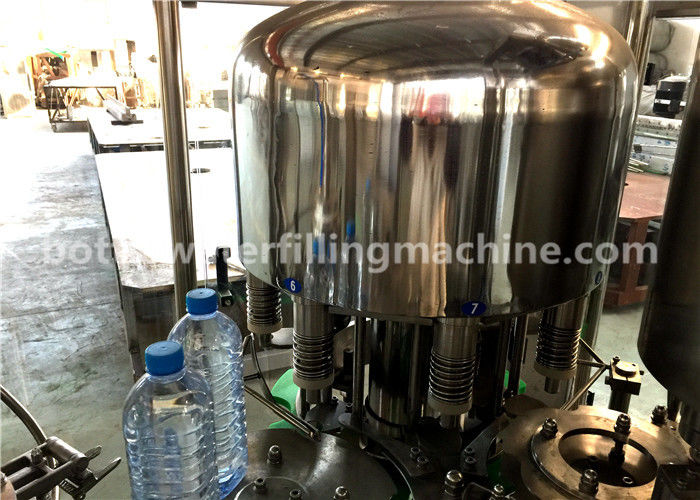

Instruction of the 3-in-1 Water Filling Monobloc
Advantage
1. Automatic 3 in 1 Water Bottling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304 or SUS316.
2. It is used for filling kinds of non-carbonated water, such as still water, drinking water. mineral water, spring water, flavored water.
3. Its usual production capacity is in 3000bph, 0.2-1L PET bottle is available.
4. Pivotal electrical part use Mitsubishi, OMRON, SIEMENS.
5. Filling accuracy is more or less than 1%.
6. We can provide water treatment machine, bottle blowing machine, bottle filling machine, labeling machine,wrapping packing machine etc.
| Model | CGF8-8-3 |
| Capacity | 3000BPH for 0.5L bottles |
| Washing heads quantity | 8 pieces |
| Filling heads quantity | 8 pieces |
| Capping heads quantity | 3 pieces |
| Air supply pressure | 0.6Mpa |
| Power | 3kw |
| Weight | 1500kg |
| Dimension(L*W*H) | 1600*1500*2200mm |
Machine frame
The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated, the machine frame is wrapped with stainless stell SUS304.
Driving system of the 3-in-1 unit is positioned under the machine talbe. One main motor provides driving porwer via gear transmission.
The gear transmission system is an interleaved arrangement of stell gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.
PLC electrical control system controls the fully automatic operation of the monobloc.

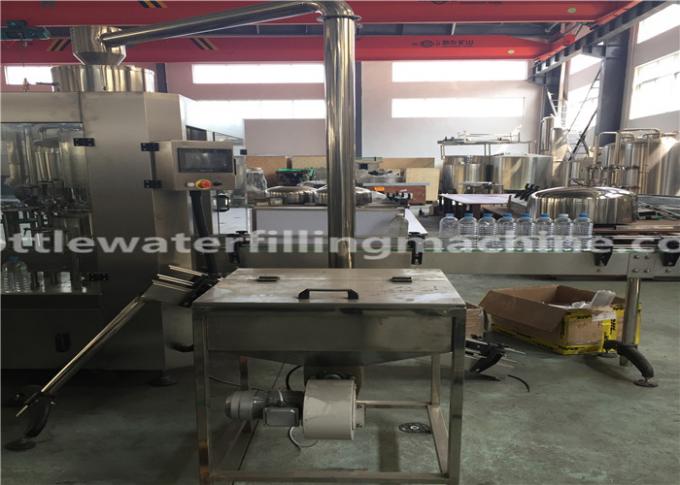

Cap loader:Convey caps into the capping machine by blowing

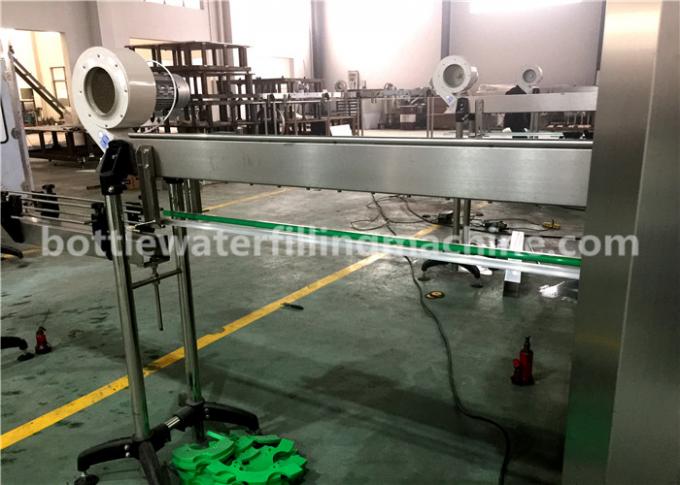

Air Conveyor:convey the PET bottle into the filling machine

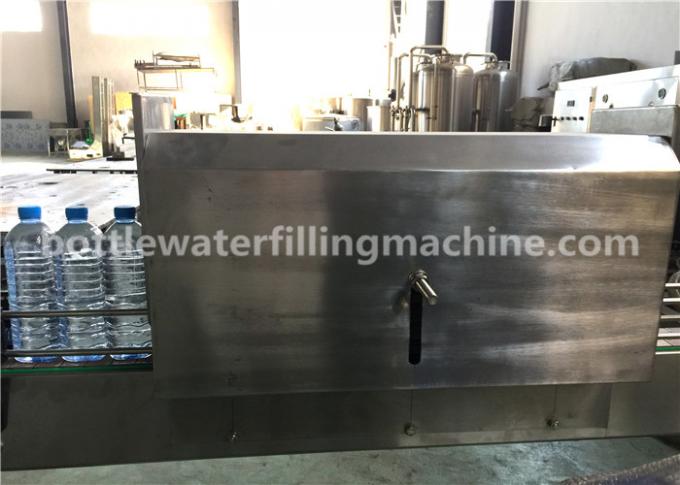

Bottle dryer:remove the water outside the bottle after filling
- Water treatment
- Air conveyor
- Rinsing-filling-capping 3-in-1 monoblock
- Light checker
- Cap loader
- Conveyor
- Air dryer
- Labeling machine
- Ink jet printer
- Shrink packing machine
