Small Bottle Washing Filling Capping Machine For Complete Water Filling Line

Small Bottle Washing Filling Capping Machine For Complete Water Filling Line

    • Small Bottle Washing Filling Capping Machine For Complete Water Filling Line
    • Small Bottle Washing Filling Capping Machine For Complete Water Filling Line
    • Small Bottle Washing Filling Capping Machine For Complete Water Filling Line
    • Small Bottle Washing Filling Capping Machine For Complete Water Filling Line
    • Small Bottle Washing Filling Capping Machine For Complete Water Filling Line
  • Small Bottle Washing Filling Capping Machine For Complete Water Filling Line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE SGS ISO
    Model Number: CGF8-8-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 1,000,000 / Set
    Packaging Details: Wooden Box
    Delivery Time: 30 Working Days
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Machine Type: Filling Machine Application: Beverage
    Packaging Type: Barrel, Bottles Automatic Grade: Automatic
    Driven Type: Electric Voltage: 380V/50HZ
    Processing Types: Water Warranty: One Year For Free

    Small Bottle Washing Filling Capping Machine For Complete Water Filling Line







    Specifications

    1. Capacity:3000BPH(based on 500ml)

    2. Bottle size:200ml-1000ml

    3. Washing filling capping 3-in-1 unit

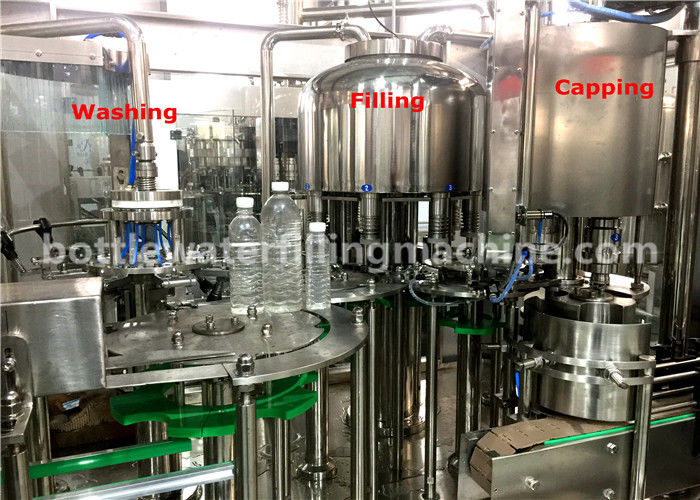

    Instruction of the 3-in-1 Water Filling Monobloc

    Automatic Drinking Water Filling Machine/Bottle Plant contains washing, filling and capping with complete automation. It is suitable for filling water, such as mineral water, pure water into polyester bottles and PET bottles. The main machine adopts advanced PLC control technology.The key electric elements adopt international famous products.
    Small Bottle Washing Filling Capping Machine For Complete Water Filling Line
    Features

    1. The suspending bottle-neck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of different types of bottles easily.

    2. The new generation of stainless steel grab is adopted and the grabs have no contact with the arew above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

    3. The advanced gravity filling technology used in this machine makes the filler quick,steady and accurate.

    4. Magnetic torque is used for screw capping,and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.

    5. Advanced technologies,such as human-machine interface touch-screen and PLC program control are adopted in this machine.

    6. All parts that directly contacting with water are made of high stainless steel. The critical electrical components are from famous international companies, such as mitsubishi, omron and other famous brands.


    Technical parameter
    Model CGF8-8-3
    Capacity 3000BPH for 0.5L bottles
    Washing heads quantity 8 pieces
    Filling heads quantity 8 pieces
    Capping heads quantity 3 pieces
    Air supply pressure 0.6Mpa
    Power 3kw
    Weight 1500kg
    Dimension(L*W*H) 1600*1500*2200mm

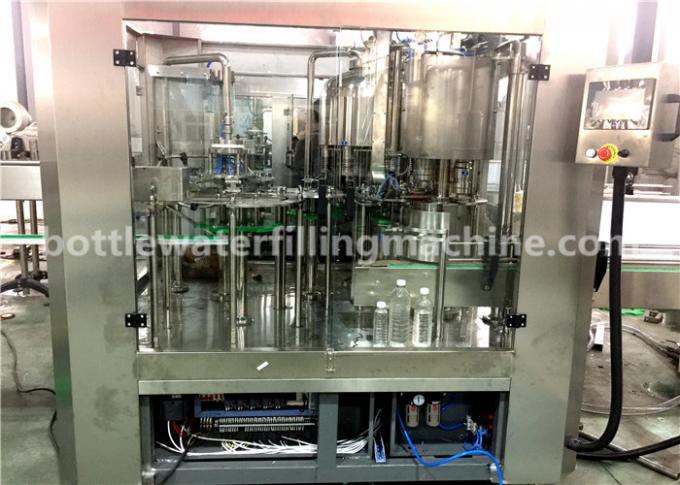

    Machine frame

    The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated, the machine frame is wrapped with stainless stell SUS304.
    Driving system of the 3-in-1 unit is positioned under the machine talbe. One main motor provides driving porwer via gear transmission.
    The gear transmission system is an interleaved arrangement of stell gears and nylon gears.
    The output shaft of the main motor is equipped overload protection to secure machine safety.
    PLC electrical control system controls the fully automatic operation of the monobloc.

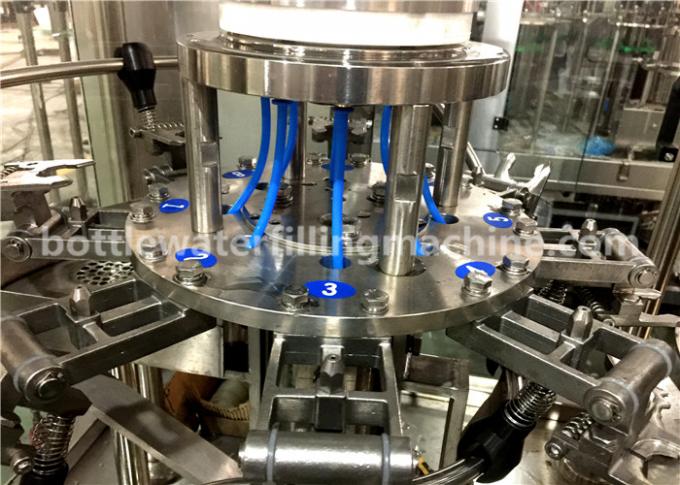

    Washing part

    Small Bottle Washing Filling Capping Machine For Complete Water Filling Line

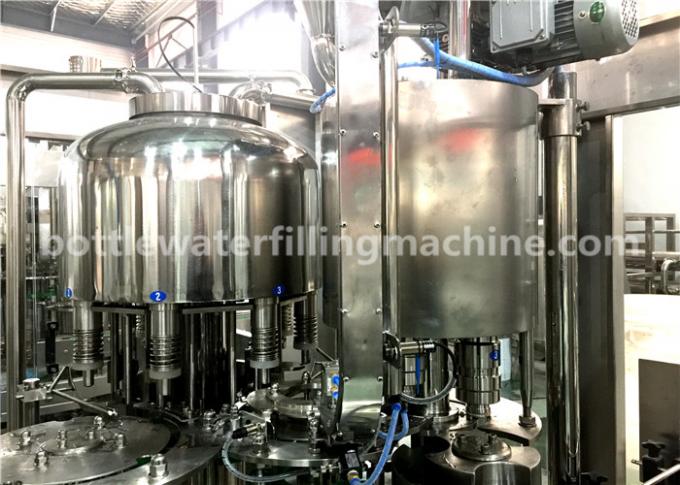

    Filling and capping part

    Small Bottle Washing Filling Capping Machine For Complete Water Filling Line



    COMPLETE WATER FILLING PRODUCTION LINE INCLUDES:

    - Water treatment

    - Air conveyor

    - Rinsing-filling-capping 3-in-1 monoblock

    - Light checker

    - Cap loader

    - Conveyor

    - Air dryer

    - Labeling machine

    - Ink jet printer

    - Shrink packing machine
