Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW

Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW

    • Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW
    • Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW
    • Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW
    • Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW
    • Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW
  • Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE SGS ISO
    Model Number: CGF16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 1,000,000 / Set
    Packaging Details: Wooden Box
    Delivery Time: 30 Working Days
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Packaging Type: Barrel, Bottles,cans Packaging Material: Paper, Plastic, Wood
    Voltage: 380V/50HZ Power: 4.23kw
    Dimension(L*W*H): 2100*1500*2200mm Capacity: 2000-4000b/h
    Weight: 2000kg Condition: New

    Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling

    Machine 4.23KW



    Brief Introduction of Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW



    1. This filling water machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines

    2. The machine is easy to change the shape of bottles, which can be done by changing thethumb wheel without adjusting the height of the machine.

    3. The filling water machine case and the parts contacting with the materials are made ofstainless steel which ensures the good external look and easy washing.

    4. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed,Stainless steel is also available.

    5. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.

    6. Most elements of the electrical system use famous international brand .

    7. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The quality of the equipments reaches the advanced level of the world.

    8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

    9. Easy to operate, save the cost for workers.



    Techincal parameter

    Model CGF16-12-6
    Production capacity(500ml)(b/h) 2000-4000
    Filling precision ≤±5MMLiquid Level
    Polyester bottle standard(mm) ≤±5MM(Liquid Level)
    Height (Height):150-320
    Suitable cap shape Plastic Screw Cap)
    Water pressure of Washing bottle(MPa) 0.18
    Water consumption for Water bottle (kg/h) 800
    Spraying position 5
    Dripping bottle position 3
    Gas source pressure(Mpa) normal pressure
    Gas consumption(m3/mm) 0.3
    Total power 4.23
    Total weight 2000
    Dimension(L*W*H) 2100*1500*2200



    Image of Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW

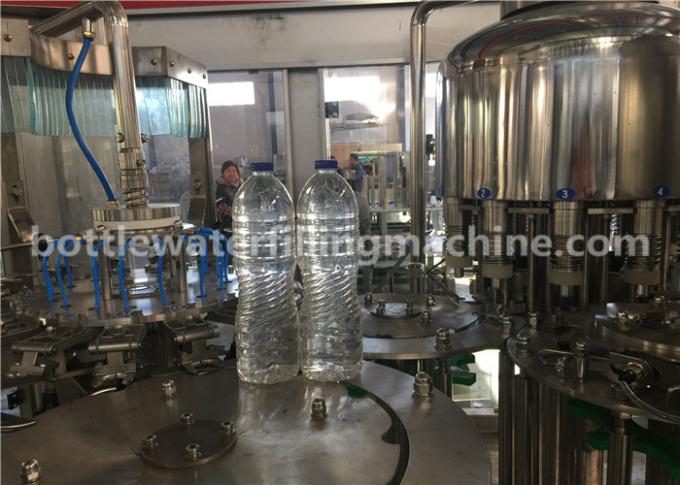

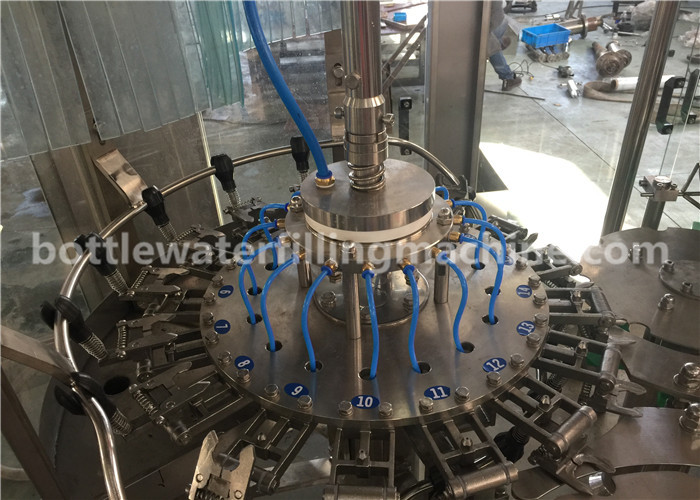

    16 heads Washing part and 12 heads filling part
    Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW

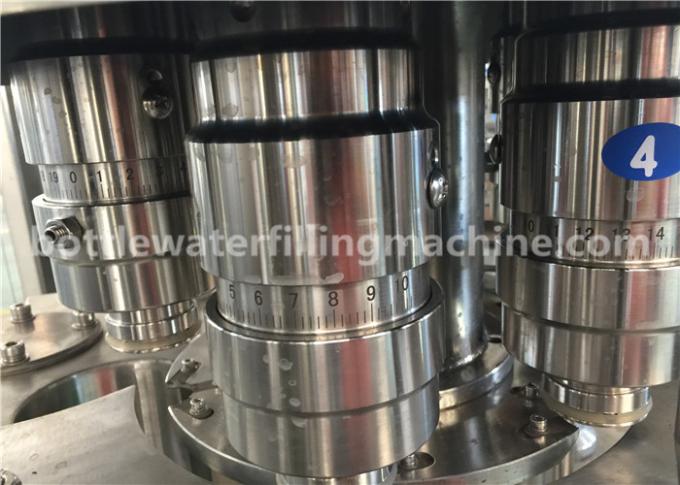

    6 heads capping part
    Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW

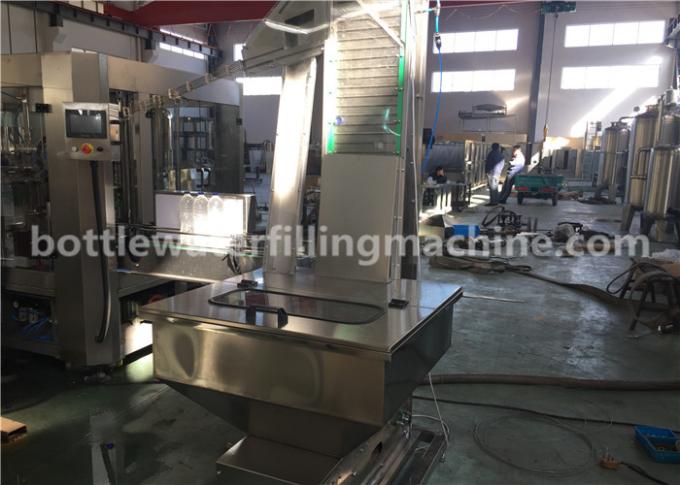

    Cap elevator

    Rotary 3-In-1 Liquid Bottling Filling Line Pure Water Bottle Filling Machine 4.23KW
