CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ

CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ

    • CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ
    • CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ
    • CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ
    • CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ
    • CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ
  • CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE SGS ISO
    Model Number: CGF16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 1,000,000 / Set
    Packaging Details: Wooden Box
    Delivery Time: 30 Working Days
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Driven Type: Electric Voltage: 380V/50HZ
    Power: 4.23kw Dimension(L*W*H): 2100*1500*2200mm
    Capacity: 2000-4000b/h Material: Full Stainless Steel
    Color: Silver Gray Bottle Type: Round,flat,plastic,pet Bottle

    CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ



    Description

    CGF16-12-6 Bottle Washing Filling Capping Machine For Water Factory 4.23KW

    This water filling machine is with bottle rinsing, filling and capping monobloc for drinking water (non-carbonated) filling.PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our Zhangjiagang Jiayuan machinery company .



    Feature

    1. It is suitable for in the non-carbonated drink, fruit juice, mineral water and pure water.

    2. We adopted advanced normal pressure gravity for filling, the filling effect are fast, steady, quasi and equipped with the material recirculating system, realize backflow independently, not contact with material and avoiding second pollution and oxidation.

    3. The whole production line adopts human-machine interfaces, touch-screen, PLC computer controller and other advanced technologies.

    4. With automatic inspect system of filling temperature automatic, caps supplying material high-temperature alarm, low-temperature shutdown and automatic retum, no bottle, no vorer, wait when lack of bottles, lacking caps shutdown and so on, realize no bottle, no filling.

    5. Output range is 2000-20000bottles/hour. (can fill 0.2L and 2L with one machine, but have to change some fittings).

    6. We adopt magnetic torque capping head. labeling machine is desiqned by our self with stainless steel frame. Shrink packing machine adopted original imported parts from Germany, Japan.



    Techincal parameter

    Model CGF16-12-6
    Production capacity(500ml)(b/h) 2000-4000
    Filling precision ≤±5MMLiquid Level
    Polyester bottle standard(mm) ≤±5MM(Liquid Level)
    Height (Height):150-320
    Suitable cap shape Plastic Screw Cap)
    Water pressure of Washing bottle(MPa) 0.18
    Water consumption for Water bottle (kg/h) 800
    Spraying position 5
    Dripping bottle position 3
    Gas source pressure(Mpa) normal pressure
    Gas consumption(m3/mm) 0.3
    Total power 4.23
    Total weight 2000
    Dimension(L*W*H) 2100*1500*2200



    Inner look

    CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ

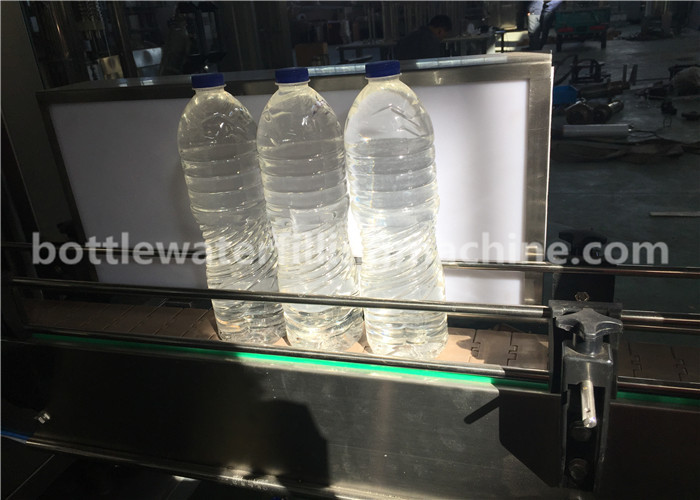

    Conveyor

    CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ



    CGF16-12-6 Bottle Washing Filling Capping Machine 4.23kw 380V / 50HZ
