2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business

2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business

    • 2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business
    • 2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business
    • 2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business
    • 2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business
    • 2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business
  • 2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE SGS ISO
    Model Number: CGF16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 1,000,000 / Set
    Packaging Details: Wooden Box
    Delivery Time: 30 Working Days
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Packaging Type: Barrel, Bottles,cans Packaging Material: Paper, Plastic, Wood
    Driven Type: Electric Voltage: 380V/50HZ
    Power: 4.23kw Dimension(L*W*H): 2100*1500*2200mm
    Capacity: 2000-4000b/h Material: Full Stainless Steel

    2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business



    Description

    2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business

    This water filling machine is with bottle rinsing, filling and capping monobloc for drinking water (non-carbonated) filling.PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our Zhangjiagang Jiayuan machinery company .



    Feature

    1. PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, This bottle clamp grips bottle at neck postion, avoiding bottle mouth thread comtamination caused by rubber gripper block of a traditional bottle clamp.

    2. This part is made of SUS 304 stainless steel, the bottle clamp is hygienic and durable.

    3. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and aso saves rinsing water.

    4. Filling valves aer reasonably structured with accurate filling.

    5. Bottle go up and down in the function of cam through elevator to process filling with contact to bottle-mouth.

    6. Filler is driven through gears inside the machine frame.
    7. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

    8. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
    9. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
    10. The capper is equipped with inlet bottle detection switch.
    11. Centrifugal way of cap arranging is adopted to reduce damage of caps.
    12. A cap inspection system is applied to control on-off of elevator.



    Techincal parameter

    Model CGF16-12-6
    Production capacity(500ml)(b/h) 2000-4000
    Filling precision ≤±5MMLiquid Level
    Polyester bottle standard(mm) ≤±5MM(Liquid Level)
    Height (Height):150-320
    Suitable cap shape Plastic Screw Cap)
    Water pressure of Washing bottle(MPa) 0.18
    Water consumption for Water bottle (kg/h) 800
    Spraying position 5
    Dripping bottle position 3
    Gas source pressure(Mpa) normal pressure
    Gas consumption(m3/mm) 0.3
    Total power 4.23
    Total weight 2000
    Dimension(L*W*H) 2100*1500*2200

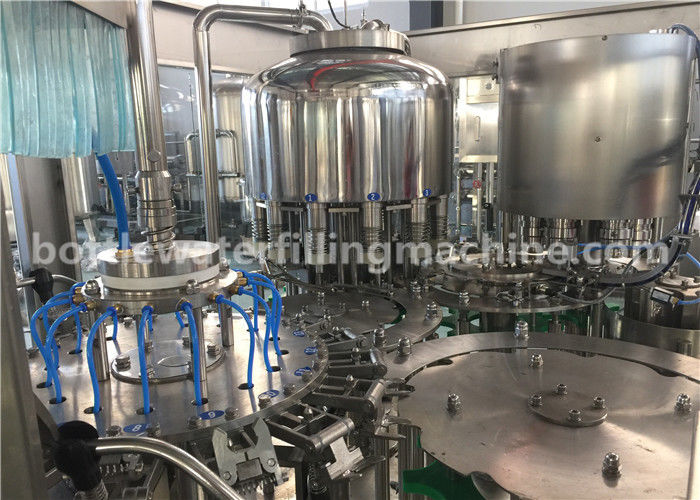

    Overall look of CGF16-12-6

    2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business

    Light checker

    2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business

    Air conveyor

    2L Pure Water Bottle Filling Machine / Mineral Water Plant For Small Business



    Why choice us?

    Design Ability All the machines designed by CAD
    Manufacturing Ability Mechanical parts: high quality stainless steel, processed by CNC
    Reliability Electrical parts from world famous suppliers
    Professional

    Focus on beverage and cosmetics packing machines

    Exported to over 20 countries with good reputation

    6 years Alibaba Golden supplier without complaint

    Good Service Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.
    Profession on Export Authorized export licence.
