Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine

Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine

    • Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine
    • Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine
    • Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine
    • Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine
    • Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine
  • Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: GFP-12 FXZ-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $8,700-500,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 2000 Cans Per Hour Dimension(L*W*H): 1100*1050*1800mm
    Bottle Type: PET Plastic Glass Bottle Filling Material: Juice,milk,tea Etc
    Function: Can Filling Sealing Color: Silver Gray
    Condition: New Filling Pressure: Negative Pressure

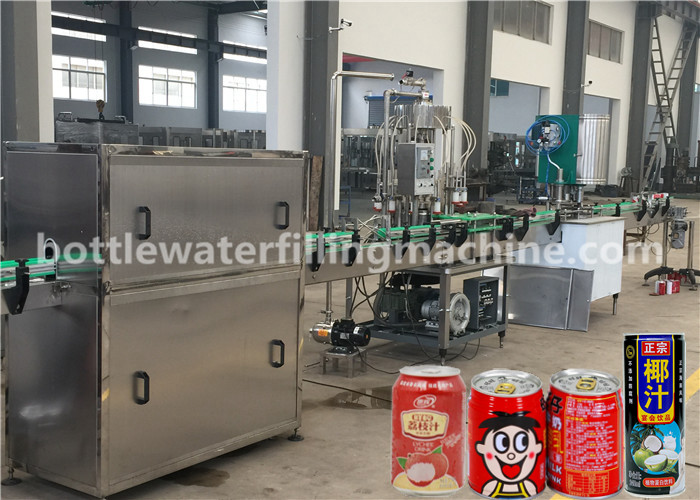

    Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine




    Introduction


    GFP Series negative pressure filler

    The filler can accurately fill drink which does not contain gas, such as white spirit fruit wine, juice and fruit syrum. It can also fill other liquid such as vinegar, milk, and pesucide. It has advantages of no broken bottle, no clepsydra, and convenient maintenance and others. It also has overload protection and LCD. As the filler works in fully sealed condition and no pollution comes. It meets the requirements of FOOD Stuff Sanitation Law.



    The machine is used in washing can, filling juice,milk,non-gas beverage and sealing.



    Keywords

    1. aluminum can filling machine

    2. juice can filling machine

    3. can filling machine



    Features:

    1). Compact structured, good-looking, easy to operate and highly automated.

    2). Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.

    3). Bottles are transferred in the manner of clamping neck. Bottles can be changed through some replacement of steel clamps, which instead of adjusting the height of machine.

    4). Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.

    5). Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.

    6). Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.



    Technical parameter

    Model QSG16 can rinsing machine GFP-12 FXZ-1
    Production capacity 2000 2000 2000
    Bottle/can type ∅40-80 ∅40-90 H50-340 ∅50-67 H90-200
    Power(kw) 0.55 1.1 0.75
    Overall dimensions(mm) 1900*530*1100 810*1050*2050 930*700*1850
    Weight(kg) 480 500 500



    Some picture show

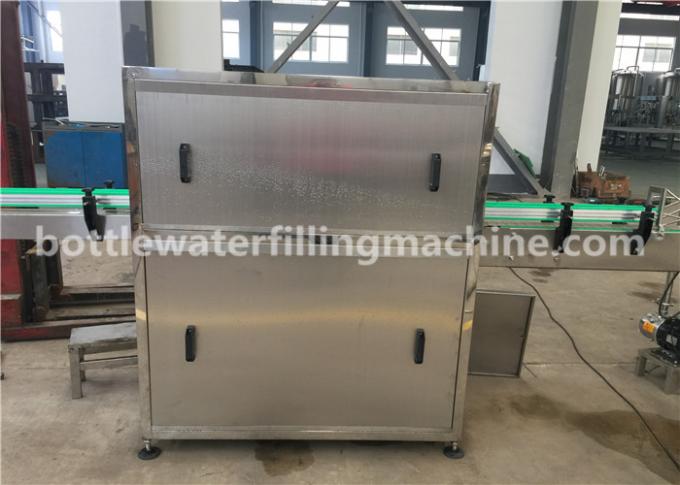

    Rinsing part

    Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine

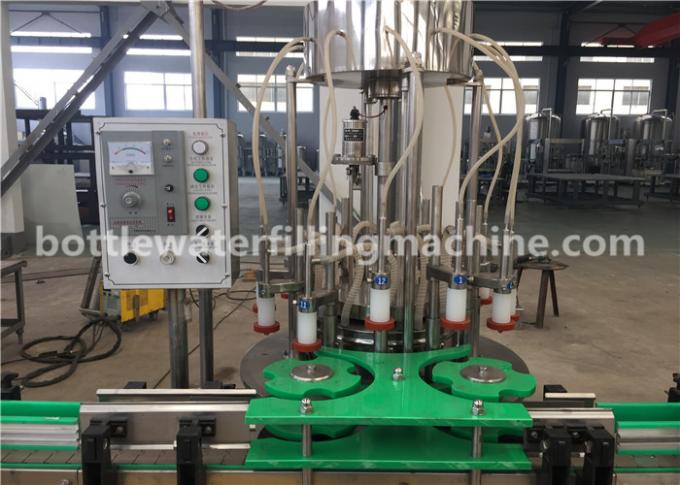

    Filling part

    Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine

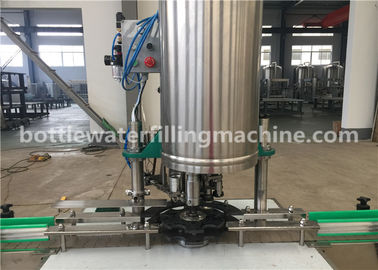

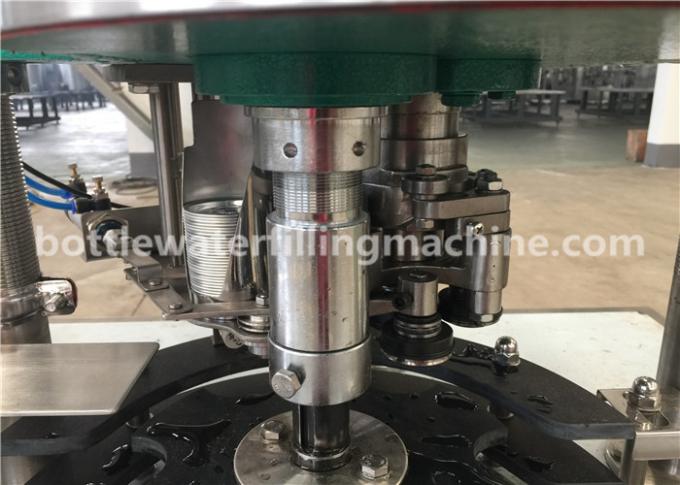

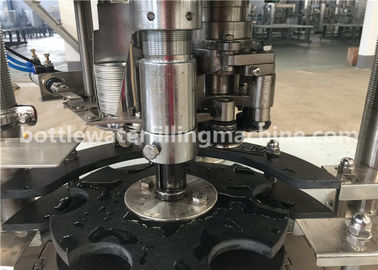

    Capping part

    Juice / Milk Beverage Filling Machine , Aluminum Can Filling Sealing Machine
