Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line

Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line

    • Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line
    • Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line
    • Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line
    • Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line
    • Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line
  • Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: QS-12 CYG-12 FXZ-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $8,700-500,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 2000 Bottles Per Hour Dimension(L*W*H): 1100*1050*1800mm
    Bottle Type: PET Plastic Glass Bottle Filling Material: Mineral Water,pure Water,juice,tea Etc
    Function: Bottle Washing Filling Capping Color: Silver Gray
    Condition: New Bottle Height: 160-300mm

    Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine /





    Production Line










    Introduction


    The production line inculds QS auto washer,CYG often pressure filter,FXZ cap turining machine,SSJ

    carrying machine etc.The key parts for washing,filling and sealing are made of high quality stainless

    material,with the features of advanced technology,completed system,reliable performance,easy in

    operation,etc.



    If you want to see how the machine works,please click here https://youtu.be/uoIf23uSlJg




    Keywords

    1. Small scale filling machine

    2. pure water filling machine,mineral water filling machine

    3. water filling machine

    4. beverage filling machine

    5. water production line

    6. pet bottle filling machine



    Application

    1. This CGY Series Wash-filling-capping 3-in-1unit is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. It can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

    2. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

    3. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

    4. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

    5. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

    6. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

    7. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.


    Technical parameter

    Model QS-12 CYG-12 FXZ-1
    Production capacity 2000BPH
    Number of washing head 12
    Number of filling head 12
    Number of capping head 1
    Diameter of bottle 62-100mm
    Height of bottle 160-300mm
    Bottle volume 250,375,500,625ml
    Bottle/can type PET,PVC,Plastic bottle
    Filling pressure 0.2-0.3Mpa
    Filling temperature Normal temperature
    Cap type Screw type
    Power 2.25kw


    Some picture show

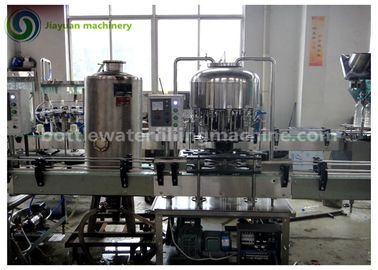

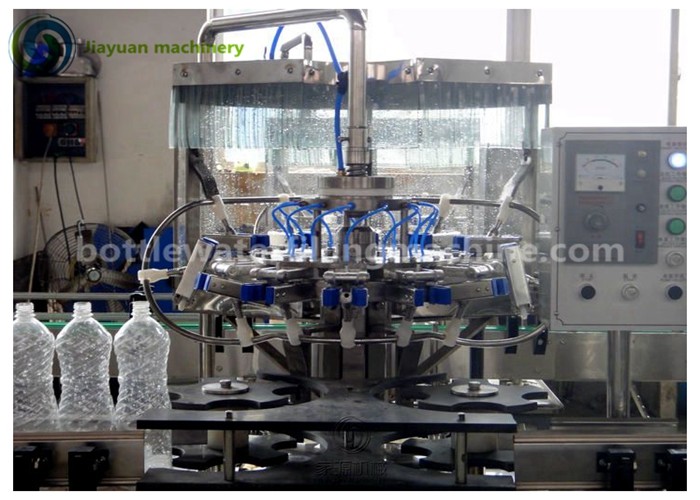

    Washing part

    Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line



    Filling part



    Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line

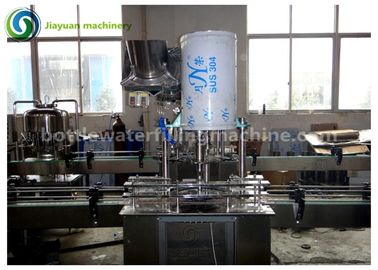

    Capping part

    Small Scale 1L Pet Bottle Mineral / Pure Water Filling Machine / Beverage Production Line



    COMPONENTS BRAND LIST

    1 PLC MITSUBISHI
    2 Frequency converter MITSUBISHI
    3 Contactor DELIXI
    4 Circuit breaker DELIXI
    5 Touch screen WEINVIEW
    6 Buzzer DELIXI
    7 Cylinder stator and Pneumatic system AIRTAC
