Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz

Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz

    • Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz
    • Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz
    • Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz
  • Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: BCGF8-8-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: pls inquiry
    Packaging Details: standard wooden cases
    Delivery Time: 35 working days
    Supply Ability: 99 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Glass Bottle Beverage Filling Machine Function: Rising Filling Capping
    Capacity: 3000B/H Suitable Bottle: Glass Bottle
    Suitable Cap: Crown Cap, Aluminum Screw Cap, Ring-pull Cap Filling Material: Juice, Water, Tea, Non-carbonated Drink
    Transducer: Mitsubishi Voltage: 380v 50hz

    Green Tea, Black Tea, Juice, Glass Bottle Filling Machine/ Production Line Price



    Description

    This machine is for glass bottle beverage production, it is a monoblock one, integrates rising filling and capping 3 function in one unit. it's rough capacity is about 3000B/H (for 500ml glass bottle). It adopt normal pressure filling, suitable for non-carbonated beverage, like water, juice, tea, milk and so on.



    If the bottle neck diameter is same, it can be used to fill different size bottle, only by changing the guiding board.



    Parameter

    model BCGF8-8-3
    Suitble bottle Glass bottle
    Suitable cap Crown cap, aluminum screw cap
    Filling material Water, juice, tea, milk
    Fillingi type Normal pressure filling
    Rising/filling/capping heads number 8/8/3
    capacity 3000B/H(for 500ml)
    voltage 380V 50Hz or customized
    Material SUS304
    Dimension 1900*1500*2200mm
    weight 2000kg






































    cap elevator

    Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz

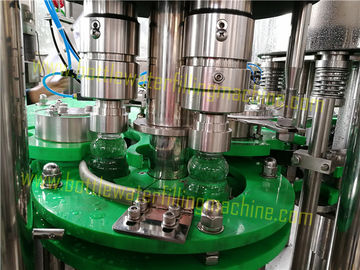

    inner look

    Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz

    out look

    Green Tea , Black Tea , Juice , Glass Bottle Filling Machine 380v 50hz



    beverage production complete line:

    1. water treatment system;

    2. beverage mixing system;

    3. filling system;

    4. End-line package sysem

    We can supply all these plants at competitive price, just for a furthur learn... ...
