HDPE Bottle Juice / Milk Beverage Hot Filling Machine PLC Control

HDPE Bottle Juice / Milk Beverage Hot Filling Machine PLC Control

    • HDPE Bottle Juice / Milk Beverage Hot Filling Machine PLC Control
    • HDPE Bottle Juice / Milk Beverage Hot Filling Machine PLC Control
    • HDPE Bottle Juice / Milk Beverage Hot Filling Machine PLC Control
    • HDPE Bottle Juice / Milk Beverage Hot Filling Machine PLC Control
  • HDPE Bottle Juice / Milk Beverage Hot Filling Machine PLC Control

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE SGS ISO
    Model Number: ACGF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 800,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 work days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Voltage: 380V 50Hz
    Control System: PLC Control Capacity: 8000-10000BPH
    Filling Head: 24 Foil Sealing Head: 8
    Application: Beverage, Chemical, Food Packaging Material: Paper, Plastic, Wood

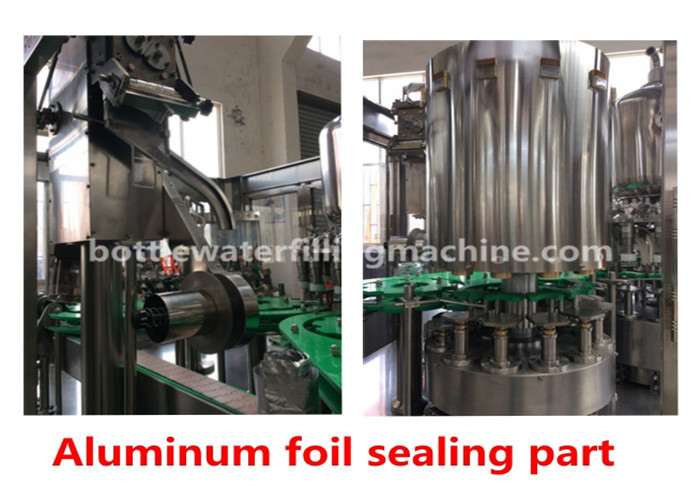

    HDPE Bottle Juice / Milk Beverage Hot Filling Aluminum Foil Sealing





    Machine



    Video show:https://youtu.be/uoIf23uSlJg


    Machine introduction:

    This machine is researched and developed on the base of importing ,assimilating and absorbing the



    advanced technology of the same kind of domestic and foreign products, combining several-year-



    production experience of the company. The machine collects washing, filling and sealing together. It is



    driven by a transmission motor. It has advantages, such as high automation level, compact structure,



    beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous



    production capacity and others. It is an ideal no-gas liquid filling production equipment in the country. It is



    mainly suitable for filling and capping of round or square polyester bottles. According to the demands of



    different specifications of users, it is only changed a little in design to meet the user’s demands.




    Usage



    It’s widely used for food and pharmaceutical package,especially it’s an ideal equipment for various plastic



    bottle package and seal in milk packages,removing foam and high effective sealing finished products.It



    reasonably adopts the double-slope cover-punching technology and largely developed the foil usage.It



    adopts the integral motor design and the first-rate driving,so the running is steady and flat.





    Feature




    1. The filling type is negative filling. The whole process is negative filling, auto make aluminium foil cap,

    electrical heating sealing foil or screw capping(optional).

    2. The Valve, PLC control system, photoelectric temperature control, pneumatic control and automatic

    lubricating is adopted Germany, America, Japan etc famous brand.

    3. The milk filling and aluminium foil sealing machine is good choose for middle and small milk ,juice,tea

    factory


    Technique parameter

    Name ACGF24-24-8
    Productivity 8000-10000BPH
    Rinsing Head 24
    Filling Head 24
    Capping Head 8
    Bottle Volume 250ml~5000ml±10ml
    Bottle Diameter φ50-92mm
    Bottle Height 150-310 mm
    Filling Tolerance ±2%
    Cap Size 28mm and 30mm PE Standard Caps
    Air Pressure 0.6MPa
    Air Consumption 500 L/min
    Gas Consumption 0.3 m3/min
    Motor Power 7.68kW
    Voltage 380V
    Dimension (L×W×H) 2750*2180*2200mm
    Weight 4000kg
    Filling Principle Gravity Filling
