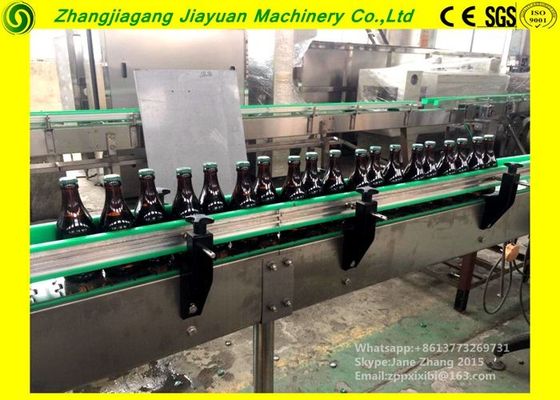

Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw

Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw

    • Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw
    • Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw
    • Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw
    • Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw
    • Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw
  • Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: QS-12 DY-12 YG-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: $6,000-20,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 2000 Bottles Per Hour Dimension(L*W*H): 1100*1050*1800mm
    Bottle Type: PET Plastic Glass Bottle Filling Material: Gas Liquid
    Function: Bottle Washing Filling Capping After-sales Service Provided: Engineers Available To Service Machinery Overeas
    Weight: 1600kg Warranty: 1 Year For Free



    Glass bottle beer filling machine for small scale



    split carbonated production line1.1kw


    Specifications:
    Glass bottle beer filling machine for small scale split carbonated production line1.1kw
    1.Model:QS-12 DY-12 YG-6
    2.beer filling machine,beer production line

    3.bottle filling machine,
    4.glass bottle filling machine,small scale filling machine

    Introduction:
    Glass bottle beer filling machine for small scale split carbonated production line1.1kw
    QS-12 DY-12 YG-6 machine includes QS automatic washer,DY balanced pressure filler,FXZ cap turning machine,SSJ carrying machine ect.The key parts are made of stainless steel,with the features of reasonable stucture,advanced technology,easy in operation,widely used,etc,it's the ideal machine for middle and small beverage factory

    QS-12 Rotary Bottle Washer
    1.Adopt 1990s' technology of West Geramny SEN corp,also combining the condition of our country.
    2.It has high efficiency and good washing result by adopting continuously spraying and washing method.
    3.It is mainly used to clean the plastic glass bottles of beverage.
    Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw

    DY-12 Balanced Pressure Filller
    1.The filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and with international advanced level.
    2.It is mainly usde for filling gas-containing drinks,such as aerated water,cola,sparkling wine,fruit tea and so on,It is advanced in construction,steadly in performance,safe in operation,easy in maintenance high in production effciency,and the speed can be regulated infinitively.
    3.The filler is the ideal choice for drink factories of small and middle type.
    Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw

    YG-6 Automatic Capper
    The capper is the automatic capping and sealing equipment for bottled aerated water,sparkling wine,juice,health drink,soy sauce,vinegar and wine,production enterprises.
    Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw

    Main technical parameter

    Model QS-12 DY-12 YG-6
    Production capacity 2000BPH
    Number of washing head 12
    Number of filling head 12
    Number of capping head 6
    Diameter of bottle 62-100mm
    Height of bottle 160-320mm
    Bottle volume 250,375,500,625ml
    Bottle/can type glass bottle,PVC bottle,POP-top can
    Filling pressure 0.2-0.3Mpa
    Filling temperature 2-6.C
    Cap type crown type
    Power 1.5kw


    Floating ball(used for liquid level testing)
    Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw

    Washing and filling part on-off controller
    Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kwLarge Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw

    we can fill such more type beverage

    Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw



    Packing&Shipping

    Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw



    Payment

    30% deposit against the contract by T/T should be paid before the order;

    70% balance should be paid off by T/T after inspection before delivery;

    Delivery time

    30 days after received the down payment;

    Training

    Against the requests of the Buyer, the Seller’s technician could train the Buyer’s operators in the Buyer’s factory in the periods of installing & adjusting;



    Company Information

    Large Glass Bottle Filling Machine / Split Carbonated Production Line 1.1kw
    Jiayuan company was established in1997,and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry.we have such as CE,ISO etc certification.
    We can provide our customer with the machines as following:
    1.Water bottle filling machine/whole production line
    2.Juice filling machine/whole production line
    3.Carbonated drink filling machine/whole production line
    4.Small scale beverage filling machine/production line(Such as water,juice,soda water,cola,beer...)
    5.1-5 gallon water barrel filling machine/production line
    6.Glass bottle filling machine
    7.Can filling machine
    8.Water treatment system/water purifying machines
    9.Juice or carboanted drink mixing system.
    10.End-of-line packaging machines

    If you're satisfied with our machines,and want to get the detailed informations,please leave the information of your bottle size,your capacity,then contact me by following ways:
