Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
|Place of Origin:||CHINA, jiangsu|
|Minimum Order Quantity:||1set|
|Price:||USD 4000-40000 per set|
|Packaging Details:||standard wooden cases|
|Delivery Time:||35 working days|
|Supply Ability:||100 set per year|
|Name:||Water Bottling Machine||Function:||Rising Filling Capping|
|Suibtable Bottle:||330-2000ml PET Bottle||Filling Material:||Mineral Water, Pure Water|
liquid bottle filling machine,
water bottling equipment
Machinery and equipment for mineral plant lemon water filling machine cost
Complete juice bottling line is used for filling and packing juice/tea into pet bottle or glass bottle,the whole line can fill from 300ml-2000ml bottle size with same diameter. The packing type can be PET bottle/Glass bottle/Can. The juice filling machine also can filling water.
Juice filling machine use hot filling system(high temperature with 85-90 to fill) The capacity we can do is from 1000BPH -20000BPH based on 500ml,we can design the bottle layout as customer required,and supply turnkey factory layout.
|Number of washing, filling and capping heads||12-12-5||18-18-6||24-24-8||32-32-10||40-40-12||50-50-12||60-60-15||80-80-20|
|suitable bottle specification(mm)||φ=50-110=170 330-2250ml|
|Washing pressure(kg/cm 2 )||2-3|
|Motor power(kw)||Main motor
|Overall dimensions (mm)||2400×1650
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

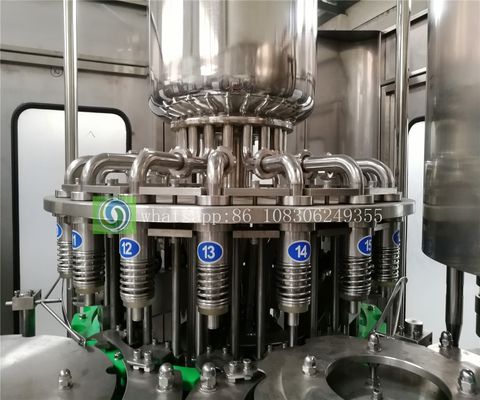

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.
about our company
We are the real factory in China which produces filling machine and package machine and other auxiliary equipment professionally.
We can provide beverage production line as below:
1. bottling minereal/pure water production line;
2. barrel mineral/ pure water production line
3. bottling carbonated beverage production line (like coca cola);
4. bottling juice production line;
5. canning beverage production line;
6. glass bottle beer production line;
7. milk/tea filling&package line;
8. oil filling&package line;
JIAYUAN is always ready to fulfill your company’s needs according to your business goals.
contact person: Alice chen
tel/whatsapp: 86 18306249355
(If you want to get your precise quotation,pls leave your capacity.thanks!)
