Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
|Place of Origin:||JiangSu China|
|Minimum Order Quantity:||1 set|
|Price:||USD 6000-20000 per set|
|Packaging Details:||PE film and wooden case|
|Delivery Time:||30 days after payment|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10 sets per month|
|After Sale Service:||Engineers Available To Service Machinery Overseas||Dimension:||5100*2600*2400mm|
|Driven Type:||Electric||Automatic Grade:||Automatic|
liquid bottle filling machine,
water bottling machine
Small 304 welded carbonated drink filling machine 3000kg Weight
Briefs on product
a. This type of filling machine is for the water production line.
b. Heavy duty 304 stainless steel welded frame, 316 stainless steel hygienically processed filling nozzles and capping heads
c. Siemens PLC system along with Omron photoelectric sensor make this machine smart.
d. 7-inch touch screen tames this steel beast perfectly.
e. The capacity is around 14000 bottles per hour.
f. The filling nozzle stroke is adjustable to the different volumes of bottle.(200ml-2500ml)
g. Faster and more effective product and bottle changeover reduces your product losses.
h. Hygienic design for easy resource-saving sanitizing.
Having been proved by certificates like SGS, CE.
Detailed Description and Images

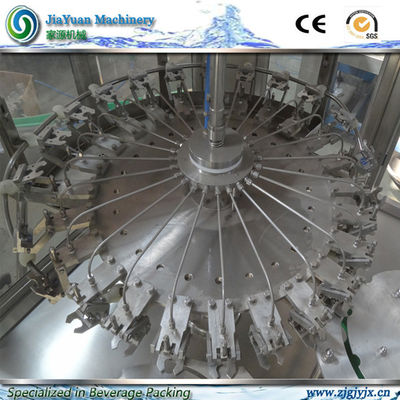

Rinsing: The rinser clutches bottles from the starwheel, holding bottles by their necks. gradually turn them upside down while rotating, It will send the bottles to the rinsing area where spraying water come from up above, washing bottles throughly.small juice filling machine
Isobaric Filling: In order to avoid any kind of shape change while doing hot filling, The bottles will be grabbed at their necks. Once bottles in the right position, those filling nozzles move down half inside the bottles. The outlet channel of the filling valve opens up, and the hot liquid(tempereture ranges from 85 to 95 degrees celsuis) flows down. As the bottles getting filled up, the inlet channel opens up to allow the superfluous amount to flow back. This whole process makes sure bottles get fully filled.
The temperature of the liquid is monitored, and the backup recirculation system allows the liquid to flow back from the filling station once the temperature drops down below the pre-set.
Capping: Bottles will be sent over to the capping station, Cap sorter will put a cap onto each bottle, and then thephotoelectric sensor enhanced capper will do the swiveling motion to tighten the cap.
a. Plier-like clutches could easily hook up bottle's neck without doing any damage.
b. Neck-catching design makes it fit bottles with a large range of size.
c. Made of stainless steel where durability comes from.
a. 316 stainless steel made filling nozzles, sanitarily reliable and durable.
b. Nozzle stroke can be adjusted through a certain range, making the filler variably fit different bottle volumes(200ml-2500ml).
c. Stabilizer contacting bottle's bulk down below is made of polymer materials.
d. Enhanced by the photoelectric sensor, no bottle no fill.
e. Bulged constituents make nozzle easy to clean.
a. Made of stainless steel 316, ensuring durability.
b. Caps are put onto the bottles by the cap sorter upstream.
c. Enhanced by the photoelectric sensor, no bottle no cap.
d. Easily adjustable cap torque settings make it smooth to operate.
e. Simple and easy-to-change parts facilitate the adjustment between different sizes of bottles and caps.
We locate in ZhangJiaGang, a small city near ShangHai. We have several certificates such as CE, SGS, etc. we have a batch of decent manufacturing facilities, professional staff, diligent and farsighted leadship. Our machines are widely sold domestically and abroad. We've been majoring in complete beverage production line, including pure/mineral water production line, non-carbonated drinks production line, carbonated drinks production line.
Packaging and Shipping
1. If you are interested
a. Contact us for more detailed info, We are willing to answer your questions.
b. We highly recommend you come to our factory to check out the machine personally, You would be picked up and treated with a warm reception.
2. Customized service
a. We could design and build the machines according to your requirements(material, power, filling method, type of bottle, some certain modules, etc). Meanwhile, we could also give you professional suggestions.
b. We also offer turnkey project, help you design production-line layout and train skilled employees who are able to operate properly.
3. After-sales service
a. We set your shopping experience as our top priority, we will produce as exactly you require and let you get your machine as soon as possible.
b. Our engineers will arrive at your factory right after the machine's arrival. They will help install the machine and teach your employees how to operate properly.
c. We provide one year warranty with free spare components.
