Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE SGS ISO |
| Model Number: | CGF16-12-6 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $15,000 - 1,000,000 / Set |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30 Working Days |
| Supply Ability: | 15 Set/Sets per Month |
| Machine Type: | Automatic Filling Machine | Condition: | New |
|---|---|---|---|
| Packaging Type: | Bottles | Packaging Material: | Paper, Plastic, |
| Driven Type: | Electric | Voltage: | 380V/50HZ |
| Power: | 4.23kw | Dimension(L*W*H): | 2100*1500*2200mm |
| Capacity: | 2000-4000b/h | ||
| High Light: | liquid bottle filling machine,water bottling equipment |
||
World level technical design bottle water filling plant with ISO certified
Introduction
World level technical design bottle water filling plant with ISO certified
1.bottle water filling plant
2.No bottle no filling,no cap no capping
3.CE,ISO,SGS
4.Guaranteed quality
Features:
World level technical design bottle water filling plant with ISO certified

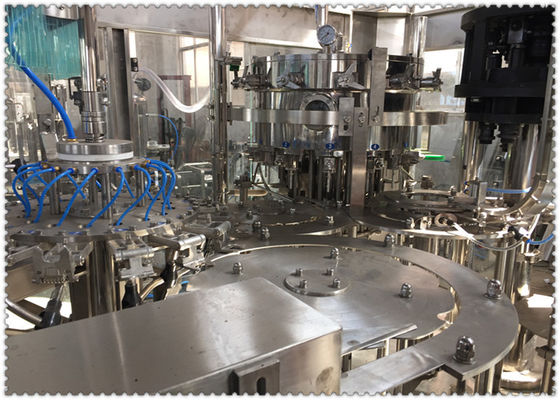

This water filling machine is with bottle rinsing, filling and capping monobloc for drinking water (non-carbonated) filling.PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our Zhangjiagang Jiayuan machinery company .
washing part
PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck postion, avoiding bottle mouth thread comtamination caused by rubber gripper block of a traditional bottle clamp. This part is made of SUS 304 stainless steel, the bottle clamp is hygienic and durable.
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and aso saves rinsing water.
All sliding bushes of lifting device use anti-corrosion maintenance free bearing and the rinser is driven by driving system positioned inside machine frame via gear transmission.
filling part
Rotary wheel fully made of stainless steel SUS 304
Gravity filling method
Filling valves aer reasonably structured with accurate filling.
Bottle go up and down in the function of cam through elevator to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
capping part
Capper should have highest precision, influence very much with stability and realiable of the filling monoboc. Our capper
features as follows:
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspection system is applied to control on-off of elevator.
| Model | CGF16-12-6 |
| Production capacity(500ml)(b/h) | 2000-4000 |
| Filling precision | ≤±5MMLiquid Level |
| Polyester bottle standard(mm) | ≤±5MM(Liquid Level) |
| Height | (Height):150-320 |
| Suitable cap shape | Plastic Screw Cap) |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 5 |
| Dripping bottle position | 3 |
| Gas source pressure(Mpa) | normal pressure |
| Gas consumption(m3/mm) | 0.3 |
| Total power | 4.23 |
| Total weight | 2000 |
| Dimension(L*W*H) | 2100*1500*2200 |
FAQ
Q : How to get your suitable machine or production line?
A : Find our products through zhangjiagang Jiayuan machinery co ., ltd . in google, bing, yahoo, alibaba . com ect .
Enquiry : Contact us by email , phone call , fax , instant messenger (trade manager , MSN , skype , whats app) and let us know your enquiry.
Disscussion : Specify the items you desire , confirm specification ; OEM/ODM consultation .
Q : What is the type of your company?
A : We are the professinal beverage machinery manufacturers to produce bottled liquids,drums,filling machine,installed cup carbonated drinks,such as filling machine. We not only sell machiners, but also sell our brand and service .
Q : Do you have technical support after we purchased your machines?
A : Definitely ! We will arrange our professional engineers to go aboard to your factory (company limited) , they will teach you how to install and maintenance the machines which you purchased . or help you to fix machine when it has problems .
Q : If you buy our machines , can you offer us wear-out spare parts?
A : No problem ! We will offer you 1 year free wear - out spare parts . As well as 1 year warranty . Once your machines broken or doesn't work within 1 year and you can't solve it . Firstly , we will try to help you to find problems from your words description by phone or other communication tolls . Secondly , if the phone solutions still not work , our engineers will go to your factory (company limited) to solve it . Meanwhile they will
teach you the related experiences for fixing .
