Soda Carbonated Drink Filling Machine Carbonated Bottle Filler / Canning Machine

Soda Carbonated Drink Filling Machine Carbonated Bottle Filler / Canning Machine

    • Soda Carbonated Drink Filling Machine Carbonated Bottle Filler / Canning Machine
    • Soda Carbonated Drink Filling Machine Carbonated Bottle Filler / Canning Machine
    • Soda Carbonated Drink Filling Machine Carbonated Bottle Filler / Canning Machine
    • Soda Carbonated Drink Filling Machine Carbonated Bottle Filler / Canning Machine
  • Soda Carbonated Drink Filling Machine Carbonated Bottle Filler / Canning Machine

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: DGCF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 2600-85000 / set
    Packaging Details: wooden case
    Delivery Time: 30work days
    Payment Terms: T/T
    Supply Ability: 18 sets per month
    Contact Now
    Detailed Product Description
    Service: Oversea Service Warranty: 1year
    Model: DCGF32-32-8 Control: Touch Screen
    Material: SUS304 Color: Silvery White
    Filling Volume: Adjustable Feature: High Quality
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine



    3000kg Glass Bottle carbonated bottle filler/canning machine soda carbonated drinks





    Introduction



    The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.



    The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation, etc.

    Carbonated pulp filling equipment adopts bottle neck hoiding transmission technology to realize fully automatic rinsing, pulp filling, carbonated filling and cap screwing.It employs single cavity plunger type. It is equiped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production.







    Features



    Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.





    High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.



    Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.

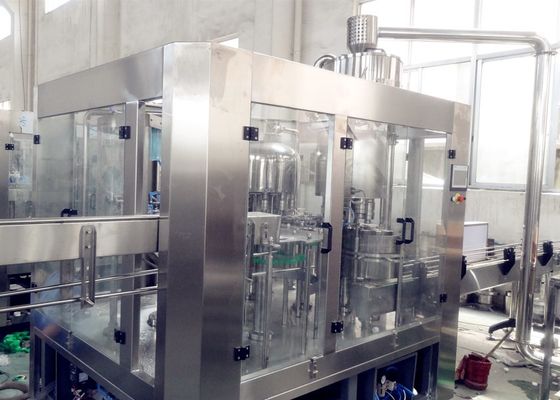

    Soda Carbonated Drink Filling Machine Carbonated Bottle Filler / Canning Machine 0



    RINSING SECTION

    Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

    Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

    Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.







    FILLING SECTION

    The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.

    The filling valve material is SUS304

    The filling system has liquid level automatic control.

    Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.

    Bottle is conveying by the wheel in the filling part.

    The juice or other hot beverage can be backflow by return tank to control filling temperature.







    CAPPING SECTION

    Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.





    Technical Data

    Model
    DCGF32-32-8
    Heads of washing, filling, sealing
    32-32-8
    Production capacity(bottle/hour)
    12000-15000
    Suitable bottle height(mm)
    H=170-320,D=50-100(330-1500ml)
    Spraying pressure
    0.25-0.3MPa
    Total Power(kw)
    5.5
    Overall dimension(L×W×H)(mm)
    3800×2800*2650
    Weight(kg)
    6800





    Company Information


    Zhangjiagang Jiayuan Machinery Co., Ltd. is located in Zhangjiagang city, which is near to Shanghai. We professionally research, develop and manufacture beverage packaging machines. We are a high technology enterprise of Jiangsu Province, and the best supplier of China beverage packaging machinery area. We are dedicated to the most advancement technology of beverage packaging machinery, and have always been conducting good up-to-date technical communication and exchange with leading Italy, Germany, France packaging companies. We have a strong technology team for beverage packaging machines’ manufacture. We provide marketing analysis, project budget, equipment technical configuration, and training for operator etc.


    carbonated bottle filler/canning machine soda carbonated drinks with mature technology



    Our Services


    The sample service

    1.We can send you the video of the running machine.

    2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.

    3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.

    Customized service

    1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

    2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.

    3.We are certificated by many famous certificated authories.

    After-sales service

    1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

    2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they canoperate the machine well.

    3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

    4.We provide one year warranty with spare parts free.
