High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles

High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles

    • High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles
    • High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles
    • High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles
    • High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles
  • High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: DGCF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 1500-85000 / set
    Packaging Details: wooden case
    Delivery Time: 30work days
    Payment Terms: T/T
    Supply Ability: 15 sets per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Color: Silvery White
    Feature: High Speed Filling Volume: Adjustable
    Filling Material: Flow Liquid Control: Touch Screen
    Packing: Wooden Cases Service: Engineer Oversea
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine


    electric driven type carbonation device/carbonation equipment with engineer guided




    Products Introduction

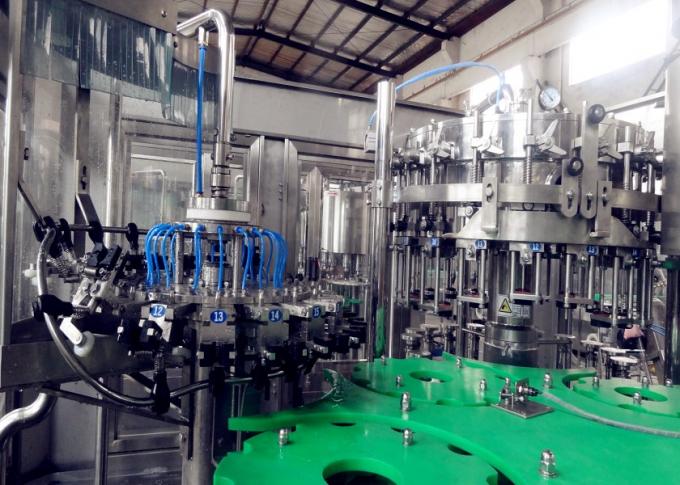

    The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.


    Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle.








    Characteristics

    • The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles.
    • Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.
    • The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation, etc.It is equiped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production.



    High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles 0

    Technical Data

    Model
    DCGF32-32-8
    DCGF40-40-40
    DCGF48-48-12
    DCGF60-60-15
    Heads of washing, filling, sealing
    32-32-8
    40-40-10
    48-48-12
    60-60-15
    Production capacity(bottle/hour)
    12000-15000
    16000-18000
    20000-24000
    24000-28000
    Suitable bottle height(mm)
    H=170-320,D=50-100(330-1500ml)
    Spraying pressure
    0.25-0.3MPa
    Total Power(kw)
    5.5
    7.5
    11
    15
    Overall dimension(L×W×H)(mm)
    3800×2800*2650
    4000×3300*3400
    4850×3650
    *3300



    6500×5400
    *3500
    Weight(kg)
    6800
    8500
    1000


    High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles 1

    High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles 2


    Washing part of bottle washing filling capping machine

    a) Rotary pan is made of stainless steel 304.

    b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.



    Filling part of bottle washing filling capping machine

    a) Rotary pan is made of stainless steel 304

    b) The way of filling is gravitation filling.

    c) The filling valve is adopted best stainless steel 304

    d) The structure of filling valve is reasonable, the amount is correct

    e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle



    Capping part of bottle washing filling capping machine

    Capping machine is one of the highest precision machines, which greatly affects the reliability of device and the defective rate of product. The characteristic is as follows:

    a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can

    stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

    b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.



    High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles 3
