Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | CHINA, MAINLAND |
| Brand Name: | jiayuan |
| Certification: | CE,SGS |
| Model Number: | DGCF |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 22000 SET |
| Packaging Details: | WOODEN |
| Delivery Time: | 30WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 15 SETS PER MONTH |
| Packing Material: | Wooden, Plastic | Volatge: | 220v/380v |
|---|---|---|---|
| Warranty: | 1year Free | Service: | Oversea Service |
| Driven Type: | Electric | Material: | SUS304 |
| High Light: | Carbonated Soft Drink Filling Machine,CSD Filling Machine |
||

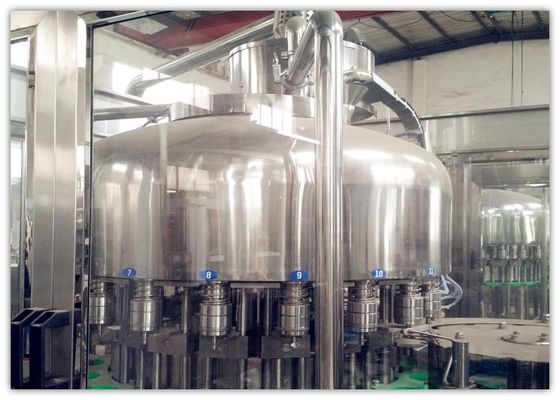

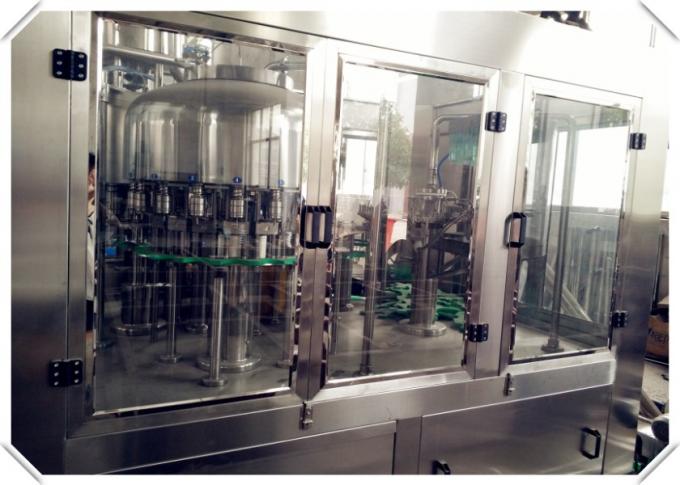

2000kg power 5.03 carbonated drink filling line/
PLC control carbonated drinks making machine
Introduction
Drink Filling Machine combines washing, filling and rotary capping functions in one unit, it is a fully automatic and high efficiency liquid packing equipment. It is suitable for packing beverage containing gas. Its performance is as follwing: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material.
Using programmable controller to realize fully automatic control from bottles entering to finishing packing. Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting equal pressure filling principle and current spring valves in order to assure beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
Technical parameters
| Item | DCGF24-24-8 | DCGF32-32-10 |
| Capacity | 8000bph(500ml) | 15000bph(500ml) |
| Rising heads | 24 | 32 |
| Filling heads | 24 | 2 |
| Capping heads | 8 | 10 |
| Bottle Diameter | Commonly 50-110mm (can adjustable) | |
| Bottle Height | Commonly 150-340mm(can adjustable) | |
| Filling pressure | 0.15-0.35Mpa | |
| Rising pressure | 0.2-0.25Mpa | |
| Overall size | 2780*2200*2350 | 3600*2650*2350 |
| Weight | 4.5t | 5.5t |
Characteristics
a. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
b. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
c. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
d. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
e. Host adopts advanced PLC automatic control technology, the key electrical component from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Services
1) One year warranty for the whole system.
2) Free equipment installation and debugging.
3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4) We can provide internship service and help you train the operator and mechanic.
5) Free beverage production technology and process configuration.
6) We can help you to design the product line, workshop and provide turn-key project.
