Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment

Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment

    • Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment
    • Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment
    • Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment
    • Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment
  • Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment

    Product Details:

    Place of Origin: CHINA, MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: DGCF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 2300-22000 SET
    Packaging Details: WOODEN
    Delivery Time: 30WORK DAYS
    Payment Terms: T/T
    Supply Ability: 15 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Packing Material: Wooden, Plastic Color: Silvery White
    Volatge: Customized Warranty: 1year
    Driven Type: Electric Control: PLC Touch Screen
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine







    Automatic Carbonated Drink Filling Machine/

    Carbonated Drink Production Line for Glass Bottles



    Introduction

    rinsing machine



    1) The rotary wheel is a fully AISI304 stainless steel welded structure.



    2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.



    3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water.



    4) Covering of bottle clamps and elevator are product of IGUS



    5) The rinse is driven by driving system positioned inside machine frame via gear transmission









    filling machine

    1) The filler is designed and manufactured with application of Italy technology, providing



    hardware guarantee for securing product quality and reducing loss.



    2) Rotary wheel are fully made of stainless steel AISI304.



    3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.



    4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.



    5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free



    bearing.



    6) Hydraulic pump is float-ball controlled.



    7) The filler is driven by driving system positioned inside machine frame via gear transmission

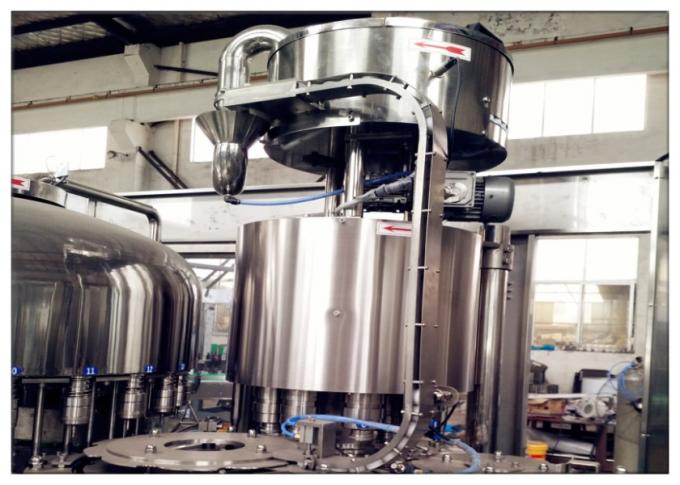

    capping machine



    1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.



    2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.



    3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.



    4) Highly effective acentric way for cap sorting to reduce the abrasion.



    5) It has the check-up device to control the cover lift.





    Features



    Adopting the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.  Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains. Host adopts advanced PLC automatic control technology, the key electrical component from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

    The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.



    Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment 0

    Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment 1

    Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment 2



    Technical parameters



    Item DCGF18-18-6 DCGF24-24-8 DCGF32-32-10
    Capacity 5000bph(500ml) 8000bph(500ml) 15000bph(500ml)
    Rising heads 18 24 32
    Filling heads 18 24 2
    Capping heads 6 8 10
    Bottle Diameter Commonly 50-110mm (can adjustable)
    Bottle Height Commonly 150-340mm(can adjustable)
    Filling pressure 0.15-0.35Mpa
    Rising pressure 0.2-0.25Mpa
    Overall size 2450*1800*2350 2780*2200*2350 3600*2650*2350
    Weight 3.5t 4.5t 5.5t





    Automatic Carbonated Water Filling Machine , Glass Bottles Soda Bottling Equipment 3
