Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
|Place of Origin:||CHINA,MAINLAND|
|Minimum Order Quantity:||1 set|
|Price:||USD 22000-41000 set|
|Delivery Time:||30work days|
|Supply Ability:||15 sets per month|
|Service:||Oversea Service||Color:||Silvery White|
|Warranty:||1 Year||Packing Material:||Wooden|
|Name:||Juice Filling Machine|
juice bottling equipment,
pet bottle filling line

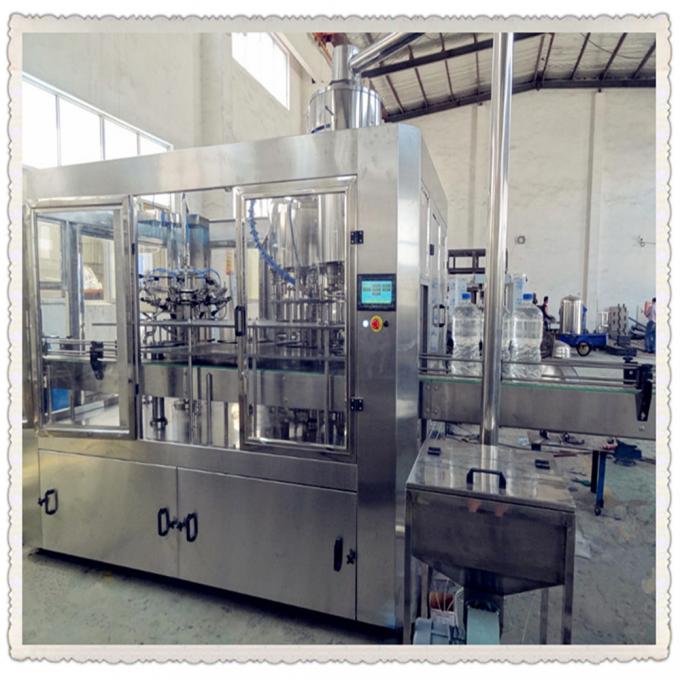

3000kg PET Bottle Filling Machine/ 6000bph PCl Control Fruit Juice Package Machines
Rotative rinsing turret one treatment, fixed nozzles, with grippers.The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design. Product bowl is to reduce the loss of heat. If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles.The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
|Applicable Bottle Type||Bottle DiameterØ50- Ø92mm; Height150-310mm; Volume330-1500ml|
|Applicable Cap Shape||Plastic Screw Cap|
|Gas Source Pressure(Mpa)||0.6|
Jiayuan company was established in 1997, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have such as CE,ISO etc certification.
We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry.
The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users.
