Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine

Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine

    • Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine
    • Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine
    • Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine
  • Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: CGFB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 10000-80000 SET
    Packaging Details: wooden case
    Delivery Time: 30work days
    Payment Terms: T/T
    Supply Ability: 15 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Water Filling Machine Voltage: Customized
    Driven Type: Electric Application: Food, Beverage
    Control System: PCL Control Certification: CE,SGS
    Name: Filling Machine Processing Type: Water
    High Light:

    liquid bottle filling machine

    ,

    water bottling machine



    Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine







    Introduction



    The mineral pure(purified water) 4-in-1 monobloc filling machine is mainly used for washing, fillling and sealing non-aerated carbon dioxide drink such as mineral water, pure water etc.

    Bottle transportation adopts the neck-held technology ih the whole process with grippers instead of the traditional starwheel,it only needs to change or adjust a few spore parts without changing the equipment height while changing the bottle size,special designed stainless steel rinsing is solid and durable,and it won't touch the bottle screw part,which avoids second contamination.









    Application

    This water filling machine is used in the production of non-carbonated drink, such as mineral water and purified water, etc.

    1. The suspending bottle-neck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of different types of bottles easily.

    2. The new generation of stainless steel grab is adopted and the grabs have no contact with the arew above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

    3. The advanced gravity filling technology used in this machine makes the filler quick,steady and accurate.

    4. Magnetic torque is used for screw capping,and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.

    5. Advanced technologies,such as human-machine interface touch-screen and PLC program control are adopted in this machine.

    6. All parts that directly contacting with water are made of high stainless steel. The critical electrical components are from famous international companies, such as mitsubishi, omron and other famous brands.

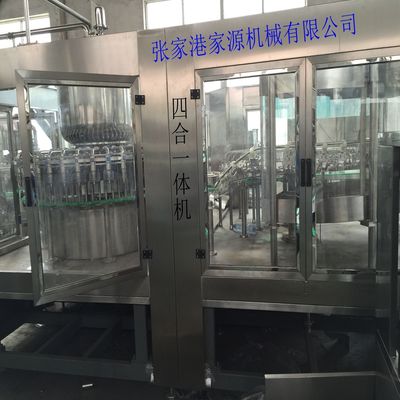

    Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine 0

    Feature

    • The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
    • Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
    • Spring type rinsing catcher can wash both inside and outside of the bottle
    • High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
    • Magnetic powered cap device ensures tightness and prevents damage of the caps
    • Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
    • Built-in safeguard mechanism ensures the safety of operator and machine.
    • High efficient air clean filter system ensures high sanitary requirements
    • Low overall machine noise
    • Self-lubricating system imported from America provides continuous smooth operation

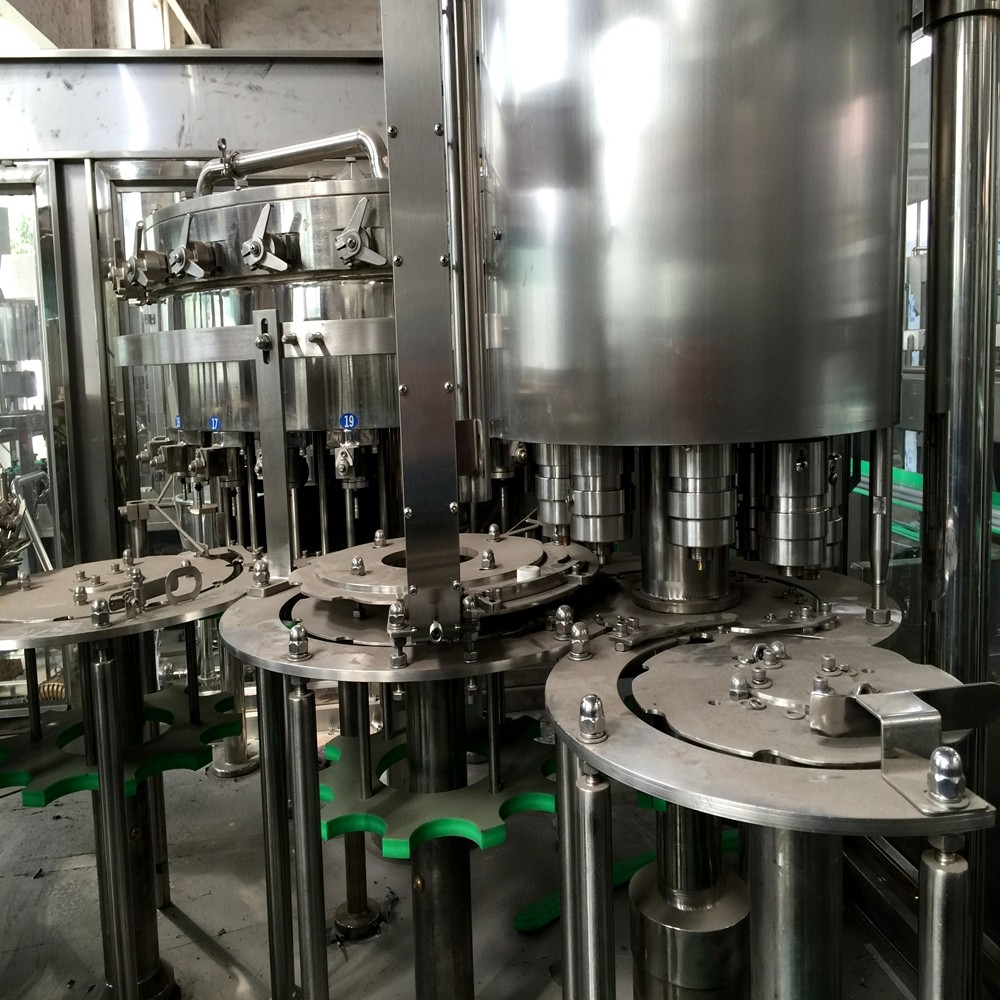

    Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine 1

    Technical Parameter


    Model CGFB16-16-12-6 CGFB18-18-18-6 CGFB24-24-24-8 CGFB32-32-32-10 CGFB40-40-40-12 CGFB50-50-50-15
    Number of Sterilizing Head 16 18 24 32 40 50
    Number of Rinsing Head 16 18 24 32 40 50
    Number of Filling Head 12 18 24 32 40 50
    Number of Capping Head 6 6 8 10 12 15
    Rated Production Capacity 4000BPH 6000BPH 10000BPH 12000BPH 16000BPH 24000BPH
    Installed Capacity:(kw) 3.8 4.3 6.5 8.7 9.5 12
    Overall Size L*W*H(mm) 3050*2000*2400 3170*2070*2400 4070*2350*2400 5100*2600*2400 6250*3050*2400 7500*3900*2400






    Water Bottle Filling Machine 4000BPH , Mineral Water Plant Machine 2





    Rinsing part



    1) The rotary wheel is a fully AISI304 stainless steel welded structure.

    2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

    3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water

    4) Covering of bottle clamps and elevator are product of IGUS

    5) The rinse is driven by driving system positioned inside machine frame via gear transmission





    Filling part



    1) The filler is designed and manufactured with application of Italy technology, providing

    hardware guarantee for securing product quality and reducing loss.

    2) Rotary wheel are fully made of stainless steel AISI304.

    3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

    4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.

    5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free

    bearing.

    6) Hydraulic pump is float-ball controlled.

    7) The filler is driven by driving system positioned inside machine frame via gear transmission.





    Capping part







    1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.

    2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.

    3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.

    4) Highly effective acentric way for cap sorting to reduce the abrasion.
