10000BPH 6.5kw Plastic / Glass Bottle Drinking Water Filling Machine

10000BPH 6.5kw Plastic / Glass Bottle Drinking Water Filling Machine

10000BPH 6.5kw Plastic / Glass Bottle Drinking Water Filling Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIAYUAN
Certification: CE,ISO,SGS
Model Number: CGFB24-24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Price: US $8,000 - 260,000 / Set
Packaging Details: wooden box
Delivery Time: 30 working days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Food Grade Stainless Steel 304 Condition: New, New
Application: Beverage, Chemical, Food, Medical Packaging Type: Barrel, Bottles, Cans, Cartons
Packaging Material: Paper, Plastic, Wood Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V 50HZ
Power: 6.5kw Dimension(L*W*H): 4070mm*2350mm*2400mm
After-sales Service Provided: Overseas Service Center Available Filling Capacity: 10000BPH(500ml)
Warranty: 1 Year For Free Power Supply: 380V/50HZ(adjustable)
Control System: PLC Control Filling Type: Normal Pressure Filling
Filling Temperature: Room Temperature Processing Types: Water
High Light:

6.5kw drinking water Filling Machine


10000BPH drinking water Filling Machine

Plastic / glass bottle drinking water Filling Machine , liquid water filling machine

Product Description
  1. It adopts bottle neck holding transmission technology to realize fully automatic sterilizing, rinsing,filling and capping.
  2. The quality reaches the international advanced level.
  3. Each machine element that contacts with the liquid is made of high quality stainless steel.
  4. The advantages:good abrasive resistance, high stability, low faliure rate, etc.
Model CGFB24-24-24-8
Number of Sterilizing Head 24
Number of Rinsing Head 24
Number of Filling Head 24
Number of Capping Head 8
Rated Production Capacity 24000BPH
Installed Capacity:(kw) 6.5
Overall Size L*W*H(mm) 4070*2350*2400


Main performance:


1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way


2) Adopting clamping bottleneck fashion to wash bottle mouth and avoid touching screw mouth, when bottle type changes, you need to change the board related with bottle diameter


3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.


4) Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle.


5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on

1. Compact structured, good-looking, easy to operate and highly automated.
2. Air conveyor is directly linked with feed-in starwheels,making it easier to change bottles.

3. Bottles are transferred in the manner of hanging neck. Bottles can be changed through some replacement, which instead of adjusting the height of machine.
4. Rinsing-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5. Highly effective spraying nozzles equipped on the rinsing-clamp can rinse every side of inner bottle and save water.
6. Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
7. Bottling volume can be controlled by membrane adjusting valves to ensure accurate filling.
8. Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.
9. High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
10. Equipped with CIP clean-in-place return pipeline.
11. Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw. Bottles can be changed without
adjustment of height of conveyor chain.
12. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
13. Highly effective cap sorting and feed in system is protective for feed in and cap absence.

10000BPH 6.5kw Plastic / Glass Bottle Drinking Water Filling Machine 0



10000BPH 6.5kw Plastic / Glass Bottle Drinking Water Filling Machine 1

10000BPH 6.5kw Plastic / Glass Bottle Drinking Water Filling Machine 2

Our Services
  1. One year warranty for the whole system.
  2. Free equipment installation and debugging.
  3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
  4. We can provide internship service and help you train the operator and mechanic.
  5. Free beverage production technology and process configuration.
  6. We can help you to design the product line, workshop and provide turn-key project.
Company Information

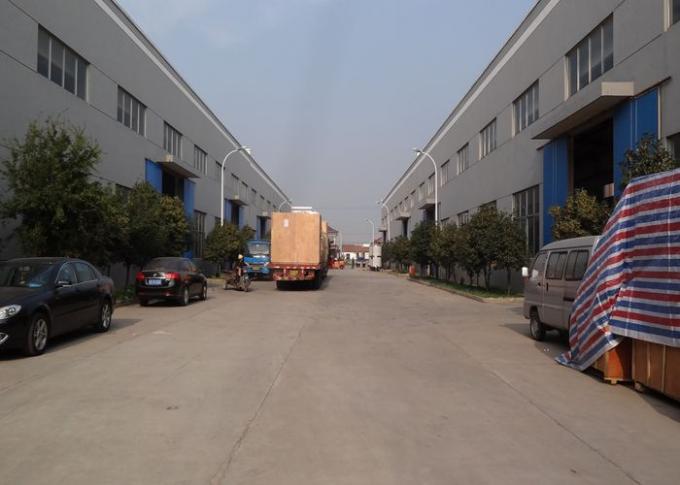

  • Zhangjiagang Jiayuan Machinery Co.,Ltd. is a professional filling machine manufacturer.
  • Our business philosophy is market-oriented, technology-guided, quality-based and customers-first.
  • The main products of our company contain: carbonated and non-carbonated beverage production line, pure water production line, juice, tea and alcohol and other liquids packed in bottle, barrel, can, glass, and others production lines.

10000BPH 6.5kw Plastic / Glass Bottle Drinking Water Filling Machine 310000BPH 6.5kw Plastic / Glass Bottle Drinking Water Filling Machine 4

If possible,please send me the pictures of your product.
we can design according to your demands.
I'm looking forward to your inquiry!!
Thank you very much!!!!!
