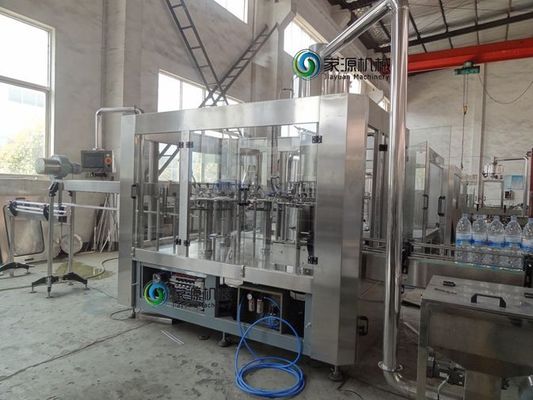

Silvery White Automaitc Water Bottle Filling Machine SUS304 Material

Silvery White Automaitc Water Bottle Filling Machine SUS304 Material

    • Silvery White Automaitc Water Bottle Filling Machine SUS304 Material
    • Silvery White Automaitc Water Bottle Filling Machine SUS304 Material
    • Silvery White Automaitc Water Bottle Filling Machine SUS304 Material
  • Silvery White Automaitc Water Bottle Filling Machine SUS304 Material

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: CGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 12000-85000 SET
    Packaging Details: wooden case
    Delivery Time: 30work days
    Payment Terms: T/T
    Supply Ability: 10sets per month
    Contact Now
    Detailed Product Description
    Voltage: Customized Packing: Wooden
    Filling Type: Normal Pressure Filling Application: Food, Beverage
    Control System: PCL Control Certification: CE,SGS
    High Light:

    liquid bottle filling machine


    water bottling equipment


    Silvery White Automaitc Water Bottle Filling Machine SUS304 Material





    JIAYUAN CGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. JIAYUAN CGF mineral water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the mineral water filling production line.



    This water filling machine is used in the production of non-carbonated drink, such as mineral water and purified water, etc.

    1. The suspending bottle-neck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of different types of bottles easily.

    2. The new generation of stainless steel grab is adopted and the grabs have no contact with the arew above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

    3. The advanced gravity filling technology used in this machine makes the filler quick,steady and accurate.



    Silvery White Automaitc Water Bottle Filling Machine SUS304 Material 0



    • The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
    • Magnetic powered cap device ensures tightness and prevents damage of the caps
    • Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
    • Built-in safeguard mechanism ensures the safety of operator and machine.
    • High efficient air clean filter system ensures high sanitary requirements
    • Low overall machine noise
    • Self-lubricating system imported from America provides continuous smooth operation

    Silvery White Automaitc Water Bottle Filling Machine SUS304 Material 1Silvery White Automaitc Water Bottle Filling Machine SUS304 Material 2

    Technical Parameter

      CGF24-24-8 CGF32-32-10 CGF40-40-12
    Productivity 8000-10000 BPH 12000-15000 BPH 16000-18000 BPH
    Rinsing Head 24 32 40
    Liquid Filling Head 24 32 40
    Capping Head 8 10 12
    Bottle Volume 350ml~2000ml±10ml 350ml~2000ml±10ml 350ml~2000ml±10ml
    Bottle Diameter φ50-90 mm φ50-90 mm φ50-90 mm
    Bottle Height 150-310 mm 150-310 mm 150-310 mm
    Filling Tolerance ±2% ±2% ±2%
    Cap Size 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps
    Air Pressure 0.5 MPa 0.5 MPa 0.6 MPa
    Air Consumption 500 L/min 500 L/min 500 L/min
    Filling Water Consumption 6 m3/h 7.5 m3/h 9 m3/h
    Rinsing Water Consumption 2 m3/h 2.5 m3/h 3 m3/h
    Motor Power 4kW 7.5kW 7.5kW
    Voltage 380V 380V 380V
    Dimension (L×W×H) 3194×2054×2560mm (L×W×H) 3937×2846×2560mm (L×W×H) 4940×3755×3200mm
    Weight 5300kg 8000kg 12000kg
    Filling Principle Gravity Filling Gravity Filling Gravity Filling



    Rinsing part


    1) The rotary wheel is a fully AISI304 stainless steel welded structure.

    2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

    3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water

    4) Covering of bottle clamps and elevator are product of IGUS

    5) The rinse is driven by driving system positioned inside machine frame via gear transmission



    Filling part


    1) The filler is designed and manufactured with application of Italy technology, providing

    hardware guarantee for securing product quality and reducing loss.

    2) Rotary wheel are fully made of stainless steel AISI304.

    3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

    4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.

    5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free


    6) Hydraulic pump is float-ball controlled.

    7) The filler is driven by driving system positioned inside machine frame via gear transmission.



    Capping part




    1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.

    2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.

    3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.

    4) Highly effective acentric way for cap sorting to reduce the abrasion.






    Our Services


    1) One year warranty for the whole system.

    2) Free equipment installation and debugging.

    3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

    4) We can provide internship service and help you train the operator and mechanic.

    5) Free beverage production technology and process configuration.

    6) We can help you to design the product line, workshop and provide turn-key project.
