Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | CHINA,MAINLAND |
| Brand Name: | jiayuan |
| Certification: | CE,SGS |
| Model Number: | CGF |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 22000 set |
| Packaging Details: | wooden case |
| Delivery Time: | 30work days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Color: | Silvery White | Power: | 6.57 |
|---|---|---|---|
| Weight: | 5500kg | Volatge: | Customized |
| Capacity: | 8000-10000bph | Packing: | Wooden Case |
| High Light: | liquid bottle filling machine,water bottling equipment |
||
6.57kw Water Bottle Filling Machine 2750*2180*2200 8000ph - 10000bph
Introduction

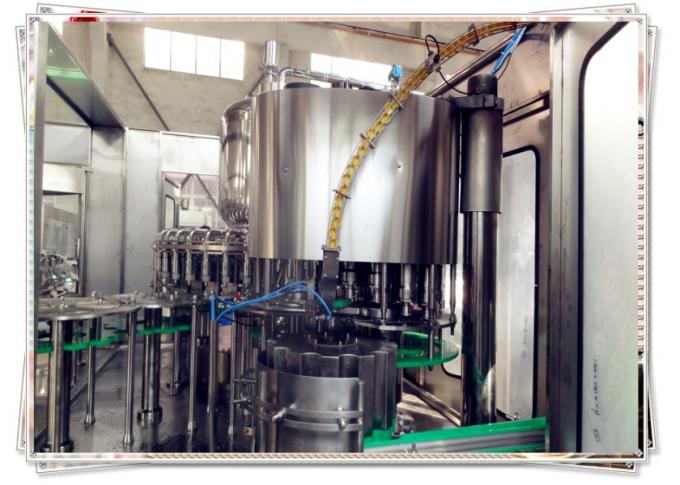

JIAYUAN CGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. JIAYUAN CGF mineral water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the mineral water filling production line.
Feature
Technical Parameter
| CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | |
| Productivity | 4000-6000 BPH | 8000-10000 BPH | 12000-15000 BPH |
| Rinsing Head | 18 | 24 | 32 |
| Liquid Filling Head | 18 | 24 | 32 |
| Capping Head | 6 | 8 | 10 |
| Bottle Volume | 350ml~2000ml±10ml | 350ml~2000ml±10ml | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-90 mm | φ50-90 mm | φ50-90 mm |
| Bottle Height | 150-310 mm | 150-310 mm | 150-310 mm |
| Filling Tolerance | ±2% | ±2% | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.5 MPa | 0.5 MPa | 0.5 MPa |
| Air Consumption | 500 L/min | 500 L/min | 500 L/min |
| Filling Water Consumption | 3 m3/h | 6 m3/h | 7.5 m3/h |
| Rinsing Water Consumption | 1 m3/h | 2 m3/h | 2.5 m3/h |
| Motor Power | 3.5kW | 4kW | 7.5kW |
| Voltage | 380V | 380V | 380V |
| Dimension | (L×W×H) 2816×1883×2340mm | (L×W×H) 3194×2054×2560mm | (L×W×H) 3937×2846×2560mm |
| Weight | 3000kg | 5300kg | 8000kg |
| Filling Principle | Gravity Filling | Gravity Filling | Gravity Filling |
Rinsing part
1) The rotary wheel is a fully AISI304 stainless steel welded structure.
2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.
Filling part
1) The filler is designed and manufactured with application of Italy technology, providing
hardware guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel AISI304.
3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.
4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.
Capping part
1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
1.Q : How to get your suitable machine or production line?
A : Find our products through zhangjiagang Jiayuan machinery co ., ltd . in google, bing, yahoo, alibaba . com ect .
Enquiry : Contact us by email , phone call , fax , instant messenger (trade manager , MSN , skype , whats app) and let us know your enquiry.
Disscussion : Specify the items you desire , confirm specification ; OEM/ODM consultation .
2.Q : What is the type of your company?
A : We are the professinal beverage machinery manufacturers to produce bottled liquids,drums,filling machine,installed cup carbonated drinks,such as filling machine. We not only sell machiners, but also sell our brand and service .
3.Q : Do you have technical support after we purchased your machines?
A : Definitely ! We will arrange our professional engineers to go aboard to your factory (company limited) , they will teach you how to install and maintenance the machines which you purchased . or help you to fix machine when it has problems .
4.Q : If you buy our machines , can you offer us wear-out spare parts?
A : No problem ! We will offer you 1 year free wear - out spare parts . As well as 1 year warranty . Once your machines broken or doesn't work within 1 year and you can't solve it . Firstly , we will try to help you to find problems from your words description by phone or other communication tolls . Secondly , if the phone solutions still not work , our engineers will go to your factory (company limited) to solve it . Meanwhile they will teach you the related experiences for fixing .
1.Installation
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
