liquid bottle filling machine,
water bottling machine

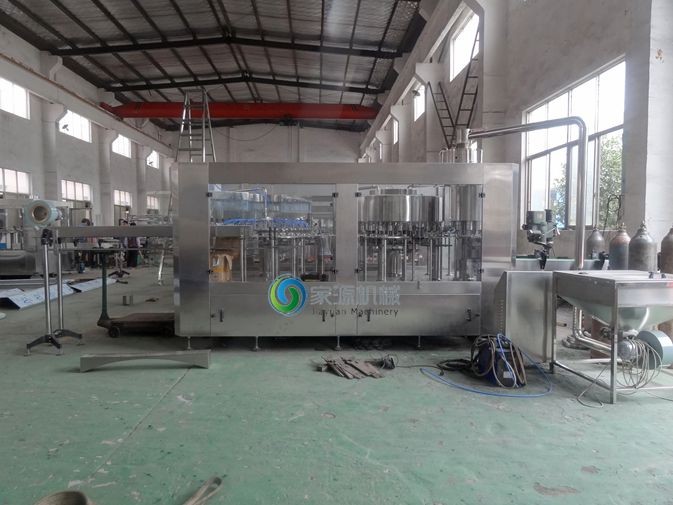

18-18-6 beverage making machine Stainless Steel CGF , mineral water filling machine
1. Product: 5000bph mineral water filling machine price
3. Main Material: SS304
4. Production capacity: 4000-6000bph(500ml)
5. Usage: Fill pure / mineral / distilled water and so on
6. Dimension: 2450*1800*2200mm
7. Warranty: 1year free
(1) This Water Processing Line is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, and wine and so on.
(2) Washing, filling and capping of the Water Processing Line are achieved in one machine. Water Processing Line.
(3) The contact time is shortening between material and the outside. And improved the health conditions, production capacity and economic benefits.
(4) CGF series Water Processing Line adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main Water Processing Line adopts advanced PLC control technology.
(6) The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products. Water Processing Line
This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
integrates bottle washing, filling and capping into one monobloc unit.
The bottle is blew into the bottle shifting wheel, when the flushing clamp reaches the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180°into an upright position, through second bottle pusher into the filling position.
The filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle. When the liquid level of the bottle reaches the trachea of the filling valve, the filling will stop.
The capping part consists of screw heads, capping transmission part, a sorting part and an under cover tube parts. The bottle which has finished filling will enter the capping position via the driving wheel. The photoelectric detection of the detecting signal detects the bottle, send a message to the valve cover, the cylinder cap will open; the caps will be blown into the cover plate by compressed air. The screw head which has magnetic torque will come down when it gets in a straight line with the bottle cap, the rotary cap ring gear seizes the cap and move forward, the cap lid the bottle and screw. When the torque out numbered the adjusted magnetic, the capping head will automatically slip, thus protect the cap from being damaged by the rotary cap ring gear. Bottles that have finished capping will be transported by the bottle pusher to the conveyor belt.
2) Technical parameter
|Nanfang(China famous brand)
|Water consumption for bottle
