Mango Juice, Orange Juice, Pineapple Juice Bottling Line, Filling Machinery

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE
Model Number:	RCGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard export packing
Delivery Time:	50 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Machine Name:	Juice Filling Machine	Suitable Bottle:	PET Bottle
Washing Nozzle:	32 Pcs	Filling Material:	Juice, Water, Flavor Drink
Capacity:	10000-14000BPH	Driven Type:	Electricity
Dimension(lwh):	450028002500mm

Mango Juice, Orange Juice, Pineapple Juice Bottling Line, Filling Machinery

RCGF series drinking water filling machine integrates bottle washing, water filling and capping into one monobloc, and the three processws are carried out full automatically. Itis used in the hot filling of juice and tea beverage. It is equipped with perfect temmperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that grade rubber.

Rinser

Bottle clip equipped with efficient spray on nozzle.The extrusive droplet with 15 angleensures to wash all side of the bottle.

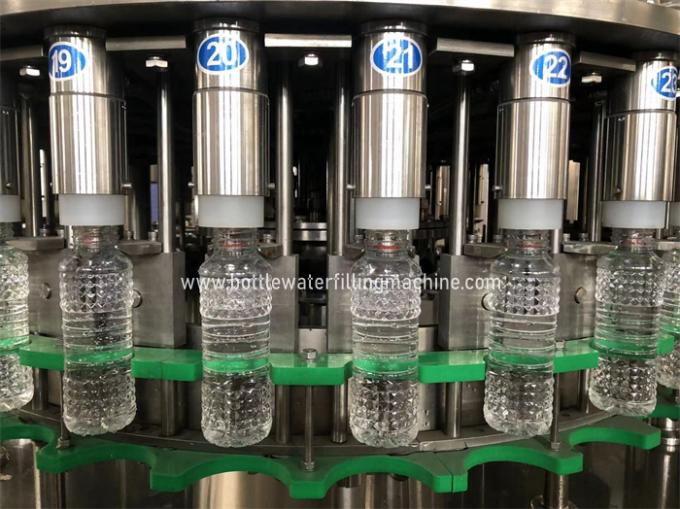

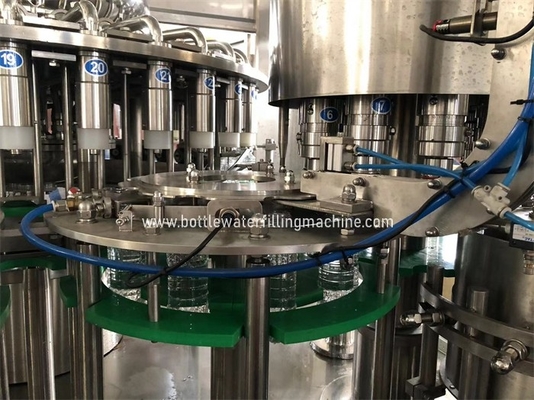

Filler

The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve elevator, after filling
valve contact the bottle neck, it starts to fill.

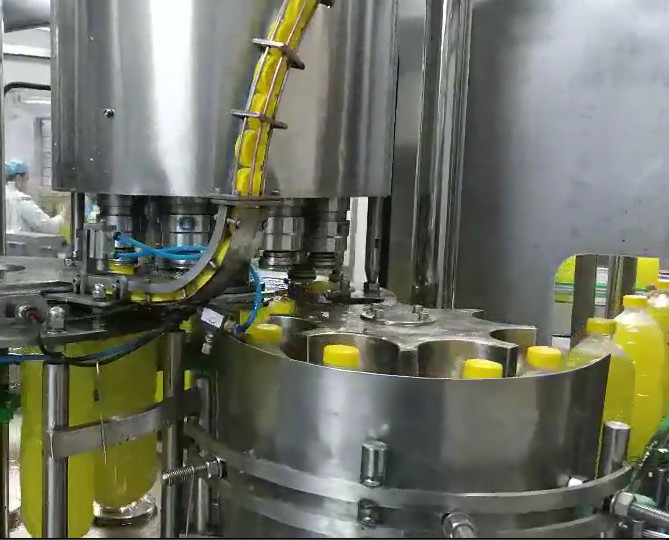

Capper

The magnetic torque is used for screw capping.The power of screw capping can be adjusted without steps.The power of the screw capping can also be fixed.

Juice blending system

Sugar melting tank → syrup filter → blending tank → double filter → storage tank → homogenizer → storage tank → vacuum degasser → storage tank → plate type sterilization

Mango Juice, Orange Juice, Pineapple Juice Bottling Line, Filling Machinery 1

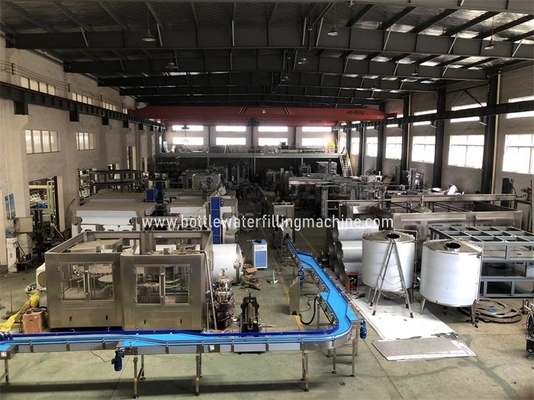

We can provide complete line plants

Mango Juice, Orange Juice, Pineapple Juice Bottling Line, Filling Machinery 2

Technical Characters:

1,Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost

extent.

2,Reasonable structured storage hopper an material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.

3,The storage hopper has the characteristic of gas dischanrge, full sealing and temperature detecting, in moderate and high speed production line, the materical distributor replaces the big liquid tank to realize the complete CIP.

4,Sanitary filling head system is of umbrella structure, high filling speed.

5,Prefect filling temperature control system.

6,Return tank system have the function of supplying the material automatically.

7,Perfect CIP system.

Automatic shrink sleeve labeling machine

This machine adopts international advanced technology, cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated.

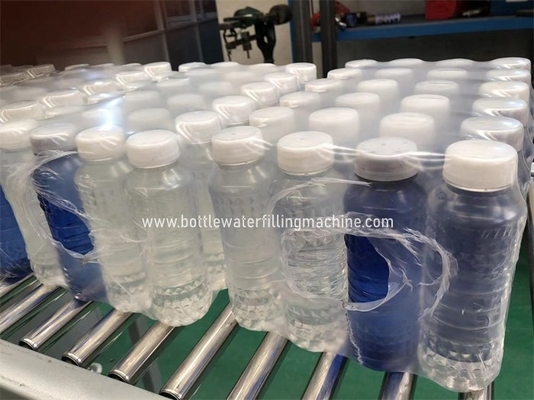

Automatic PE film wrapping machine

To pack several bottles into one package, make it easier for delivery.

You can have different group style, 24 bottles one package, 12 bottles one package, etc. It is changeable.

Technical parameter
Model	RCGF8-8-3	RCGF14-12-5	RCGF18-18-6	RCGF24-24-8	RCGF32-32-8
Capacity(for 500ml)	2000	3000-4000	4000-6000	8000-10000	10000-12000
Suitable bottle shapes	PET circular or square
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Compressor air	0.3-0.7Mpa
Filling type	hot filling
Rinsing pressure	>0.06Mpa <0.2Mpa
Application	fruit juice
