Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | CHINA |
| Brand Name: | JIAYUAN |
| Certification: | CE ISO |
| Model Number: | CGF16-12-6 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | please inquire |
| Packaging Details: | standard wooden case |
| Delivery Time: | 45 working days |
| Supply Ability: | 100 sets per year |
| PRODUCT: | Water Filling Machine | Machine Model: | 16-12-6 |
|---|---|---|---|
| Capacity: | 1000-4000BPH | Bottle Size: | 200-2000ml |
| Voltage: | 380V 50HZ 3PHASE | Material: | Stainless Steel SUS304 |
| High Light: | 4000BPH Mineral Water Bottling Equipment,4000BPH PET Bottle Filling Machine,non gas Mineral Water Bottling Equipment |
||
Small Scale PET Bottle Water Filling Machine, Mineral Water Bottling Equipment

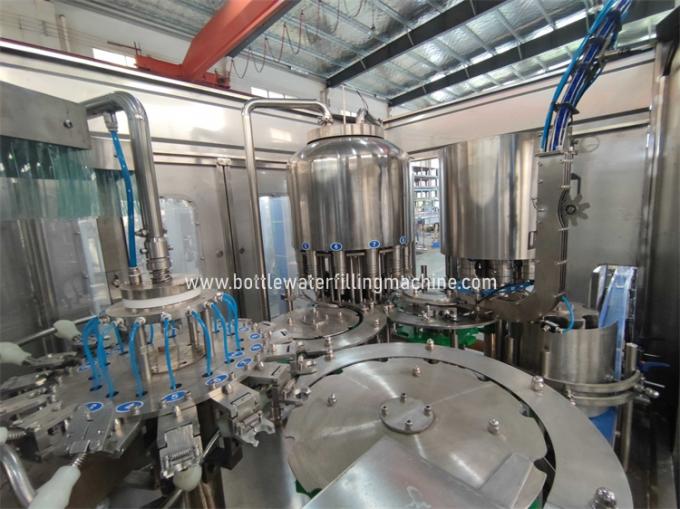

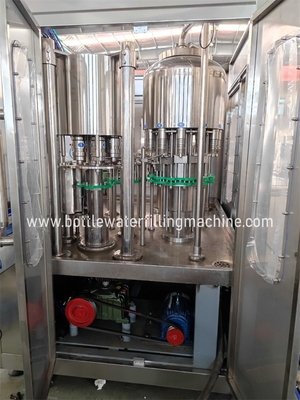

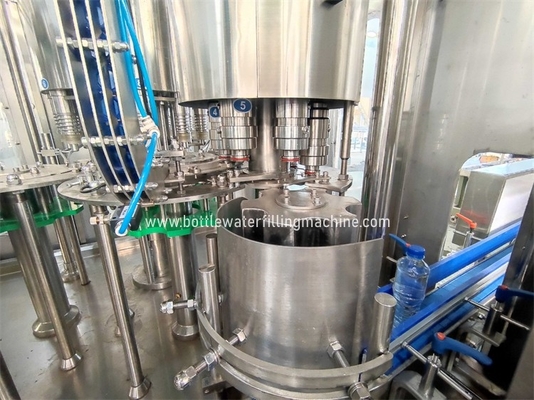

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral
water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage
Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials
and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations.
The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole
process is automatic.

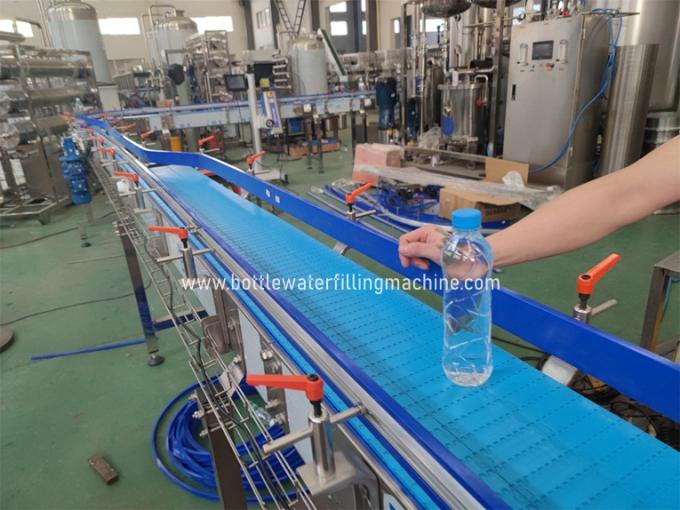

Air conveyor is fixed on the floor, with fan installed on the top. - Air filter is positioned at every entrance of
air fan, to prevent dust blown into bottles. - Bottles are held on the neck in the conveyor and transported
into filling machine by blowing power. - All are made of stainless steel SUS 304. - Rack made by high quality
carbon steel welded.
We can provide complete line plants for PET bottled water production:
1. RO water treatment equipment
2. washing filling capping 3 in 1 machine
3. Automatic labeling machine
This labeling machine is equipped with computer touch -screen which layout very large
scale integrated circuit .it is controlled by micro-computer with English character touch
screen, realized the man-machine communication .Micro-computer configuration is helpful
for all data input by touch screen and also for all-round control the running condition once
machine started.
4. automatic shrink wrapping machine
● frequency converter speed adjust,two segment convey device.
● Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
● Proximity switch control film length.
● Touch screen, PLC system greatly increase facility movement reliability.
final products
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Client workshop layout design .
* Bottle design .
* Sample testing support.
* View our Factory.
*Send technicians to Client's workshop guide machinery installation and commissioning , and trainning the workers operate and machinery maintenance .
*Provide machinery necessary spare parts and soltions .
* Engineers available to service machinery overseas.
Why choose us?
(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide
