24000BPH Fully Automatic Fruit Juice Bottle Filling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE
Model Number:	RCGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	please inquiry
Packaging Details:	standard wooden case
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Product Name:	Rinser Filler Capper	Filling Nozzle:	50
Max Capacity:	24000BPH	Suitable Bottle:	Plastic Bottle
Suitable Cap:	Plastic Thread Cap	Filling Producy:	Fruit Juice, Flavor Juice,water
High Light:	24000BPH juice bottling equipment , thread cap juice bottling equipment , 24000BPH fruit juice bottling machine

Fully Automatic Juice Beverage Bottle Filling Capping Machine, Bottling Equipment

This juice filling machine is for filling juice into plastic bottle

The bottle size can be 200 ml to 2000 ml

The capacity can be 3000 bottles of juice per hour

The machine already certificated by CE

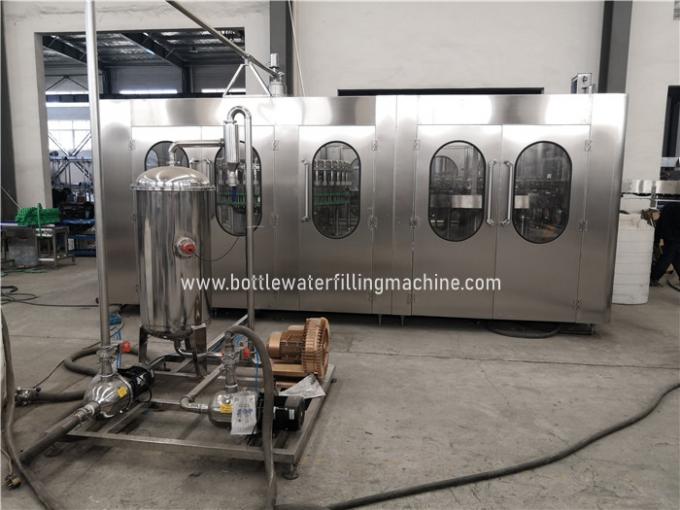

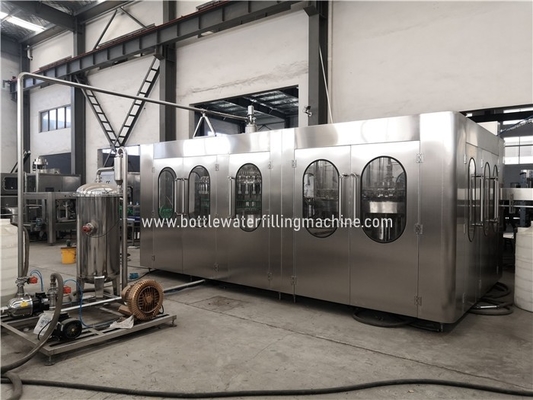

24000BPH Fully Automatic Fruit Juice Bottle Filling Machine 0

What can be produced?

Applicable products: Tea,fruit juice, etc.

Applicable container: PET bottles of various capacities and shapes

Filling system: gravity filling

Production capacity: 1000 bottles/hour-30000 bottles/hour

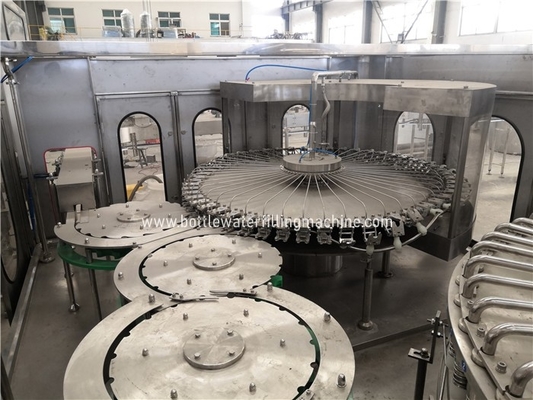

Washing part
for making sure the bottles are clean,this machine have two washing part

24000BPH Fully Automatic Fruit Juice Bottle Filling Machine 1

24000BPH Fully Automatic Fruit Juice Bottle Filling Machine 2

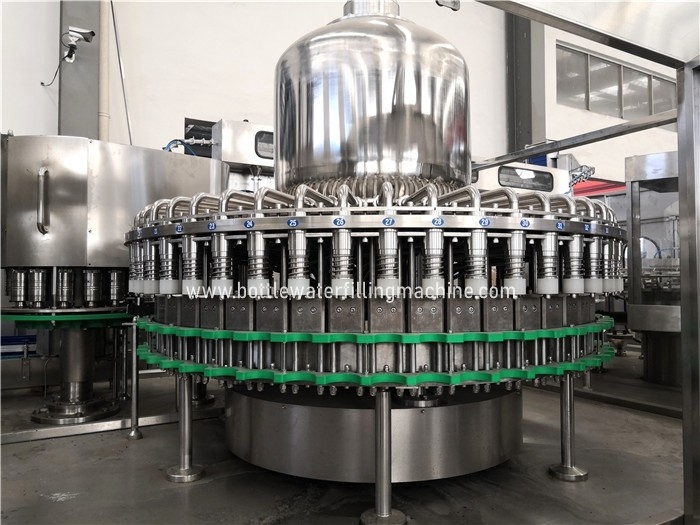

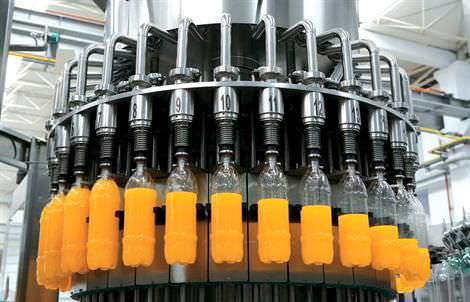

Filling partto fill juice into plastic bottle in high accuracy

24000BPH Fully Automatic Fruit Juice Bottle Filling Machine 3

24000BPH Fully Automatic Fruit Juice Bottle Filling Machine 4

Capping partCaps go to the capping part by cap elevator

24000BPH Fully Automatic Fruit Juice Bottle Filling Machine 5

24000BPH Fully Automatic Fruit Juice Bottle Filling Machine 6

We can provide the following complete line plants:

24000BPH Fully Automatic Fruit Juice Bottle Filling Machine 7

Product Paramenters

Model	Output	Power	Size	Weight
CGF8-8-3	2000 to 3000bph	3 Kw	1800X1500X2300MM	2500Kg
CGF16-12-6	3000 to 4000 bph	5 Kw	2200X1560X2300MM	3000 Kg
CGF18-18-6	5000 to 6000 bph	5 Kw	2250X1670X2300MM	3500 Kg
CGF24-24-8	8000 to 10000 bph	6 Kw	2800X1800X2300MM	5000 Kg
CGF32-32-10	12000 to 15000 bph	8 Kw	4300X3500X2300MM	7000 Kg
CGF40-40-12	15000 to 18000 bph	12 Kw	4600X3800X2300MM	10000 Kg
CGF50-50-12	18000 to 24000 bph	15 Kw	5000X4200X2300MM	12000 Kg
CGF60-60-15	25000 to 30000 bph	18 Kw	5500X4500X2300MM	15000 Kg

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
Before shippment.
