Fully Automatic Bottled Mineral Water Filling Bottling Packing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE
Model Number:	CGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	please inquiry
Packaging Details:	standard wooden case
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Product Name:	Rinser Filler Capper	Filling Nozzle:	50
Max Capacity:	24000BPH	Suitable Bottle:	Plastic Bottle
Suitable Cap:	Plastic Thread Cap	Machine Material:	Stainless Steel SUS304
High Light:	Bottled mineral water filling machine , SUS304 mineral water filling machine , SUS304 mineral water bottling machine

Fully Automatic Industries Bottled Mineral Water Filling Bottling Packing Machine

Automatic water filling machine is mainly used for filling plastic bottle water such as purified water, drinking

water, mineralwater, etc. It inte- grates the three functions of washing, filling and capping.

Water filling equipment has the characteristics of compact structure, perfect control system, convenient

operation and high degree of automation.

1.The machine can complete the whole process of bottle washing, filling and sealing, reduce the contact

time between materials and the outside world, and improve sanitary conditions, production capacity and

economic benefits.

2.The adjustment of the bottle shape of each part is realized by turning the handle, which is easy, convenient

and quick.

3. Filling method: The new type of micro-pressure filling is used to make the filling speed faster and more

stable, so the machine has higher output and greater benefits compared with machines of the same specification.

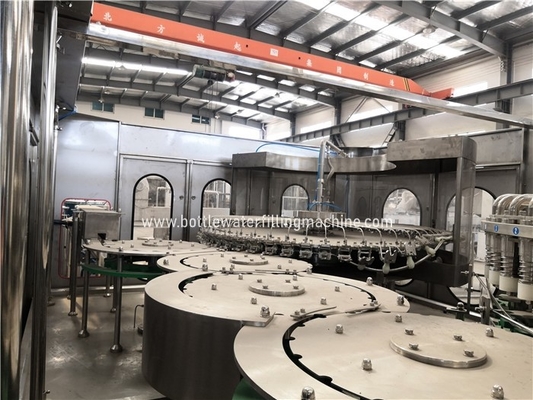

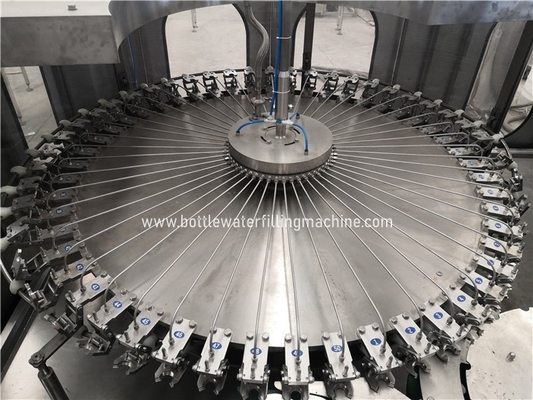

Fully Automatic Bottled Mineral Water Filling Bottling Packing Machine 0

Automatic 3 in 1 Washing ,Filling And Capping Machine

1. Natural mineral water filling machine has compact structure, perfect control system, convenient operation and high degree of automation.

2.The parts in contact with materials are made of high quality stainless steel, no dead angle and easy to clean.

3.High speed filling valve is adopted to ensure the accuracy of liquid level and no liquid loss.

4.Magnetic constant torque device is used for the capping head to ensure the quality of capping without damaging the bottle cap.

We can provide the folling complete line plants:

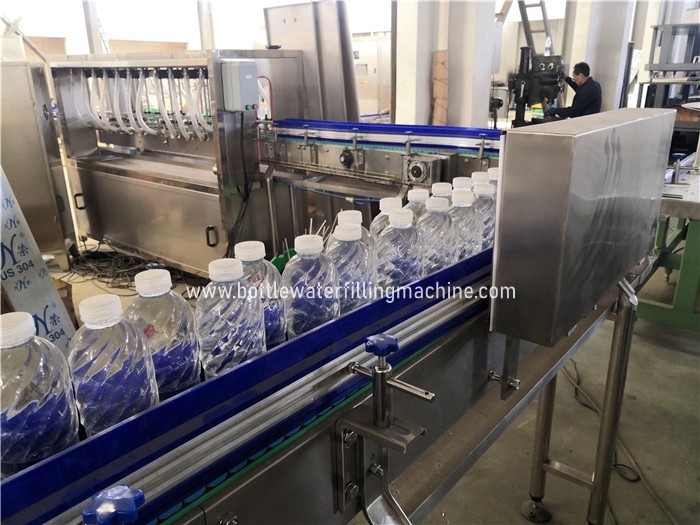

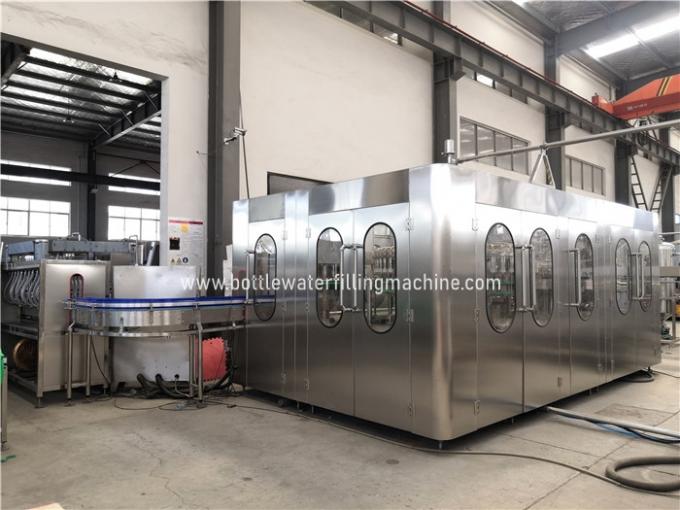

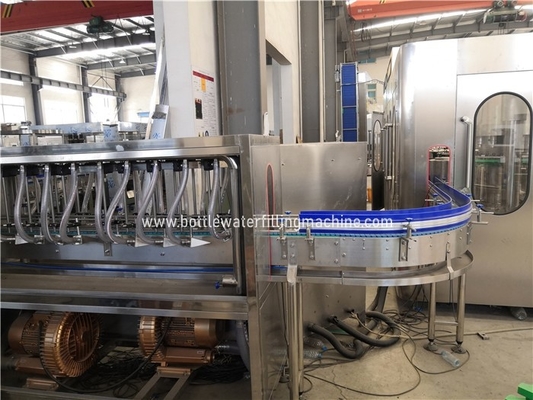

Fully Automatic Bottled Mineral Water Filling Bottling Packing Machine 1

Product Paramenters

Model	Output	Power	Size	Weight
CGF8-8-3	2000 to 3000bph	3 Kw	1800X1500X2300MM	2500Kg
CGF16-12-6	3000 to 4000 bph	5 Kw	2200X1560X2300MM	3000 Kg
CGF18-18-6	5000 to 6000 bph	5 Kw	2250X1670X2300MM	3500 Kg
CGF24-24-8	8000 to 10000 bph	6 Kw	2800X1800X2300MM	5000 Kg
CGF32-32-10	12000 to 15000 bph	8 Kw	4300X3500X2300MM	7000 Kg
CGF40-40-12	15000 to 18000 bph	12 Kw	4600X3800X2300MM	10000 Kg
CGF50-50-12	18000 to 24000 bph	15 Kw	5000X4200X2300MM	12000 Kg
CGF60-60-15	25000 to 30000 bph	18 Kw	5500X4500X2300MM	15000 Kg

Main Configuration:

1.The machine is made by aluminum alloy, carbon steel, stainless steel and alloy steel.
2.Bearings adopt domestic high quality bearings, imported bearings from Japan and Germany. The self-lubrication oil-free bearing adopts IGUS product.
3.High pressure air valves adopt product of NORGREN, EUGEN SEITZ, and SMC, etc.
4.High pressure exhaust mufflers adopt product of American and German companies.
5.Pneumatic parts adopts product of FESTO, SMC, NORGREN, etc.
6.Touch screen system adopt product of Schneider, SIEMENS, etc.
7.PLC adopts product of MITSUBISHI, SIEMENS, SCHNEIDER, etc.
8.Photoelectric sensor adopt product of TURCK, OMRON, BANNER, etc.
9.Contactor adopts product of SIEMENS, Schneider, etc.
10.Connecting terminals adopt product of PHOENIX, ABB, etc.
