2500BPH Carbonated Drink Soda Filler Capper with CIP system

2500BPH Carbonated Drink Soda Filler Capper with CIP system

    • 2500BPH Carbonated Drink Soda Filler Capper with CIP system
    • 2500BPH Carbonated Drink Soda Filler Capper with CIP system
    • 2500BPH Carbonated Drink Soda Filler Capper with CIP system
    • 2500BPH Carbonated Drink Soda Filler Capper with CIP system
  • 2500BPH Carbonated Drink Soda Filler Capper with CIP system

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE
    Model Number: DCGF16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 ser
    Price: please inquiry
    Packaging Details: standard wooden case
    Delivery Time: 40 working days
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Bottle Filling Machine Filling Product: Carbonated Drink, Soft Drink, Soda, Sparkling Water
    Filling Heads: 12 Capacity: 1000-2500BPH
    Suitable Bottle: 200-2000ml Control: PLC, HMI, Frequency Converter
    High Light:

    2500BPH Soda Filler Capper

    ,

    CIP system Soda Filler Capper

    ,

    2500BPH Carbonated Drink Filler

    Carbonated Drink Filling Machine, Soda Filler Capper, Beverage Bottling Plants



    Feature of carbonated drink filling machine

    Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum degree.product storage hopper and feed system adopts reasonable product feed design(constant flow,constant pressure,no foaming).product hopper with reasonable structure(exhaust,fully close,temperature can be detected).medium and high speed line adopts product distributor instead of large liquid carousel,which can be cleaned completely by pressure cleaning with CIP.sanitary filling valve system umbrella-flow type structure,high speed.perfect hot filling temperature control system.product recycle tank system with automatic product feed startup.perfect CIP system.

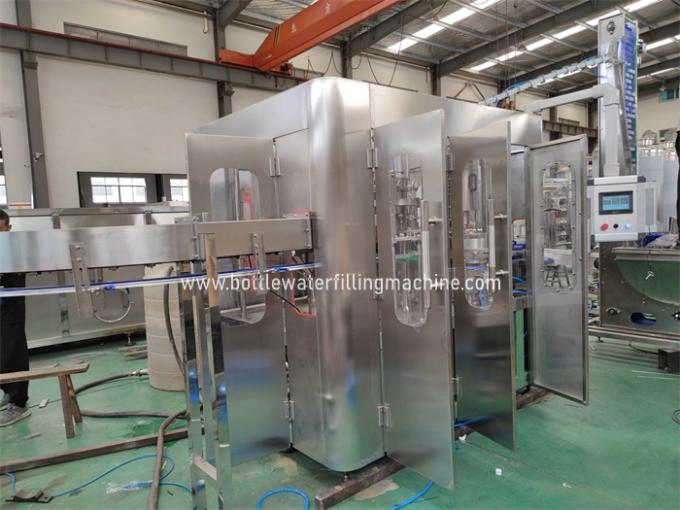

    2500BPH Carbonated Drink Soda Filler Capper with CIP system 0



    2500BPH Carbonated Drink Soda Filler Capper with CIP system 1

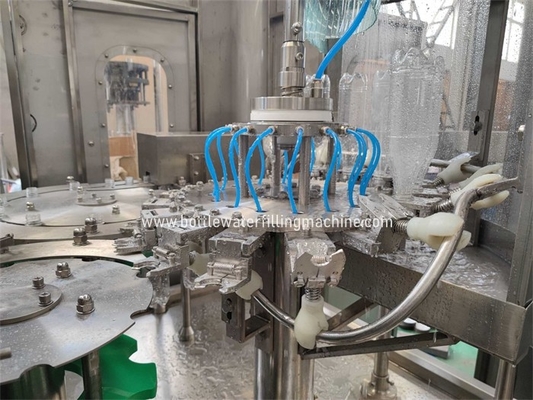

    Washing part:

    1.The rotary wheel is a fully SUS304 stainless steel welded structure.
    2.The rinse is driven by driving system positioned inside machine frame via gear transmission.

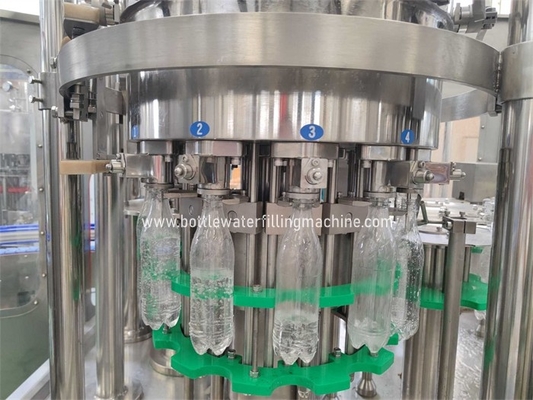

    Filling part:
    1.Filling valves are designed and manufactured with German technology, made of SS304, featuring high filling accuracy and high filling speed.
    2.The filler is driven by driving system positioned inside machine frame via gear transmission.
    3.Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.
    Sealing part:
    1. Highly effective acentric way for cap sorting to reduce the abrasion.
    2.The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover.



    2500BPH Carbonated Drink Soda Filler Capper with CIP system 2

    SPECIFICATIONS
    Machine Model PET CSD LINE
    Target product PET bottle packed carbonated drink
    Bottle shape Round bottle and specific shape bottle

    System composition
    Water treatment system, carbonated drink preparing and mixing system, bottle blowing machine system, empty bottle air conveyor, CSD filling monoblock, automatic cap loader and sterilizer, bottle dryer, automatic labeling machine, automatic bottle wrapping machine, date laser marking machine, automatic palletizer, automatic filled bottle conveyor system
    Output Range 1,000 BPH - 24,000 BPH
    Raw water source Tap water or underground water
    Bottle material PET preform
    Bottle volume 150ml - 2L (Large volumetric bottle type to customize)
    Bottle neck size 28mm - 30mm (Standard)
    Bottle height 230mm - 400mm (Standard)
    Bottle bottom diameter 520mm - 680mm (Standard)
    Cap diameter 30mm - 32 mm (Standard)
    Labeling type Sleeve shrink labeling, OPP hot glue labeling, sticker labeling
    Final bottle packing type PE film wrapping, carton packing
    Voltage Standard According to the Voltage of the Customer's Location
    Optioanl device Packaging visual inspection equipment
    Warranty 12 months from the date of bill of lading
    Technical services project design, factory construction, installation and recommendations, commissioning
