Automatic Liquid Soap Detergent Lotion Bottle Capping Machine Filling Machine

Automatic Liquid Soap Detergent Lotion Bottle Capping Machine Filling Machine

Automatic Liquid Soap Detergent Lotion Bottle Capping Machine Filling Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: jiayuan
Certification: CE,ISO,SGS
Model Number: RCGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Packaging Details: wooden box
Delivery Time: 30 work days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Automatic Filling Machine Application: Beverage, Chemical, Food
Packaging Material: Paper, Plastic, Wood Weight: 3000kg
Power: 6.68kw Filling Type: Normal Pressure Filling
Control System: PLC Control Filling Temperature: Room Temperature
Filling Capacity: 6000BPH
High Light:

Liquid Soap Bottle Capping Machine

,

Detergent Lotion Bottle Capping Machine

,

6000BPH Lotion Bottle Capping Machine

2016 new stype Hot filling machine tea juice drink processing machine



Specifications

Filling head QTY Filling volume Filling speed
1 10ml to 100ml 500-1000BPH
2 50ml to 500ml 1000-1500BPH
4 500ml to 5L 1500-2500BPH
6 1L to 10L 2000-3000BPH
8 5L to 50L 2500-3500BPH
10 200L 3000-5000BPH



2016 new stype Hot filling machine tea juice drink processing machine

This hot filling equipment adopts bottle neck holding transmission technology to realize fully automaic rinsing,filling and capping.It is equipped with perfect temperature control system,reverse-flow system,automatic cleaning system and control program.Each machine element that contacts with the liquid is made of high quality stainlesssteel and food-grade rubber.



1) Feature

Juice production line for hot filling machine /tea filling machine with Perfect CIP system

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
1.Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2.Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
3.The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

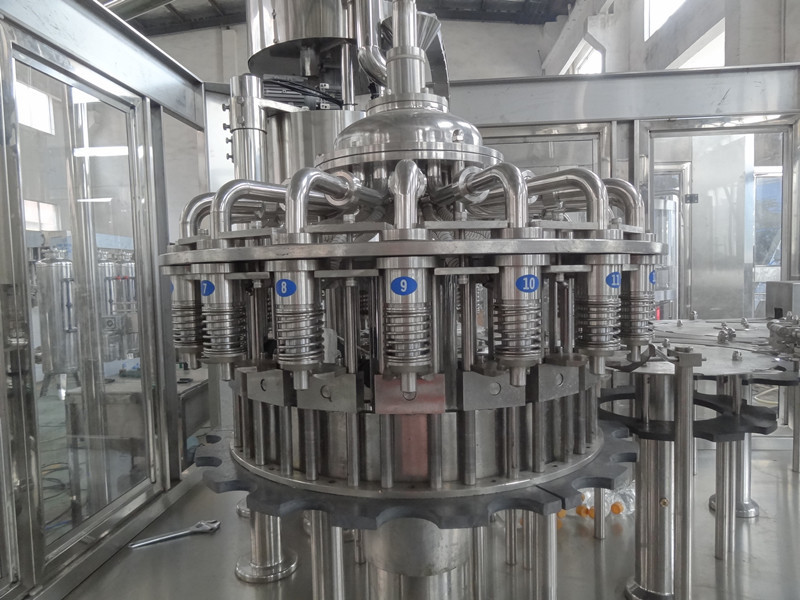

4.Sanitary filling head system is of umbrella structure, high filling speed.
5.Perfect filling temperature control system.
6.Reflux tank system has the function of supplying the material automatically.
7.Perfect CIP system.
8.To realize stable running, convenient for maintenance and long life, all the electric and pneumatic components are from world famous manufacturer. Example, PLC from OMRON, transducer from MITSUBISHI, pneumatic components from FESTO, switch from TURCK, motors from SEW or ABB, touch

2) Technique parameter

  RCGF16-12-6 RCGF18-18-6 RCGF24-24-8
Productivity 3000BPH 6000BPH 10000BPH
Rinsing Head 16 18 24
Filling Head 12 18 24
Capping Head 6 6 8
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h 3 m3/h 6 m3/h
Rinsing Water Consumption 0.5 m3/h 1 m3/h 2 m3/h
Motor Power 5.88kW 6.68kW 7.68kW
Voltage 380V
Dimension

(L*W*H)

2100*1500*2200mm

(L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
Weight 2500kg 3000kg 5300kg
Filling Principle Gravity Filling



Automatic Liquid Soap Detergent Lotion Bottle Capping Machine Filling Machine 0

Our Services

1.One year warranty for the whole system.

2.Free equipment installation and debugging.

3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4.We can provide internship service and help you train the operator and mechanic.

5.Free beverage production technology and process configuration.

6.We can help you to design the product line, workshop and provide turn-key project.

Our advantage

Why choice us?

Design Ability All the machines designed by CAD
Manufacturing Ability Mechanical parts: high quality stainless steel, processed by CNC
Reliability Electrical parts from world famous suppliers
Professional

Focus on beverage and cosmetics packing machines

Exported to over 20 countries with good reputation

6 years Alibaba Golden supplier without complaint

Good Service Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.
Profession on Export Authorized export licence.
