Mineral Water Pet Bottle Filling Machine Production Turnkey Solution

Product Details:

Place of Origin:	CHINA
Brand Name:	JIANYUAN
Certification:	CE ISO
Model Number:	RCGF50-50-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	please inquire
Packaging Details:	53.52.3m
Delivery Time:	45 working days
Supply Ability:	50 sets per year

Contact Now

Detailed Product Description

Product Name:	Beverage Filling Machine	Filling Material:	Water, Juice, Still Beverage
Filling Heads:	50	Capacity:	24000BPH
Function:	Rinsing Filling Capping	Warranty:	One Year
High Light:	Mineral Water Pet Bottle Filling Machine , 24000BPH Beverage Filling Machine , 50 Heads Pet Bottle Filling Machine

Mineral Water Pet Bottle Filling Machine Production Turnkey Solution

We can provide complete line plants, from A to Z, the available capacity is from 1000 to 30000BPH

Main Technical Parameters:
Model	CGF16126	CGF18186	CGF24248	CGF323210	CGF404012
Heads of washing filling and capping	16-12-6	18-18-6	24-24-8	32-32-10	40-40-12
Production capacity (bottle/hour)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000
Suitable bottle specification	φ=50-110=170 330-2250ml
Washing pressure(kg/cm2 )	2-3
Motor power(kw)	2.2kw	2.2kw	3kw	5.5kw	7.5kw
Overall dimensions(LWH)	240016502500	260019202550	310023002800	380028002900	460028002900
Weight (kg)	2500	3500	4500	6500	8500

Filling Machine Character:

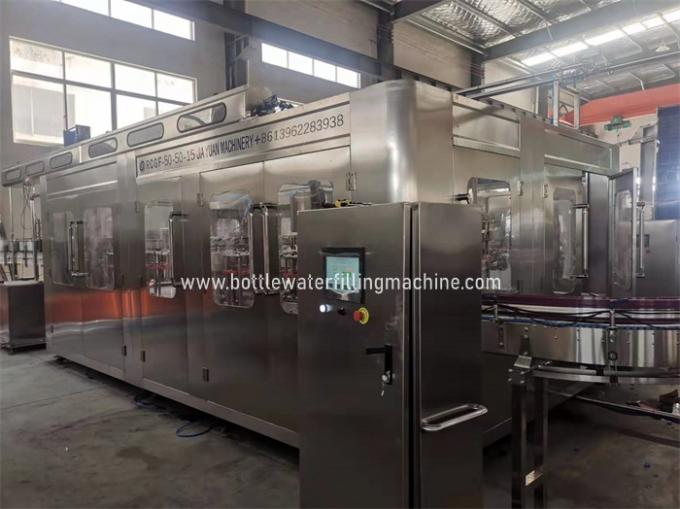

1. This machine is washing filling capping 3 in 1 machine, can fill water, juice, flavor drink

and other still beverage;

2. The machine can work on bottles of different size, from 100-2000ml, only by chaning some spare parts;

3. filling heads 50 pieces, capacity can reach 24000BPH (bottles per hour);

4. The machine is controlled by Inverter, PLC and HMI, easy to operate.

5. All parts connect liquid are made of stainless steel SUS304.

Mineral Water Pet Bottle Filling Machine Production Turnkey Solution 0

Mineral Water Pet Bottle Filling Machine Production Turnkey Solution 1

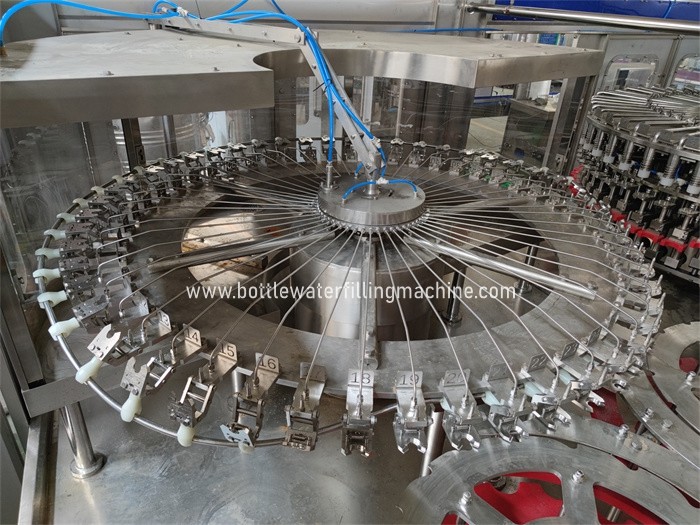

Washing Part of Water Filling Machine

1.Stainless steel 304/316L washing heads.

2.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the
pollution.
3.Washing pump is made of stainless steel.
4. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water
thoroughly and save flush bottle.

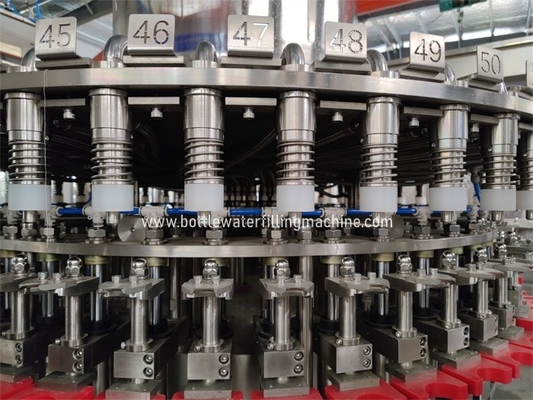

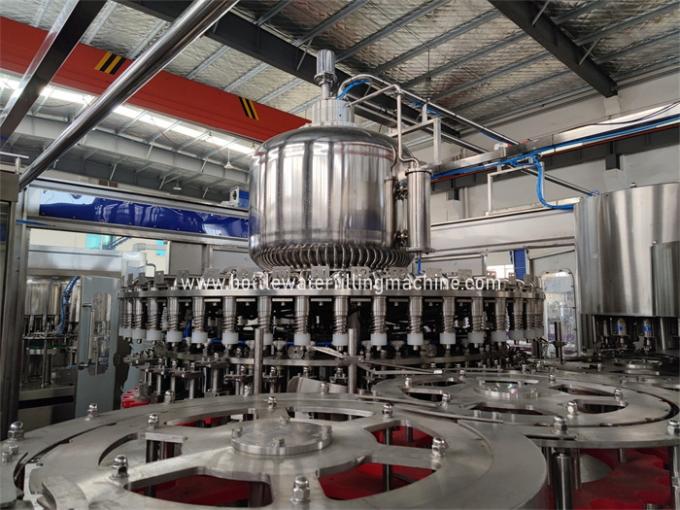

Filling part of water filling machine

1.Filling method for gravity filling. 2.Filling valve manufactured SUS 304/316L. 3.High precision, high speed liquid filling. 4.Filling move by the rack drive system through gear transmission. 5.Hydraulic cylinder controlled by a float liquid level.

Capping Part of Water Filling Machine

1.Automatic check,no bottle no capping. 2.Capping heads in stainless steel 304/316L. 3.Capping heads stop working when lack of bottle. 4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle. 5.High efficiency centrifugal principle.

if you are interested please contact freely...
