Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
|Place of Origin:||China Mainland|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Seaworthy Wooden Case|
|Delivery Time:||40 days|
|Payment Terms:||T/T; L/C|
|Supply Ability:||10 sets/month|
|Bottle Type:||PET|Plastic Bottle|Glass Bottle||Capacity:||5000-6000bph|
|Product Name:||CSD Filling Machine||Driven Type:||PLC|
Carbonated Soft Drink Filling Machine,
carbonated beverage filling machine
PLC control Automatic Carbonated Drink Filling Machine / Cola Filling Equipment
1. Products: Cola drinks filling machine
3. Production capacity: 5000-6000bph
4. Main material: SS304
5. Mitsubishi PLC control
6. Origin: Jiayuan
7. Certificate: CE&SGS
1. This machine is used to fill cola, sprite and other carbonated beverage.
2. All the machine part which contact with liquid is high quality stainless steel 304.
3. The relative fittings are from international famous brand.
4.The carbonated beverage filling machine was equipped with suspension type air conveyor and frequency control of motor speed.
5. This machine is comprised of rinsing, filling and capping system.
Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Filling: counter pressure filling with holding bottle neck.
Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
6. This machine owns the reasonable, stable and safe design.
7.Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
Soft drink filling line: DGCF Washing, normal pressure Filling, Capping 3-in-1 unit is a new type self-developed equipment, which bases on years’ usual practice and adopt the advanced technology, and absorb many clients’ views. It meets the client’s requirement about filling different bottle size through one set. The suspension card bottleneck is adopted to make changing the bottle size more convenient. It can deliver the bottles automatically by blind and then washing, drying, filling, covering, capping by order automatically. This equipment employs frequent and speed adjustment system so that it can adjust the speed freely and enable the operation user-friendly. This machine is mainly used in washing, filling and sealing for gas beverage (soda water, cola).
Cola drinks filling machine
≤+5mm Liquid Level
Fills installs the pressure (MPa)
Bottle Diameter:φ50-φ100; Height:150-310
Suitable cap Shape
Plastic Screw Cap
Total output (kw)

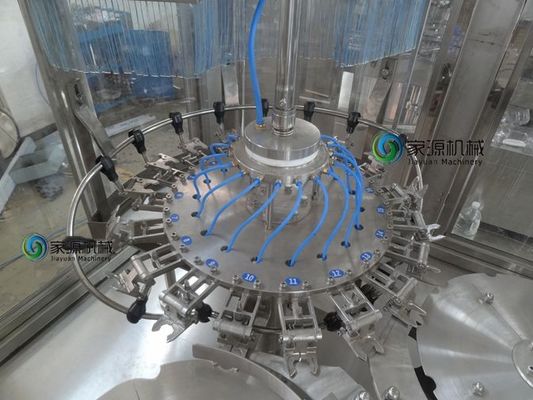

Bottle washing machine
Bottles are bellowed into bottle shifting wheel by air conveyor, and when the flushing clamp reaches the position of bottle neck, the jaw will hold the bottleneck. Under the guide of leading rail, the bottle will be overturned to 180°into an up-right position, and then transmitted into filling position by secondary bottle shifting wheel.
Bottle filling machine
The Filling Part is mainly composed of the filling valve, the switch valve and filling transmission components. The finish-washed bottle is conveyed to filling position by the bottle shifting wheel. At the same time, the valve-opening mechanism will open the filling valves, which with bottle on it, to fill gas in it and then the machine begin to fill liquid. When the liquid level reaches the ration tube, it will stop filling. After closing the valve and finishing exhausting, the neck holding planet of the filling device will clamp the bottle and move down into the capping shifting wheel.
Bottle capping machine
The capping part is composed of 3 sets of screw head, capping transmission part, cap unscrambler, under cover tube and sleeving cover part. Filled-finish bottle will be conveyed to the capping position by the bottle shifting wheel. When the bottle passes the sleeving cover device, the bottle mouth can hung on the cap on the cap output part. And the cap from the sleeving cover will be sleeved on the bottle mouth, and then be planished by the tongue depressor. The cap screw head, which the torque has been adjusted on it, descends when it moves on the same straight line with the bottle, and the triplet cap ring gear will be sleeved on the bottle cap and move down.
Frequency converter: MITSUBI
Circuit breaker: DELIXI
Touch screen: WEINVIEW
Pneumatic system: Airtac
Proximity switch: Omron
Optoelectronic switch: Omron
